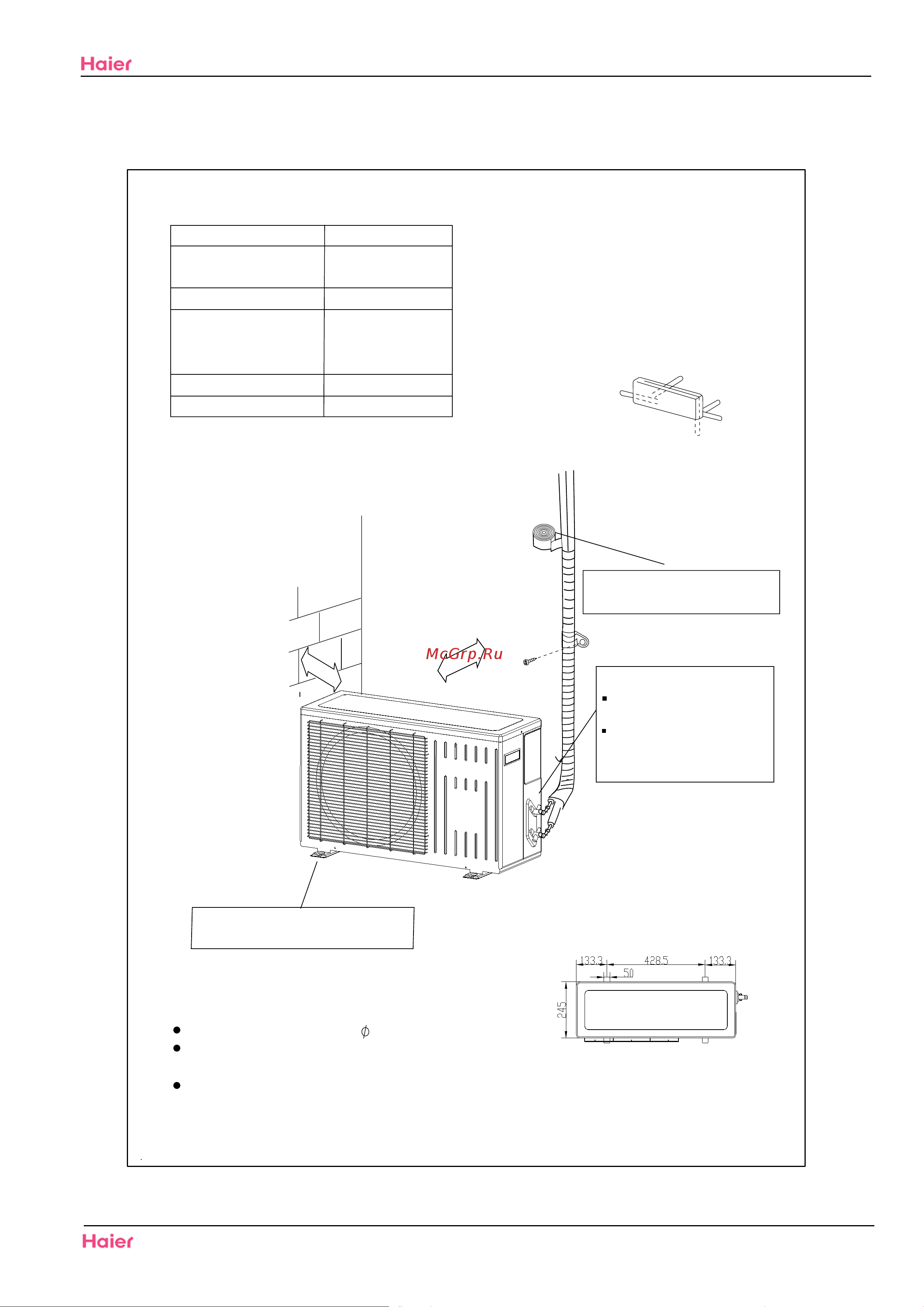

Wrap the installation pipe with the finishing
tape from bottom to top Model 25 / 35 class
Service lid
How to remove the service lid.
This service lid is an open/close type.
Slide the lid downward to remove it.
How to attach the service lid.
Insert the upper part of the service
lid into the outdoor unit to install.
Tighten the screws.
Arrangement of piping directions
Rear left
Rear
right
Left
Below
Right
Outdoor
The distance between the indoor unit and the floor should be more than 2m
Fix the unit to concrete or block with bolts( 10mm) and nuts firmly and horizontally.
When fitting the unit to wall surface, roof or rooftop, fix a supporter surely with nails
or wires in consideration of earthquake and strong wind.
If vibration may affect the house, fix the unit by attaching a vibration-proof mat.
Where there is a danger of the unit falling,
use foot bolts, or wires.
Model
26/28 class
Max.allowable length
Cooling only˖P
Heat pump˖P
Max.allowable height
15m
Additional refrigerant
required for refrigerant pipe
exceeding 5m in length
16g/m
Gas pipe
Liquid pipe
O.D. 9.52/12.7
O.D. 6.35
m
c01nah
tero
m
mc01naht
erom
Installations
24
Domestic Air Condition
HSU-07RD03 HSU-12HA03/Z1
*Be sure to add the proper amount of additional refrigerant.
Failuretodosomayresultinreducedperformance.
