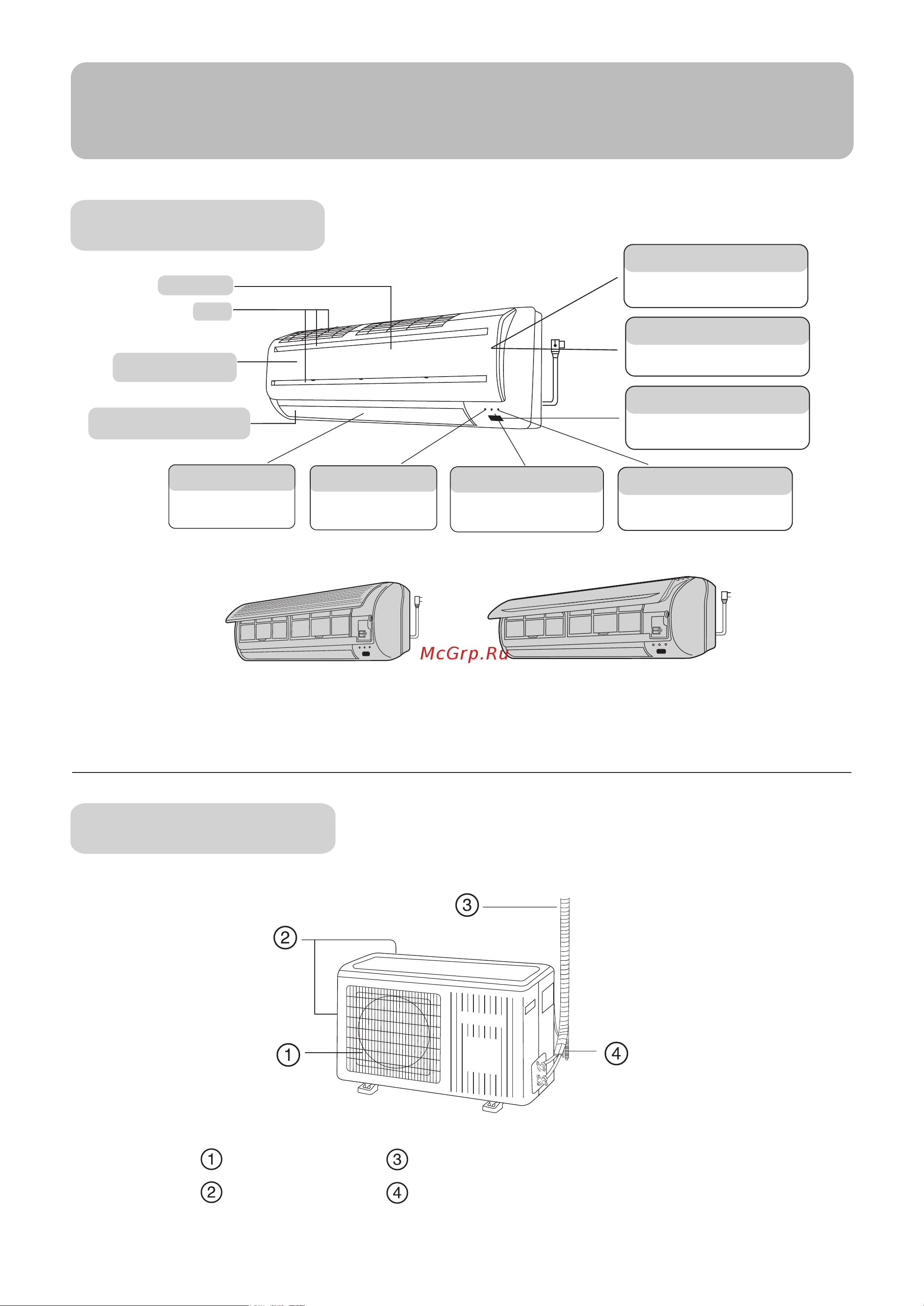

Parts and Functions
Indoor Unit
Outdoor Unit
OUTLET
INLET
CONNECTING PIPING AND ELECTRICAL WIRING
DRAIN HOSE
Test running switch(manual)
Used only for test running in cooling
when room temp. is below 16
o
C.
Don't use it in normal operation.
Use remote controller to
adjust up and down air flow.
(Don't adjust it manually.)
Inlet grille
Vertical louver
Horizontal louver(inside)
(adjust left and right air flow)
Power indicator
Lights up when unit starts.
Timer mode indicator
Lights up when Timer operation
is selected.
Operation mode indicator
Lights up during compressor
running.
Remote signal receiver
A beeping sound is generated when
a signal from remote controller is
received.
Emergency switch(manual)
Used when remote controller is lost or
defective. Unit will run temporarily.
Inlet
Air Purifying Filter
(inside)
Actual inlet grille may vary from the one shown in the manual according to
the product purchased
