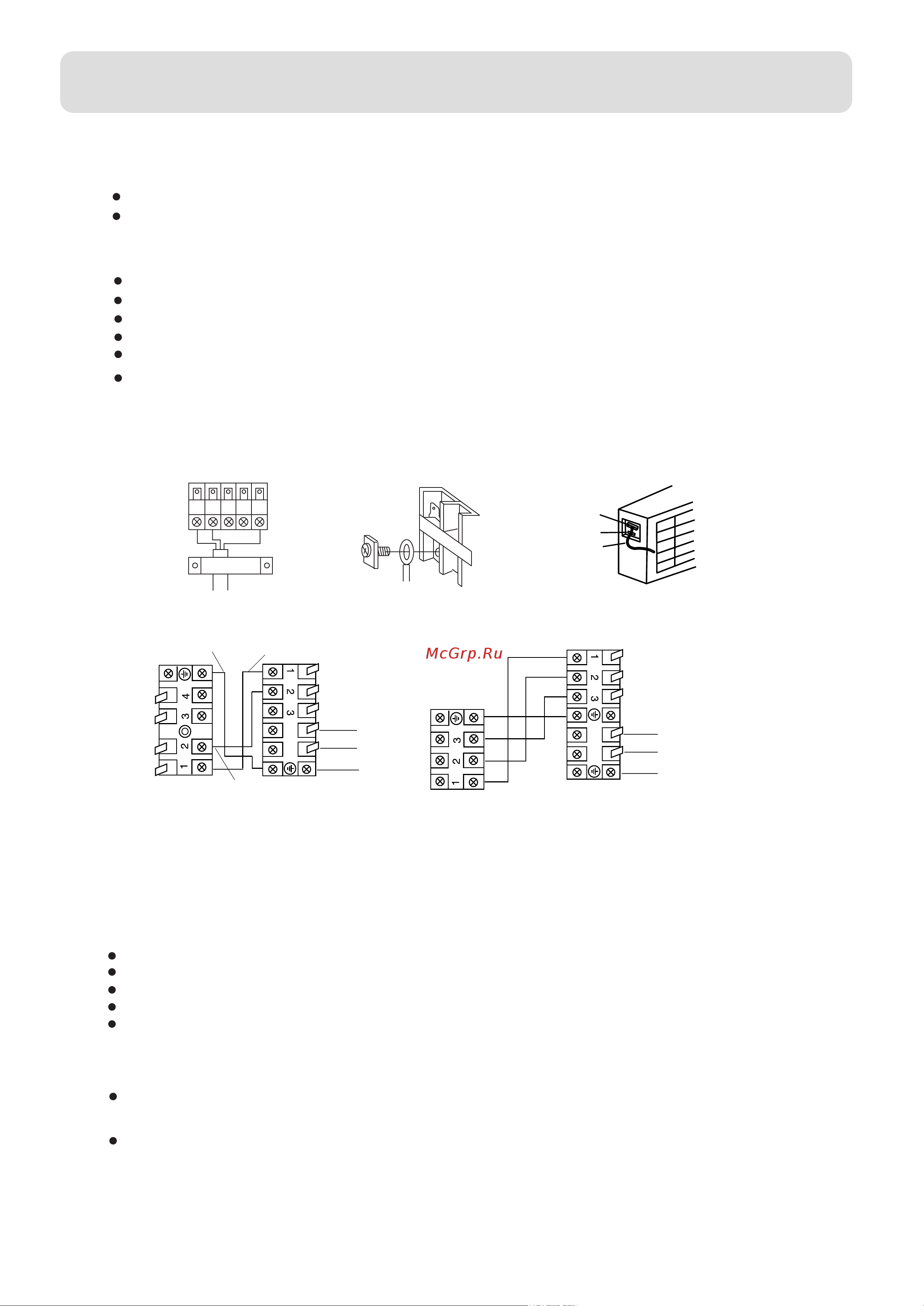

![Haier HPU-24C03/VA(ZXF) [5/6] Installation manual of room air conditioner](/views2/1807353/page5/bg5.png)
5
Installation Manual of Room Air Conditioner
1(L)
Terminal block
Wire clip
wire loop
Electric wiring
Note
Electric wiring must be done by qualified person.
Use copper wire only.
Wiring of indoor unit
Insert the cable from outside the wall hole where piping already exist.
Put it out from front.
Losen terminal screw and insert cable end fully into terminal block, then tighten it .
Pull the cable gently to make sure it is tight.
Replace cover after wiring.
The parameter of the connecting wiring:
-mod18k: 3G2.0mm
2
-mod 24k: 4G0.75mm
2
Outdoor unit
Indoor unit
WHITE
BLACK
YEL/GRN
YEL/GRN
BLU
POWER PLUG
BRN
HPU-18C03/VA(ZXF)
N L
}
HPU-24C03/VA(ZXF)
L N
YEL/GRN
BLU
POWER PLUG
BRN
}
Wiring of outdoor unit
Insert the cable from inside the wall hole where piping already exist.
Pull it out from front.
Loose terminal screw and insert cable end fully into terminal block, then tighten it.
Replace cover after wiring.
Note:
When connecting indoor and outdoor wire, check the number on indoor and outdoor terminal
blocks. Terminals of same number and same coulor shall be conneced by the same wire.
Incrrect wiring may damage air condioner's control or cause operation failure.
