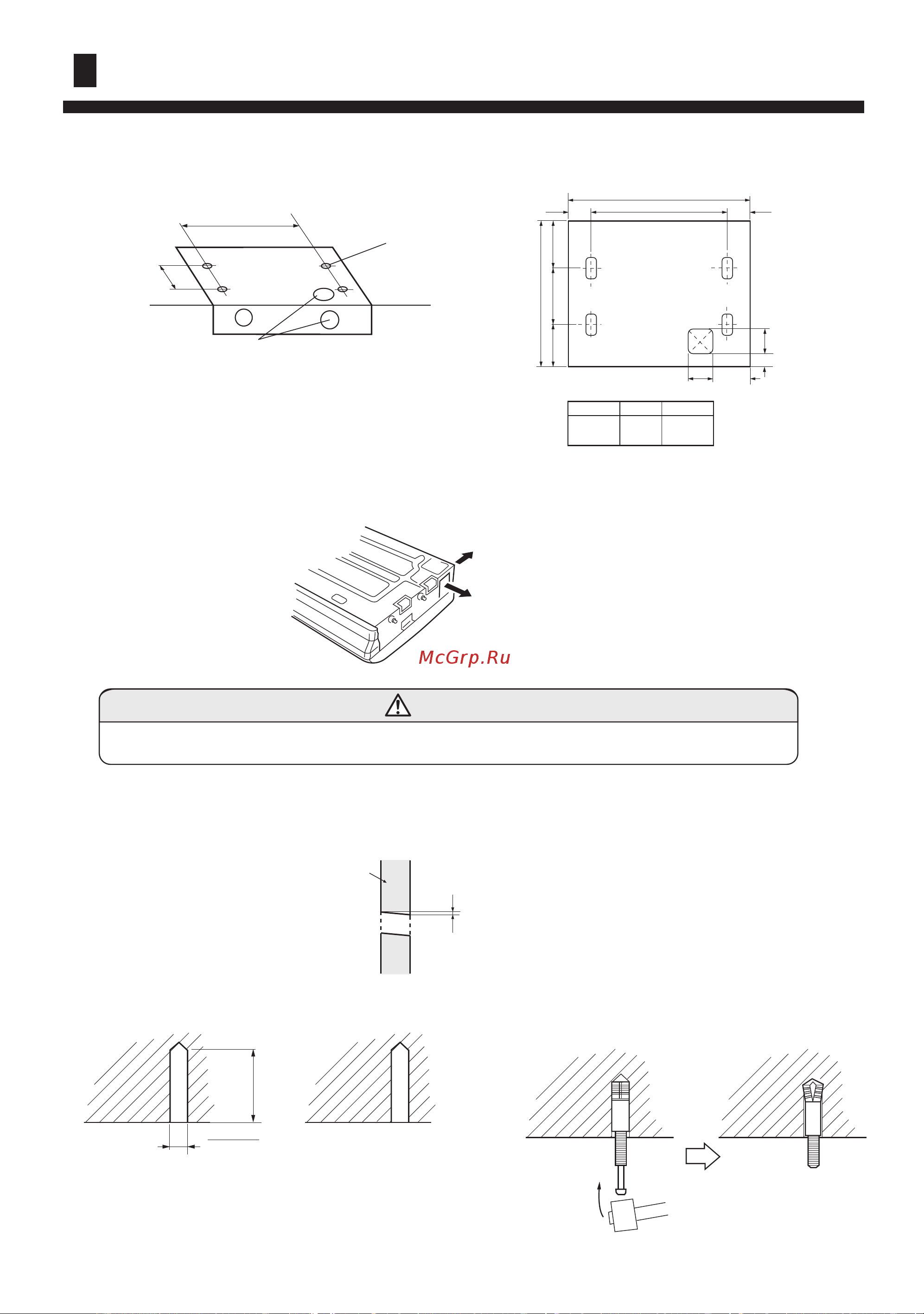

Haier HCFU-28CF03 [17/25] With a concrete drill drill four 12 mm dia holes fig 2
![Haier HCFU-28CF03 [17/25] With a concrete drill drill four 12 mm dia holes fig 2](/views2/1807720/page17/bg11.png)
Select piping and drain directions. For series 28.only rear side (Fig.11)
B. UNDER CEILING TYPE
Using the installation template, drill holes for piping and anchor bolts(for holes).(Fig.10)
1. DRILLING FOR PIPING
(Fig. 11)
(Fig. 12)
Insert the anchor bolts into the drilled holes, and drive the pins
completely into the anchor bolts with a hammer. (Fig. 13)
2. DRILLING HOLES FOR ANCHOR BOLTS AND INSTALLING THE ANCHOR BOLTS
When the directions are selected, drill 80mm and 50mm or 150mm dia. hole on the wall so that the hole is tilted
downward toward the outdoor for smooth water flow.
With a concrete drill, drill four 12.7 mm dia. Holes.(Fig.12)
Wall
6mm
Rear (Install the drain hose
in the direction.)
Right
60 to 70mm
12.7mm
(Fig. 13)
15
Install the drain hose at the rear; it should not be installed on the top or right side.
CAUTION
(Fig. 10)
Installation
template
Wall
Ceilling
Drilling position
for piping
Drilling position
for anchor bolt
For series 18
200mm
900mm
Installation of Indoor Unit
A
B
40 40
100mm
720mm
87.5mm
147mm
326mm
247mm
85
53
Series
A B
28
12401320
