![Haier HSU-22HEA03 [12/88] Printed circuit board connector wiring diagram](/img/pdf.png)
Haier HSU-22HEA03 [12/88] Printed circuit board connector wiring diagram
![Haier HSU-22HEA03 [12/88] Printed circuit board connector wiring diagram](/views2/1807962/page12/bgc.png)

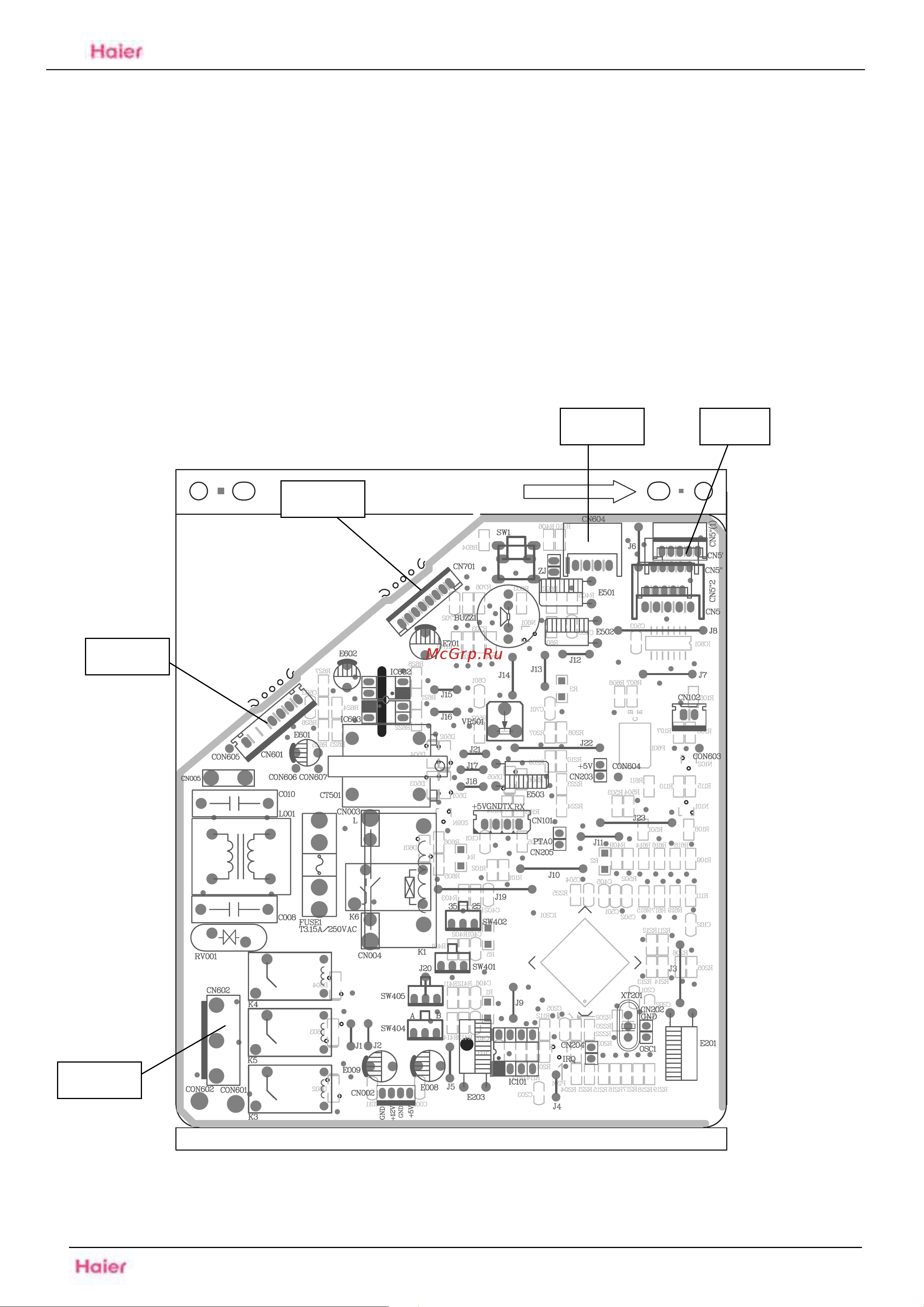

Printed Circuit Board Connector Wiring Diagram
Indoor unit
Printed circuit board connector wiring diagram
Domestic air conditioner
Connectors Indoor PCB
1)CN601 connector for DC fan motor.
2)CN602 connector for power line.
3)CN604 connector for ambient temp. sensor and piping temp.sensor.
4)CN5” connector for up and down step motor.
5)CN701 connector for receiver display.
CN604 CN5”
CN701
CN601
CN602
HSU-22L/HEA03
9
