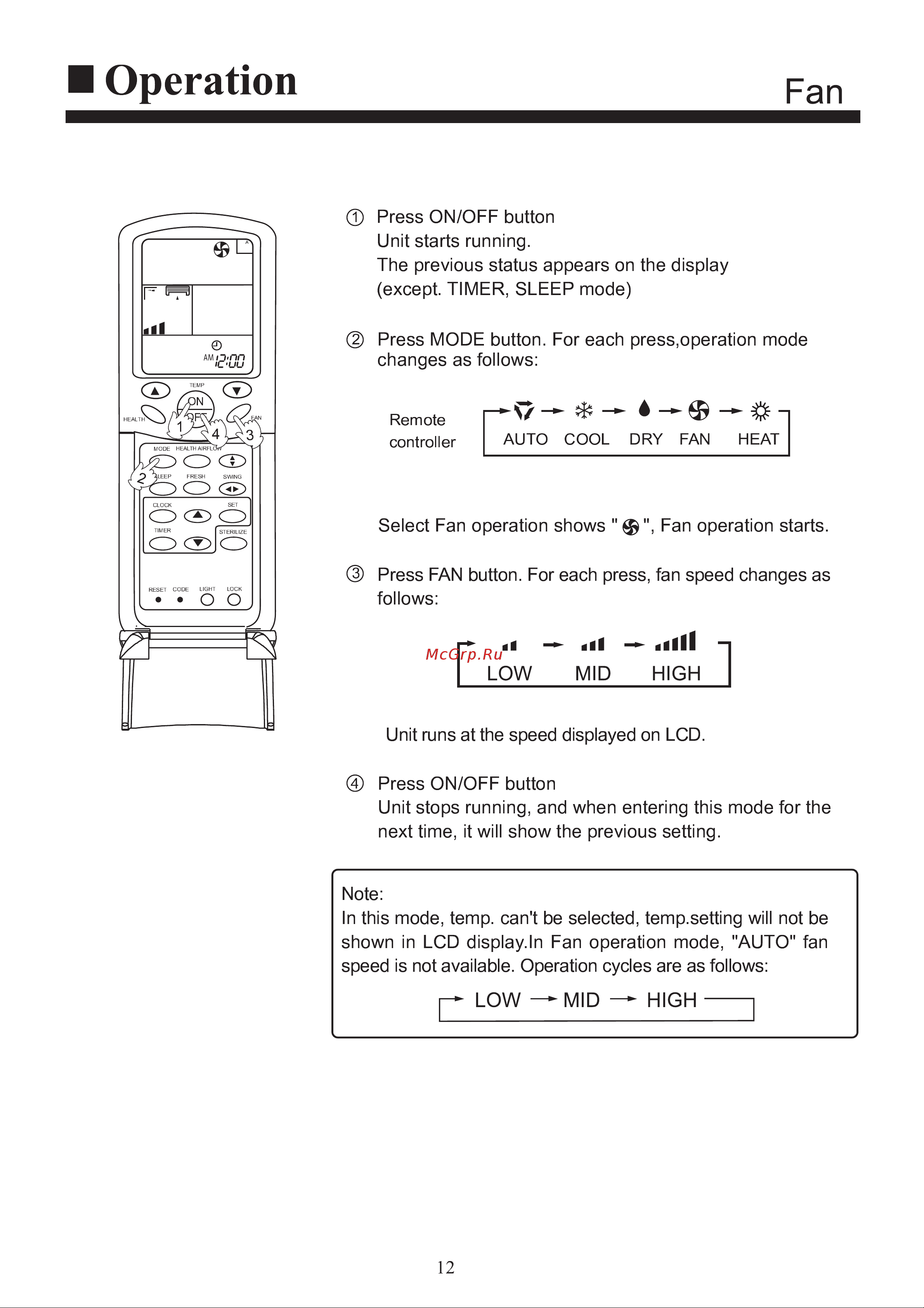

Operation Fan T Press ON OFF button Unit starts running The previous status appears on the display except TIMER SLEEP mode Press MODE button For each press operation mode changes as follows Remote controller AUTO COOL DRY FAN HEAT Select Fan operation shows Fan operation starts D Press FAN button For each press fan speed changes as follows E al all allll I LOW MID HIGH Unit runs at the speed displayed on LCD Press ON OFF button Unit stops running and when entering this mode for the next time it will show the previous setting Note In this mode temp can t be selected temp setting will not be shown in LCD display ln Fan operation mode AUTO fan speed is not available Operation cycles are as follows r LOW MID HIGH 12
