Haier HSU-18C03/U(ZXF) [19/107] Function of main thermistor

Haier HSU-12C03/U(ZXF) [19/107] Function of main thermistor

HSU-09/12H03/U(ZXF)

Domestic Air Conditioner

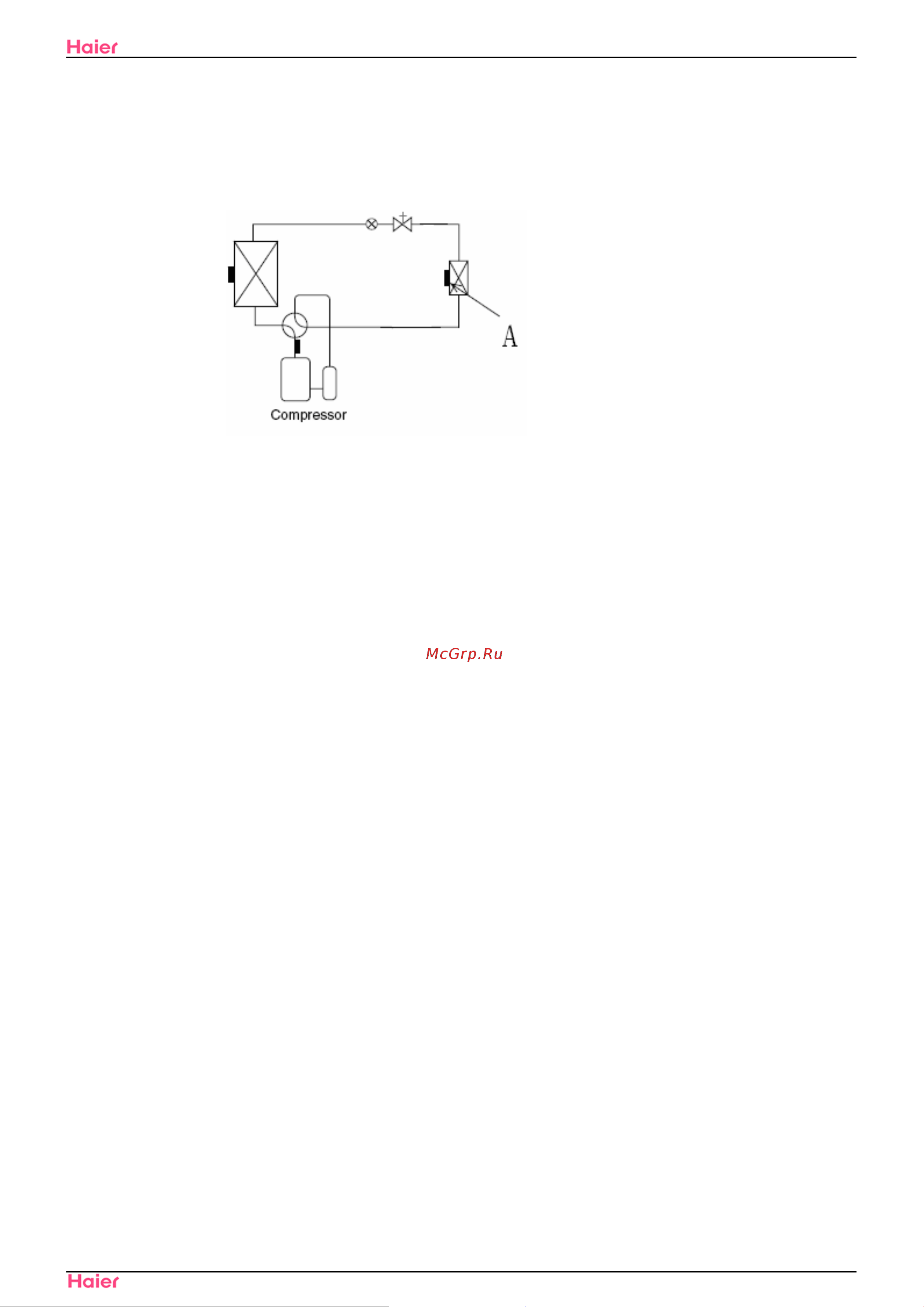

5.2 Function of Main Thermistor

Note: A: Indoor heat-exchange sensor

Indoor

heat-exchange

sensor

1.The indoor heat exchanger thermistor is used for anti-icing control .During the cooling

operation, if the heat exchanger temperature in the room where operation is halted

becomes 0°C, it is assumed as icing.

2. The indoor heat exchanger thermistor is used for preventing high temperature and

high temperature expiration protection. During the heating operation ,

When the temp. of

coil pipe is above 72ć,compressor and outdoor fan motor stop running 2 seconds later,

and inlet air runs as the temp. sensor is off
