OPERATING LAMP
PARTS AND FUNCTIONS
8

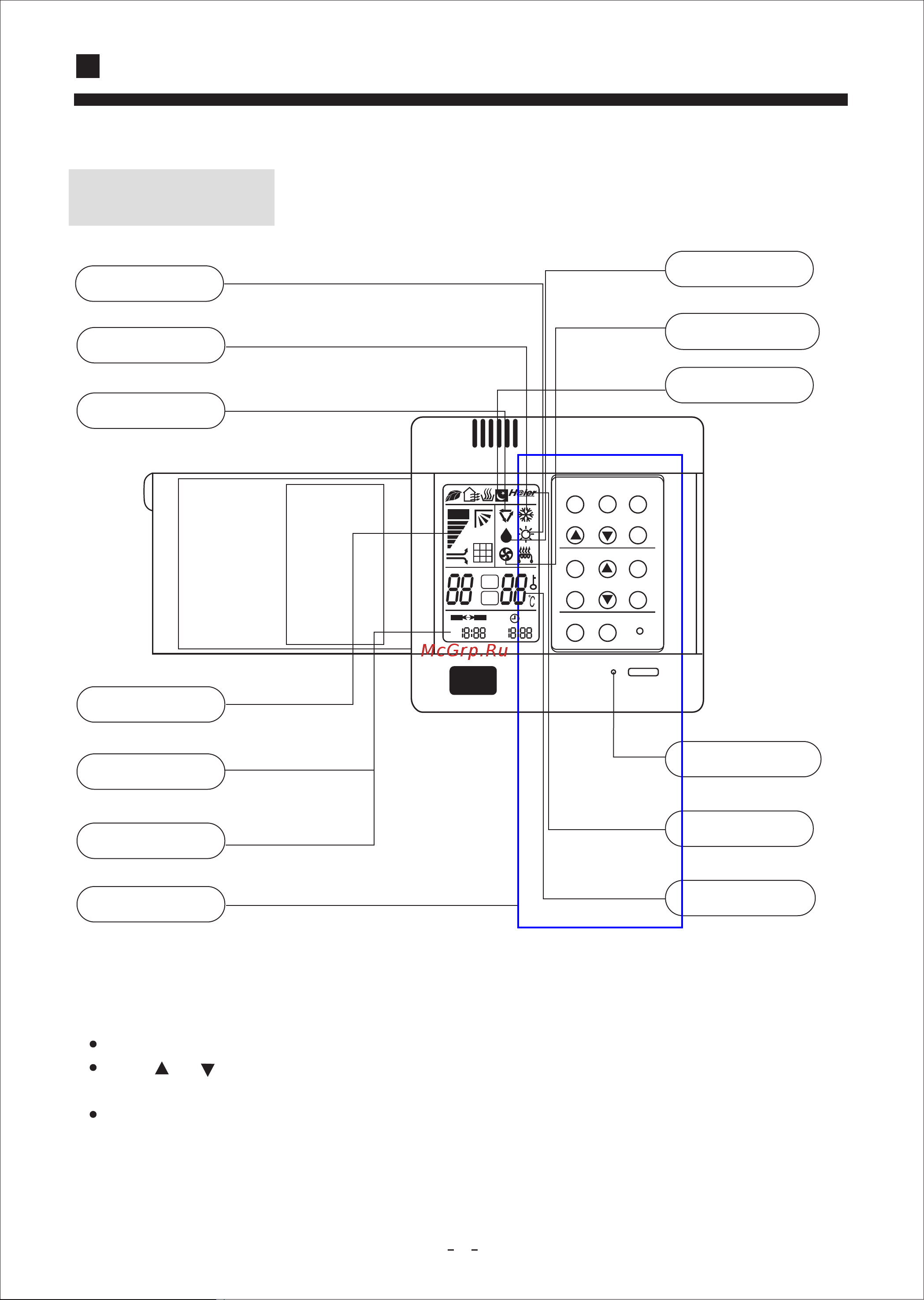

Buttons and display of the wire controller.
DRY
COOL
AUTO
FAN SPEED
SLEEP
TIMER ON
TIMER OFF
CLOCK
TEMP.
FAN OPERATION
HEAT
Clock set
When unit is started for the first time, clock should be adjusted as follows:
Press CLOCK button, "AM"or "PM" flashes.
Press or to set correct time. Each press will increase or decrease 1min. If the
button is kept depressed, time will change quickly.
After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock
starts working.
Operation
Remote control
AM
PM
AM
PM
***
AUTO
%
SET
ROOM
ON OFF
MODE
FAN SWING
TEMP
CLOCK SET
TIMER SLEEP
RESET
FILTER RESET
ON/OFF
HEALTH
HEAT
