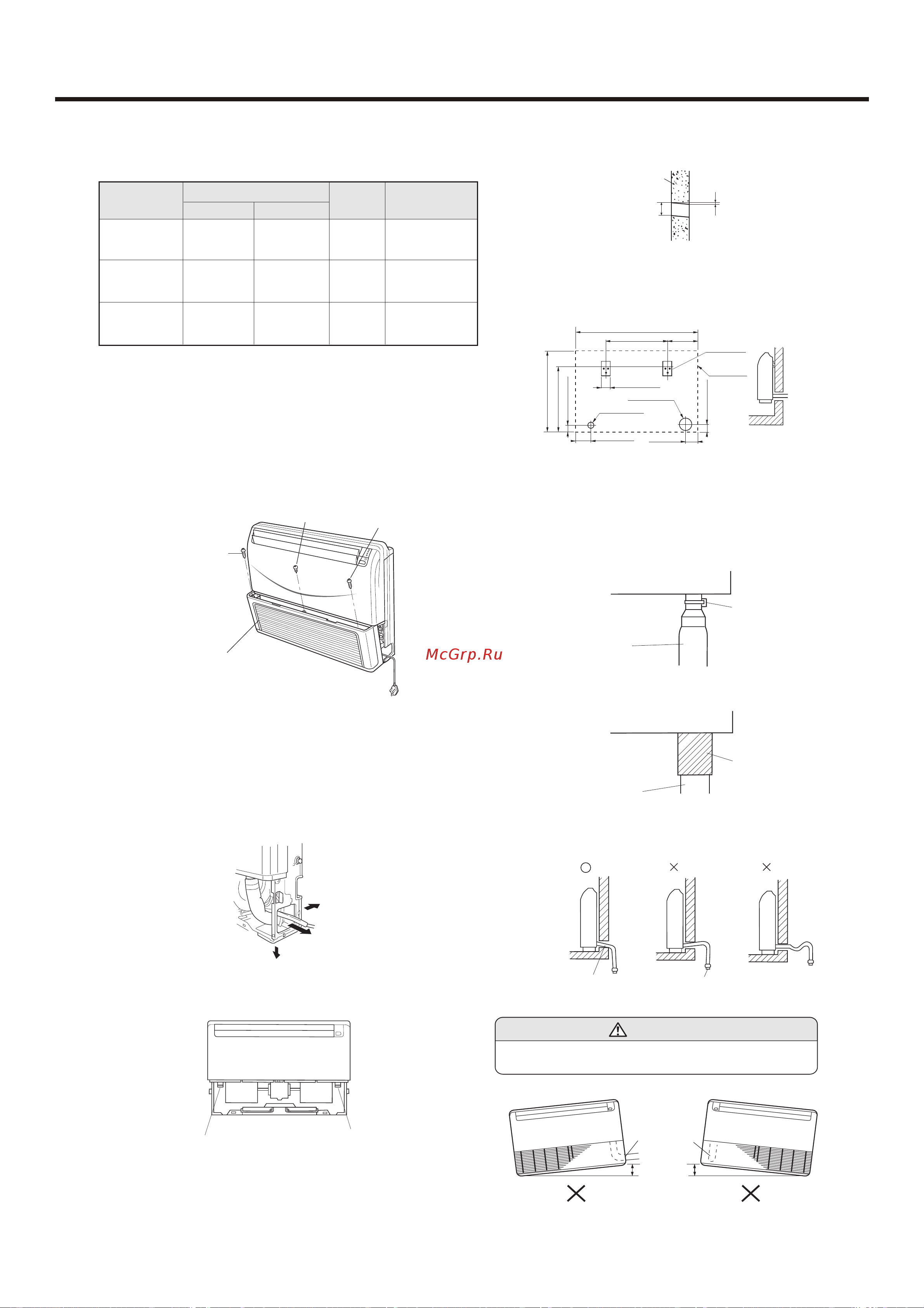

INSTALLATION PROCEDURE

PREPARING INDOOR UNIT

INSTALLATION

1. REMOVE THE INTAKE GRILL

Install the room air conditioner as follows:

Open the intake grill and remove the three or four or six screws.

(Fig. 3)

When the directions are selected, drill a 7 cm dia. hole on the wall so

that the hole is tilted downward toward the outdoor for smooth water

flow. When the pipe is led out from the rear, make a hole in Fig.6, at

the position shown.

(Fig. 5)

Drain hose (Left side) Drain hose (Right side)

CONNECTION PIPE REQUIREMENT

Table 1

Series

Diameter

Liquid side Gas side

Maximum

length

Maximum height

(between indoor

and outdoor)

14,18

6.35 mm

9.52 mm

15.88 mm

19.05mm

15 m

50 m

5 m

15 m

9.52 mm 15.88 mm

30 m

15 m

24,28

36,42

Remark: The main unit can be wired before the indoor unit is

installed. Select the most appropriate installation order.

For series 24,28,36,42 not the power plug, but 3-core connecting cable.

A. FLOOR CONSOLE TYPE (For series 36,42 no this type )

1. DRILLING FOR PIPING

Select piping and drain directions.(Fig.4) (For series 14,18)

The piping and drain can be made in three directions as shown

below.For series 24,28,36,42 can be made rear and down two

directions.

The drain hose can be connected to either the left or right side.(Fig.5)

For series 24,28,36,42 only right side.

(Fig. 4)

rear

right

down

Select whether the drain hose will be connected to the

left or right side.(for series 24,28,36,42 only the right side).(Fig.5)

Insert the drain hose into the drain pan, then secure the

drain hose with a nylon fastener. (Fig.8)

Wall

7cm

6mm

Indoor unit outdoor unit

2. INSTALLING DRAIN HOSE

(Fig. 6)

For series 14,18 when installing set to wall, install the

accessory wall bracket at the position shown in Fig.7,

and mount the set to it.

(Fig. 7)

INSTALL THE DRAIN HOSE

Wrap the insulation (drain hose) around the drain hose

connection.(Fig.9)

Drain pan

Drain hose

Nylon fastener

(Fig. 8)

(Fig. 9)

Drain pan

Drain hose

Insulation

(Drain hose)

Wall bracket

Side of set

Arrange the drain hose

lower than this portion.

Fig. 10

Be sure to arrange the drain hose correctly so that it is

leveled lower than the drain hose connecting port of the

indoor unit.

OK NO NO

Drain hose

A A

CAUTION

Do not install the unit drain hose side is too high. Height A

should be less than 5 mm.(Fig.11)

Fig. 11

Drain hose

Fig. 3

Machine screw

Tapping screw

Tapping screw

Intake grill

65.5cm

99cm

50cm

24.5cm

6.5cm

12.5cm 10cm

6.5cm

53cm

4.5cm

7cm hole

3.5cm hole

INSTALLATION INSTRUCTIONS
