Haier HSU-09RG03 [5/8] Installation instruction on the indoor part of the change for fresh air device

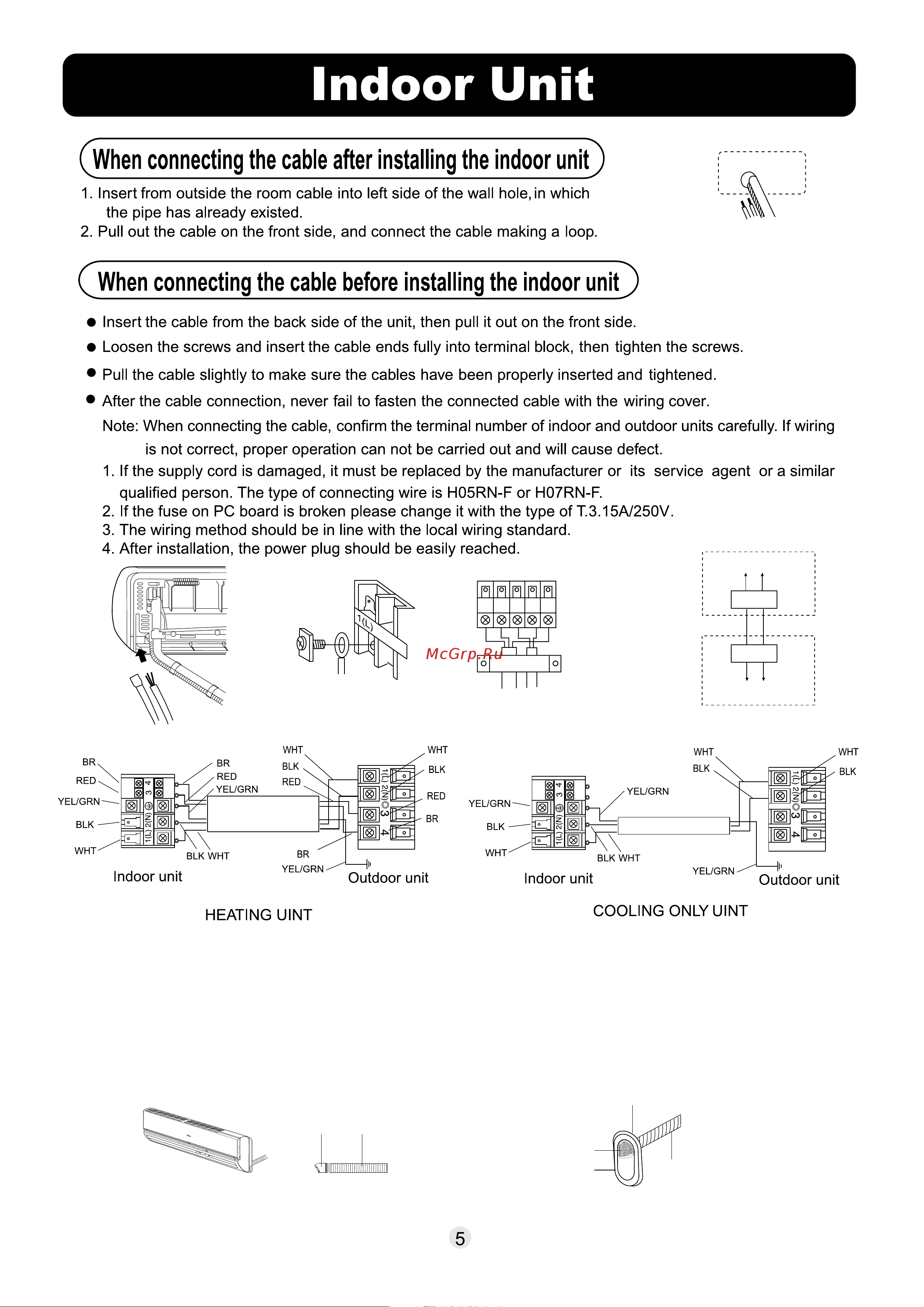

![Haier HSU-09RG03 [5/8] Installation instruction on the indoor part of the change for fresh air device](/views2/1810000/page5/bg5.png)
To indoor unit
To outdoor fresh air motor
The connecting method of
fresh air box signal wire
Outlet pipe web
Two ways for the installation of indoor part, as illustrated:
Way One:
Insert the joint of water collecting pan into the change-for-fresh-air tube, then connect the other end of joint with mesh
enclosure of water collecting pan.
Way Two:
In the guard ring, connect the change-for-fresh-air tube an outlet pipe web through outlet joint.
½¡¿µ
¶¨Ê±
ÔËÐÐ
ÖÆÀä
³ýʪ
ÖÆÈÈ
Installation way One
Joint of the
connecting pan
Change-for-fresh
-air tube
Change-for-fresh
-air tube
Outlet joint
(back,in guard ring)
Installation way Two
Guard ring
5 Installation instruction on the indoor part of the change -for -fresh -air device
