Sc&t YS04D [2/2] Panel view

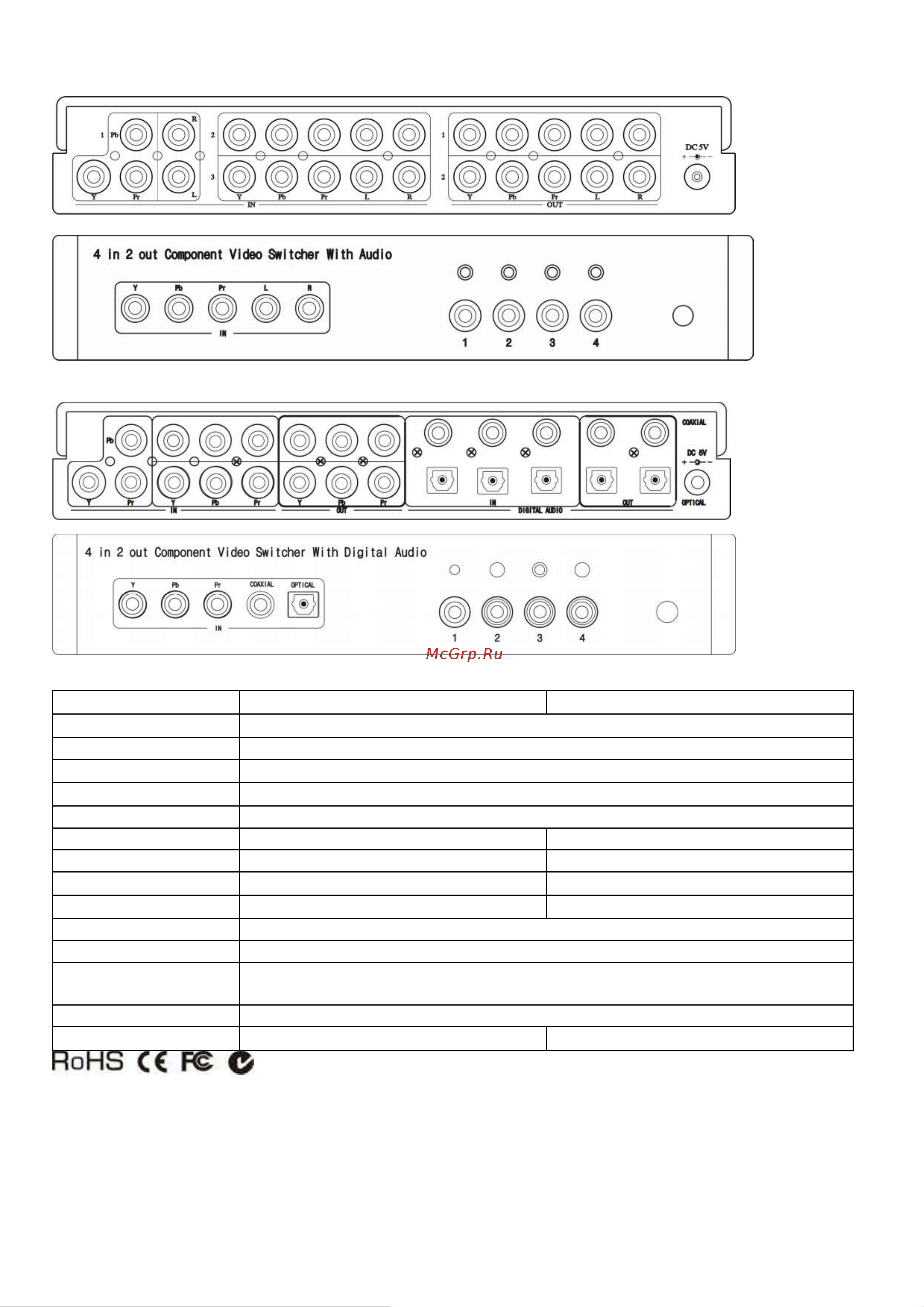

Panel View：

YS04A

YS04D

Specification:

ITEM NO.

YS04A

YS04D

Input Resolution

480i，480p，576i，576p，720p，1080i，1080p

Video Bandwidth

400Mhz

Video Input (RCA)

RCA x 12：Y (75Ω，1.0 Vp-p)，Pb Pr (75Ω，0.7 Vp-p)

Video Output (RCA)

RCA x 6：Y (75Ω，1.0 Vp-p)，Pb Pr (75Ω，0.7 Vp-p)

Audio Bandwidth

DC-20Khz

Audio Input

RCA x 8 (10KΩ) X

Audio Output

RCA x 4 (10KΩ) X

Digital Audio Input

Coaxial RCA x 4 (75Ω)，Optical x 4

Digital Audio Output

Coaxial RCA x 2 (75Ω)，Optical x 2

Power Supply

DC 5V 500mA

Power Consumption

250mA (Max)

Temperature

Operation: -40 to +55°C, Storage: -40 TO +85°C,

Humidity: up to 95%

DIMENSIONS mm

225x173x40

WEIGHTS g 908 875

Rev. B
