20

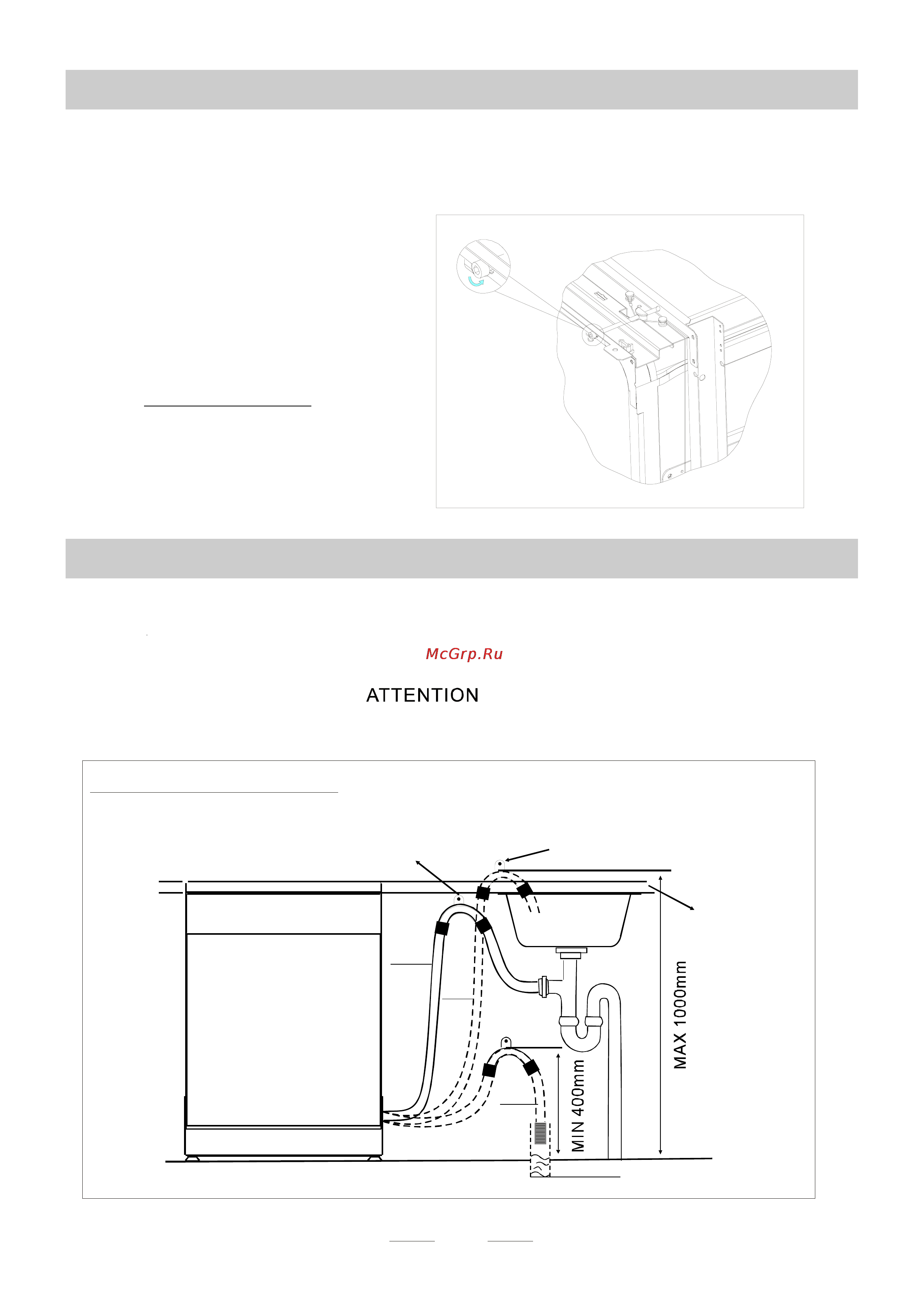

Tension adjustment of the door spring
Connection of drain hoses
Tension adjustment
of the door spring
【】
Figure5
The door springs areset atthe factoryto the proper tension for the outer door.
If a est het ic w ooden pane l a re i nstall ed, you w ill ha ve t o adj ust t he do or spr ing
tension.Rotate the adjusting screw to drive the adjustorto strain or relax the
steelcable(see figure 5).
relax
Adjust the door spring
tension until thedoor
remainsbalance in the
fully-opened position.
Insert the drain hose intoa drainpipe witha minimum diameterof 4cm, or let it
runintothesink,makingsuretoavoidbendingorcrimpingit.Usethespeical
plastic support that comes with the appliance (figure 6).
to avoid the back flow of it. : The special plastic hose support must be
solidly fastened to the wallto prevent the drain hose from moving and allowing water
to spill outsidethedrain.
Thetopof the hosemust be at
a height between 40 and 100cm. The freeend of the hose must not be immersed in
water
Drainpipe connection
【】
Figure6
φ 40mm
A
B
C
Counter
Front
Drain pipe
Drain hose hook
Close the drain hose hook to the c ounter
NOTE
The top of the hose
must be at a height
between
40 and 100cm.
The free end of the
hose must not be
immersed in water.
