- Ductless split air conditioner 1
- Installation manual 1
- Table of cont ents 1
- English 2
- Introduction 2
- Nomenclature 2
- Page 2 2
- U 18 lc 2 v h a 2
- English 3
- Introduction page3 3
- System specifications 3
- English 4
- Page 4 introduction 4
- Read these safety precautions 4
- Safety overview 4
- English 5
- Important safety related installation information 5
- Introduction pages 5
- Read these safety precautions 5
- Safety overview 5
- Attaching drain elbow to outdoor unit 7
- Electrical connections for the outdoor unit 7
- Installation page 7 7
- Piping 7
- Section a outdoor unit installation 7
- Step 1 installation of the outdoor unit 7
- Step 2 interconnecting the indoor and outdoor units 7
- Leak test 8
- Page 8 installation 8
- Step 3 leak test and evacuation 8
- System evacuation 8
- English section a 9
- Installation page 9 9
- Check items for test run 10
- Hsh9n3 vnoi193s 10
- Page 10 installation 10
- Refrigerant charge label 10
- Step 4 charging 10
- System test 10
- English section a 11
- Installation page 11 11
- Section 5 explaining operation to the end user 11
- Section 6 seacoast application 11
- Clearances of indoor and outdoor units 13
- English section b 13
- Installation page 13 13
- Procedure for selecting the location 13
- Required tools for installation 13
- Section b indoor unit installation wall mount 13
- Step 1 preparation 13
- Attaching the mounting plate to the wall 14
- Page 14 installation 14
- Section b english 14
- Step 2 installation of wall mount type indoor unit 14
- Electrical connections for the indoor unit 15
- English section b 15
- Indoor wall unit installation complete 15
- Installation page 15 15
- Mounting the indoor unit onto the wall plate 15
- Built in condensate the motorized louver is controlled via the remote control the louver has indicat or lights that communicate function and diagnostic information to the user and service technician 17
- Cassette indoor unit specifications 17
- Cassette product information 17
- English section c 17
- Factory supplied remote see section f for more information 17
- Included with the cassette unit is factory provided insulating tape this tape should be placed over the refrigerant piping connections at the indoor unit to prevent sweating 17
- Installation page 17 17
- Introduction overview 17
- Optional fresh air can be piped into the cassette assembly the knockout is located on the side of the cassette assembly if fresh air is desired be certain to filter the air prior to it entering the cassette a 4 galvanized pipe should be used to pipe in the fresh air 17
- Pump and float switch 17
- Section c indoor unit installation cassette 17
- The cassette indoor air handler ships consists of a cassette assembly and operational louver the cassette indoor unit is operated via a factory supplied remote control wired controller is optional 17
- The cassette unit has a built in condensate pump and associated float switch that manages the operation of the condensate pump a flexible hose is included with the cassette unit this hose connects the cassette condensate drain outlet to the buildings condensate drain system 17
- The cassette unit receives 230 volt line voltage from a connection at the outdoor condensing unit there is no requirement for independent line voltage connections 17
- The cassette unit will install between standard dropped ceiling grids it is mounted using threaded rods that fit into brackets that are located at all four corners of the cassette assembly 17
- C english 18
- Introduction overview 18
- Page 18 installation 18
- Zzzzzzzzzzzzzzzzzzz zzzzzz zzzzzzzz 18
- 3 8 threaded rods 4 mounting brackets 8 washers 8 nuts double nut the assembly as shown 19
- English section c 19
- Installation page 19 19
- Required tools for installation procedure for selecting the location 19
- Secure the washer firmly 19
- Step 1 preparation 19
- The cassette unit should be mounted to the building structure using threaded rods the threaded rods should have washers and nuts to allow the height and level of the cassette to be adjusted 19
- The threaded rods and attachment brackets are field supplied items the materials required for mounting to the brackets on the cassette assembly include 19
- Threaded rod mounting information 19
- Hsh9n3 onoi133s 20
- Page 20 installation 20
- Step 2 installation of the cassette unit 20
- Step by step guide to cassette installation 20
- English section c 21
- Installation page 21 21
- Step 2 installation of the cassette unit 21
- Hsh9n3 onoi133s 22
- Indoor cassette unit installation complete 22
- Page 22 installation 22
- Step 3 electrical connections 22
- Step 4 louver installation 22
- Step 5 pull vacuum on system 22
- Built in 23
- Condensate 23
- English section d 23
- Included with the slim duct unit is factory pr ovided insulating tape this tape should be placed voer the refrigerant piping connections at the indoor unit to prevent sweating 23
- Installation page 23 23
- Introduction overview 23
- Pump and float switch 23
- Section d indoor unit installation slim duct 23
- Slim duct indoor unit specifications 23
- Slim duct product information 23
- The slim duct indoor air handler ships consisting of a single assembly the slim duct indoor unit is operated via a factory supplied wired remote control 23
- The slim duct unit has a built in condensate pump and associated float switch that manages the operation of the condensate pump a flexible hose is included with the slim duct unit this hose connects the slim duct condensate drain outlet to the building s condensate drain s ystem 23
- The slim duct unit receives 230 volt line voltage from a connection at the outdoor condensing unit there is no requirement for independent line voltage connections 23
- The slim duct unit will install above the ceiling or in a soffit area it is mounted using threaded rods that fit into brackets that are located at all four corners of the slim duct assembly 23
- Yr e17 wired controller see section e for more information 23
- Drainage hose 24
- In below 3 5 ft suspending bracket 24
- In clip 24
- In under 24
- Introduction overview 24
- Lifting pipe 24
- Page 24 installation 24
- Section d english 24
- Water drainage 24
- 3 8 threaded rods 4 mounting brackets washers nuts double nut the assembly as shown in step 2 25
- English section d 25
- Installation page 25 25
- Required tools for installation procedure for selecting the location 25
- Square wood 25
- Step 1 preparation 25
- Suspension screw 25
- The slim duct unit should be mounted to the building structure using threaded rods the threaded rods should have washers and nuts to allow the height and level of the slim duct unit to be adjusted 25
- The threaded rods and attachment brackets are field supplied items the materials required for mounting to the brackets on the slim duct unit include 25
- Threaded rod mounting information 25
- Page 26 installation 26
- Section d english 26
- Step 2 installation of the slim duct unit 26
- Step by step guide to slim duct unit installation 26
- Bottom side air inlet 27
- Diffuser 27
- English section d 27
- Installation page 27 27
- Return duct 27
- Step 2 installation of the slim duct unit 27
- Indoor slim duct unit installation complete 28
- Page 28 installation 28
- Section d english 28
- Step 3 electrical connections 28
- Step 4 pull vacuum on system 28
- S88 88 29
- Section e wired controller yr e17 29
- Communication wiring 30
- Page 30 installation 30
- Sectione english 30
- Step by step guide to slim duct unit installation 30
- Wired controller installation 30
- Wired controller wiring instructions 30
- Dimensions 31
- English section e 31
- Installation page 31 31
- Wired controller installation 31
- Wired controller wiring instructions 31
- Clock function 32
- Error code display 32
- Initialization 32
- Installation 32
- Mode setting 32
- Page 32 32
- Screen saving 32
- Section e english 32
- Settings functions 32
- Switching between fahrenheit celsius 32
- Wired controller operation 32
- Eco energy saving function timer function setting 33
- Eco parameter setting 33
- English section e 33
- Installation page 33 33
- Settings functions 33
- Static pressure grade inquiry adjustment 33
- Wired controller operation 33
- Child lock function 34
- Left right up down swing forced cooling heating 34
- Parameter inquiry 34
- Settings functions 34
- Temperature compensation setting 34
- Unit number setting 34
- Wired controller operation 34
- English section e 35
- Heat reclaim ventilation 35
- Installation page 35 35
- Settings functions 35
- Sleep function other functions 35
- Wired controller operation 35
- Auto button 37
- Cool button 37
- Dry button 37
- Fan button 37
- Functions 37
- Installation page 37 37
- Power button 37
- Q heat button 37
- Section f wireless remote controller 37
- Temperature buttons 37
- Turbo quiet button 37
- Vnoi1d3s hsi19n3 37
- Ill lo 38
- Wireless remote controller operation 38
- _________ e3 38
- English section a 39
- Installation page 39 39
- Q extra function button 39
- Sleep button 39
- Wireless remote controller operation 39
- Confirm cancel button 40
- Health button________________________________ 40
- Hsh9n3 vnoi193s 40
- Light button 40
- Lock button 40
- Page 40 installation 40
- Reset button 40
- Wireless remote controller operation 40
- Www haier com 42
Похожие устройства
- Haier AB18SC2VHA Руководство по монтажу
- Haier 1U12LC2VHA Спецификация
- Haier 1U12LC2VHA Инструкция по монтажу
- Haier 1U18LC2VHA Спецификация
- Haier 1U18LC2VHA Инструкция по монтажу
- Haier AS09SH1ERA Инструкция по эксплуатации
- Haier AS09SH1ERA Сервис мануал
- Haier AS12SH1ERA Инструкция по эксплуатации
- Haier AS12SH1ERA Сервис мануал
- Haier 1U09EH1ERA Инструкция по эксплуатации
- Haier 1U09EH1ERA Сервис мануал
- Haier 1U12EH1ERA Инструкция по эксплуатации
- Haier 1U12EH1ERA Сервис мануал
- Haier 1U25S2SQ1FA Инструкция по монтажу
- Tesler PSS-555 Прошивка
- AIC AC913B Инструкция по эксплуатации
- AIC AC913W Инструкция по эксплуатации
- AIC CF6318 Инструкция по эксплуатации
- AIC E300A Инструкция по эксплуатации
- AIC AC690 Инструкция по эксплуатации

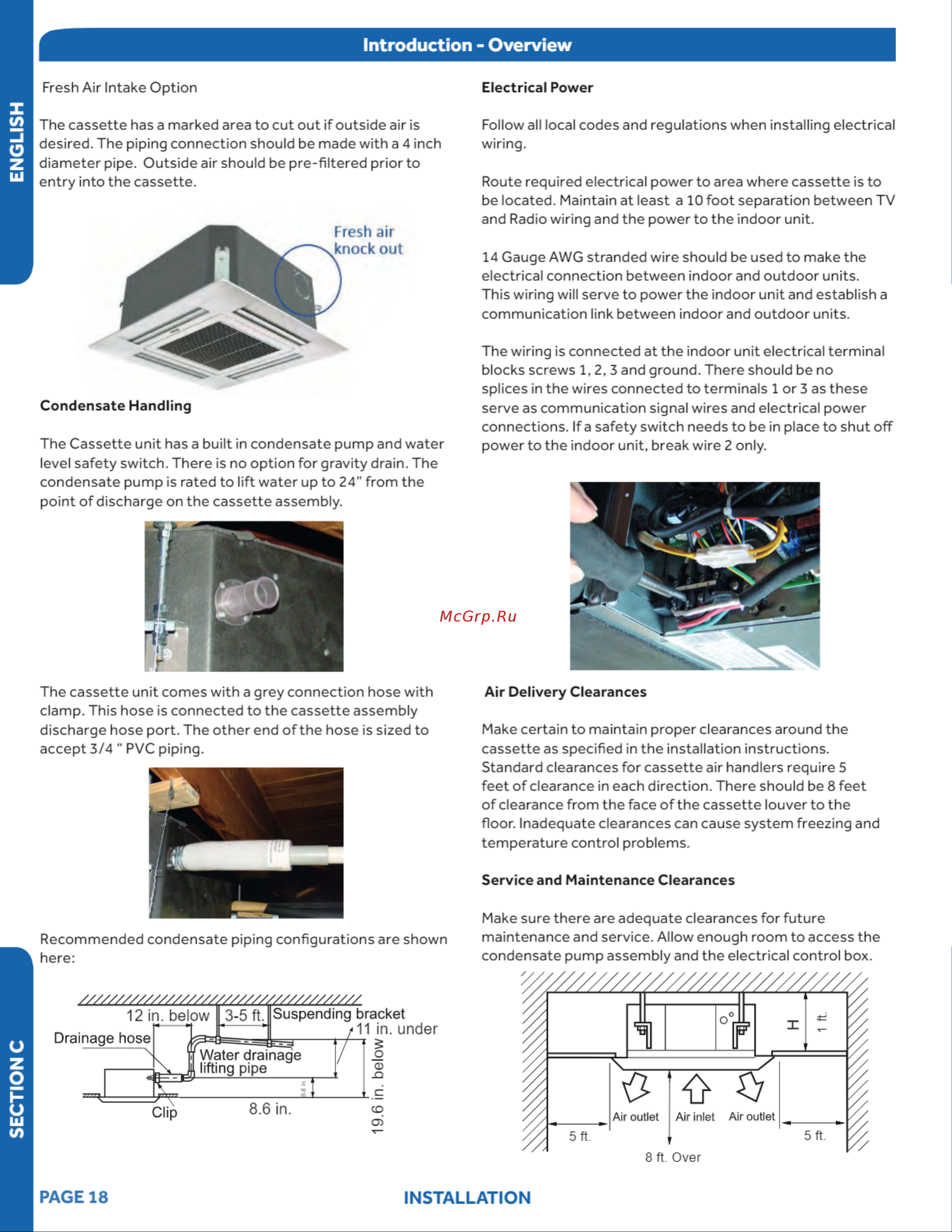

ENGLISH Introduction Overview Fresh Air Intake Option Electrical Power The cassette has a marked area to cut out if outside air is desired The piping connection should be made with a 4 inch diameter pipe Outside air should be pre filtered prior to entry into the cassette Follow all local codes and regulations when installing electrical wiring Fresh air knock out Route required electrical power to area where cassette is to be located Maintain at least a 10 foot separation between TV and Radio wiring and the power to the indoor unit 14 Gauge AWG stranded wire should be used to make the electrical connection between indoor and outdoor units This wiring will serve to power the indoor unit and establish a communication link between indoor and outdoor units Condensate Handling The Cassette unit has a built in condensate pump and water level safety switch There is no option for gravity drain The condensate pump is rated to lift water up to 24 from the point of discharge on the cassette assembly The cassette unit comes with a grey connection hose with clamp This hose is connected to the cassette assembly discharge hose port The other end ofthe hose is sized to accept 3 4 PVC piping The wiring is connected at the indoor unit electrical terminal blocks screws 1 2 3 and ground There should be no splices in the wires connected to terminals 1 or 3 as these serve as communication signal wires and electrical power connections If a safety switch needs to be in place to shut off power to the indoor unit break wire 2 only Air Delivery Clearances Make certain to maintain proper clearances around the cassette as specified in the installation instructions Standard clearances for cassette air handlers require 5 feet of clearance in each direction There should be 8 feet of clearance from the face ofthe cassette louver to the floor Inadequate clearances can cause system freezing and temperature control problems Service and Maintenance Clearances Recommended condensate piping configurations are shown here Make sure there are adequate clearances for future maintenance and service Allow enough room to access the condensate pump assembly and the electrical control box C ZZZZZZZZZZZZZZZZZZZ ZZZZZZ ZZZZZZZZ 12 in below 3 5 ft Suspending bracket 11 in under Drainage hose If Water drainage lifting pipe Clip PAGE 18 8 6 in INSTALLATION
