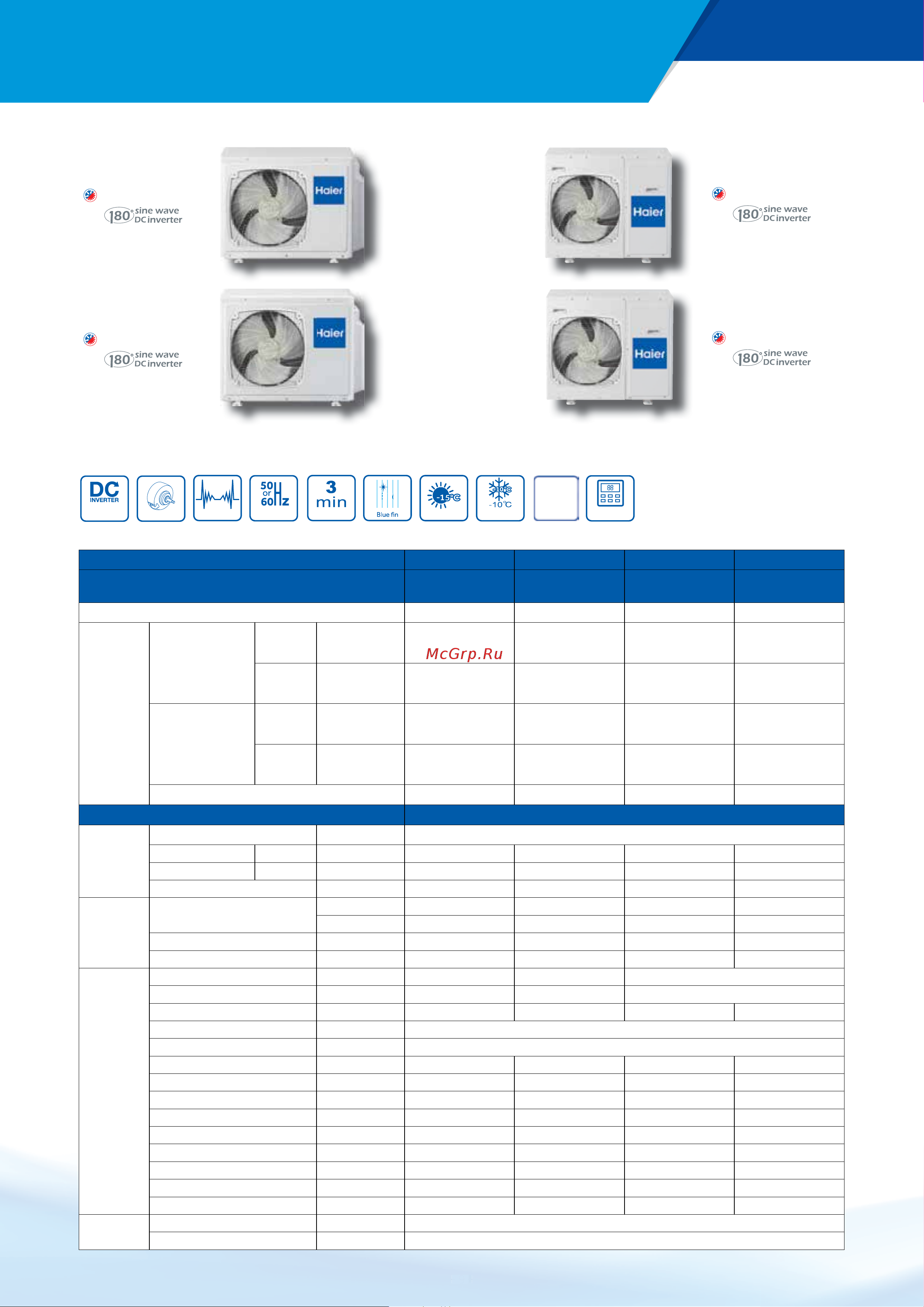

Haier AD18MS1ERA [9/24] Outdoor units
![Haier AD18MS1ERA [9/24] Outdoor units](/views2/1812979/page9/bg9.png)
- 9 -
- 9 -
3U24GS2ERA
3U19FS2ERA
4U30HS2ERA
5U34HS2ERA
Model/outdoor unit 3U19FS2ERA 3U24GS2ERA 4U30HS2ERA 5U34HS2ERA
Indoor unit combinations 3*AS07NS3HRA 3*AS09NS3HRA
3*AS07NS3HRA+
1*AS09NS3HRA
4*AS09NS3HRA
Maximum connected quantity of indoor units 3 3 4 5
Nominal
Performance
Data
Capacity
Cooling
kW rated
(min-max)
5.4
(1.5 - 7.0)
6.9
(1.5 - 8.2)
8.2
(1.5 - 9.8)
9.1
(1.5 - 11.0)
Heating
kW rated
(min-max)
6.2
(1.8 - 8.1)
7.0
(1.8 - 9.0)
9.6
(1.8 - 10.5)
10.2
(1.8 - 11.5)
Rated power input
Cooling
kW rated
(min~max)
1.46
(0.5 - 2.6)
1.92
(0.55 - 3.1)
2.25
(0.55 - 3.8)
2.6
(0.55 - 4)
Heating
kW rated
(min~max)
1.65
(0.5 - 2.6)
1.87
(0.55 - 3.1)
2.55
(0.55 - 3.8)
2.83
(0.55 - 4)
EER/COP 3.7/3.75 3.6/3.74 3.65/3.76 3.5/3.6
Outdoor unit
Electrical
Power supply Ph/V/Hz 1/220~240/50/60
Running Current Cooling Amp 6.3 8.4 9.8 11.3
Running Current Heating Amp 7.2 8.1 11.1 12.3
Maximum Current Amp 11.3 13.5 16.5 17.4
Performance
Air fl ow
m
3
/h 2000 2500 3500 4000
l/s 555 690 970 1110
Sound power level (H/M/L) dB(A) 65 67 70 70
Sound pressure level (H/M/L) dB(A) 52 54 56 58
Installation
External dimensions (W/D/H) mm 886/288/688 940/345/730 948/340/840
Shipping dimensions (W/D/H) mm 992/408/760 1005/423/815 1040/440/1000
Net/Shipping weight kg 51/ 53 53/56 76/87 77/88
Compressor type Twin Rotary
Refrigerant type R410A
Refrigerant liquid pipe mm 3×6.35 3×6.35 4×6.35 5×6.35
Refrigerant gas pipe mm 3×9.52 3×9.52 3×9.52+1×12.7 4×9.52+1×12.7
Total pipe length (Max) m 50 60 70 80
Single pipe length (Max) m 25 25 25 25
Max height between I.U. & O.U m 15 15 15 15
Max height between I.U.& I.U m 5 5 5 5
Refrigerant pre-charge kg 1.9 1.9 3.2 3.4
Pre-charge length m 30 30 40 40
Additional refrigerant charge g/m 20 20 20 20
Working
temp.
Cooling(Min-Max) °C -10 to +46
Heating(Min-Max) °C -15 to +24
3 minutes
protection
180° sine wave DC motor
Wide voltage
Blue
B
u
e
Widely
electricity Hz
-15°C heating
DRED
Self-diagnosis
function
Low ambient
cooling at -10°C
OUTDOOR UNITS
