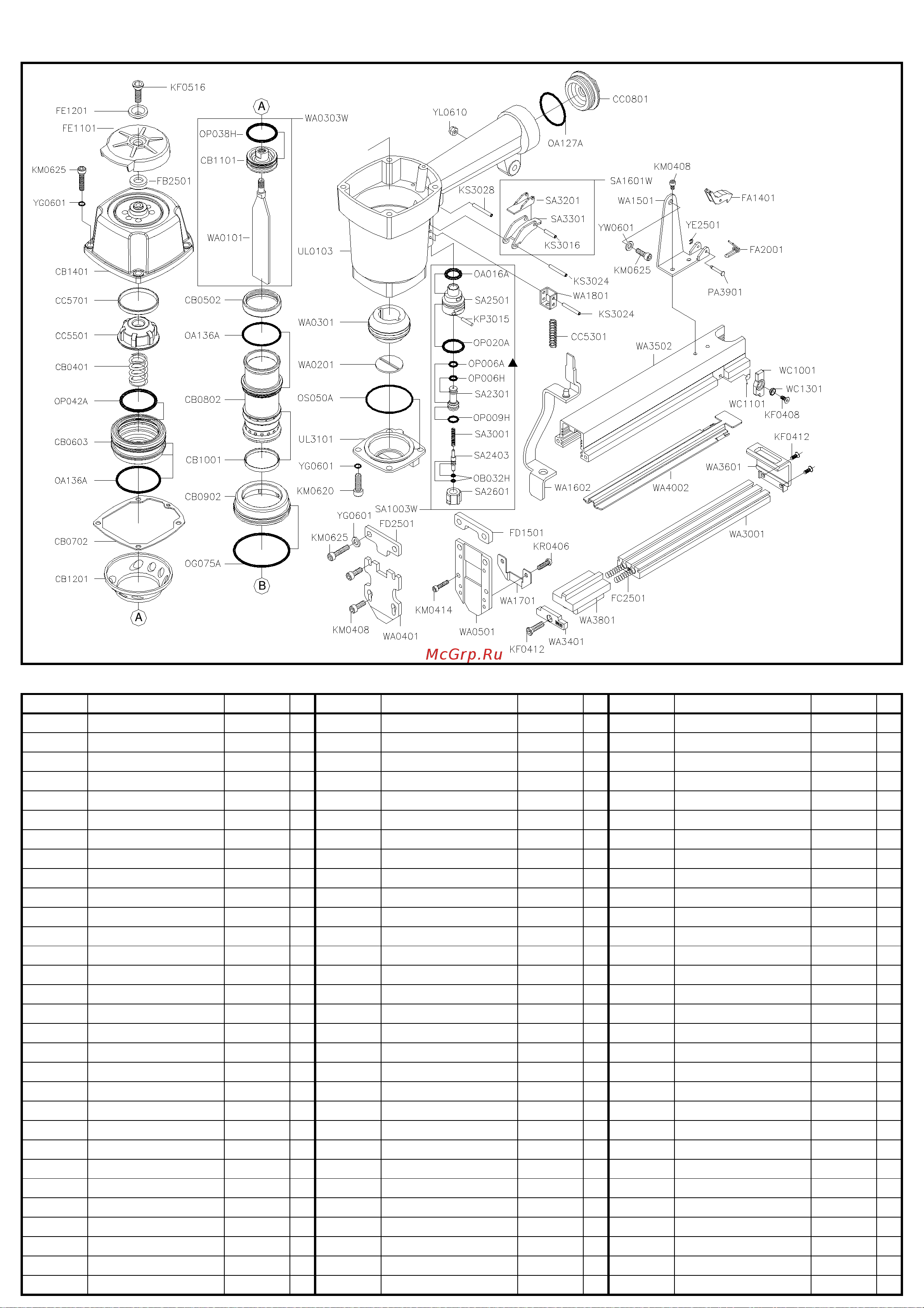

Trusty CF-15BN Взрыв_схема онлайн

Description Spec Q'ty Description Spec Q'ty Description Spec Q'ty

CB0401 COMPRESSION SPRING 1 KR0406 BUTTON HD.BOLT

M4×0.7－6L

2 WA0301 BUMPER 1

CB0502 CYLINDER RING 1 KS3016 SPRING PIN

∮3-16L

1 WA0303W DRIVER ASSY. 1

CB0603 HEAD VALVE PISTON 1 KS3024 SPRING PIN

∮3-24L

3 WA0401 COVER PLATE(B) 1

CB0702 CAP SEAL 1 KS3028 SPRING PIN

∮3-28L

1 WA0501 GUIDE PLATE 1

CB0802 CYLINDER 1 OA016A O-RING ARP568-016 1 WA1501 SUPPORT 1

CB0902 CYLINDER RING 1 OA127A O-RING ARP568-127 1 WA1602 SAFETY 1

CB1001 CHECK SEAL 1 OA136A O-RING ARP568-136 3 WA1701 SAFETY GUIDE 1

CB1101 MAIN PISTON 1 OB032H O-RING 2.5×1.4 2 WA1801 SAFETY GUIDE 1

CB1201 COLLAR 1 OG075A O-RING G75 1 WA3001 MAGAZINE SEAT 1

CB1401 CYLINDER CAP 1

▲

OP006A O-RING P6 1 WA3401 FRONT PLATE 1

CC0801 END CAP 1

▲

OP006H O-RING 5.8×1.9 1 WA3502 MAGAZINE CAP 1

CC5301 COMPRESSION SPRING 1 OP009H O-RING 8.8×1.9 1 WA3601 STOP PLATE 1

CC5501 PISTON STOP 1 OP020A O-RING P20 1 WA3801 PUSHER 1

CC5701 SPACER 1 OP038H O-RING 37.7×3.5 1 WA4002 ADJUSTMENT RAIL 1

FA1401 LATCH 1 OP042A O-RING P42 1 WC1001 PUSHER STOP 1

FA2001 SPRING 1 OS050A O-RING S-50 1 WC1101 SPRING 1

FB2501 PISTON STOP 1 PA3901 PIN 1 WC1301 SCREW SEAT 1

FC2501 PUSHER SPRING 2 SA1003W RESTRICTIVE TRIGGER ASSY 1 YE2501 E-RING

∮2.5

FD1501 SPACER 1 SA1601W TRIGGER ASSY. 1 YG0601 SPRING WASHER

∮6

FD2501 COVER PLATE(A) 1 SA2301 PILOT VALVE 1 YL0610 LOCK NUT M6×1.0 1

FE1101 EXHAUST CAP 1 SA2403 TRIGGER VALVE STEM 1 YW0601 FLAT WASHER

∮6

FE1201 EXHAUST CAP RING 1 SA2501 TRIGGER VALVE SEAT 1 #N/A #N/A 0

KF0408 FLAT HD.BOLT

M4×0.7－8L

1 SA2601 TRIGGER VALVE SEAT 1 #N/A #N/A 0

KF0412 FLAT HD.BOLT

M4×0.7－12L

3 SA3001 COMPRESSION SPRING 1 #N/A #N/A 0

KF0516 FLAT HD.BOLT

M5×0.8－16L

1 SA3201 CONTACT LEVER 1 #N/A #N/A 0

KM0408 HEX.SOC.HD.BOLT

M4×0.7－8L

6 SA3301 TRIGGER 1 #N/A #N/A 0

KM0414 HEX.SOC.HD.BOLT

M4×0.7－14L

2 UL0103 BODY 1 #N/A #N/A 0

KM0620 HEX.SOC.HD.BOLT

M6×1.0－20L

4 UL3101 SIDE PLATE(L.H.) 1 #N/A #N/A 0

KM0625 HEX.SOC.HD.BOLT

M6×1.0－25L

7 WA0101 DRIVER 1 #N/A #N/A 0

KP3015 PARALLEL PIN

∮3×15L

2 WA0201 NOZZLE 1 #N/A #N/A 0

CF-15SN (WA/S2-15)

Part_No Part_No Part_No
