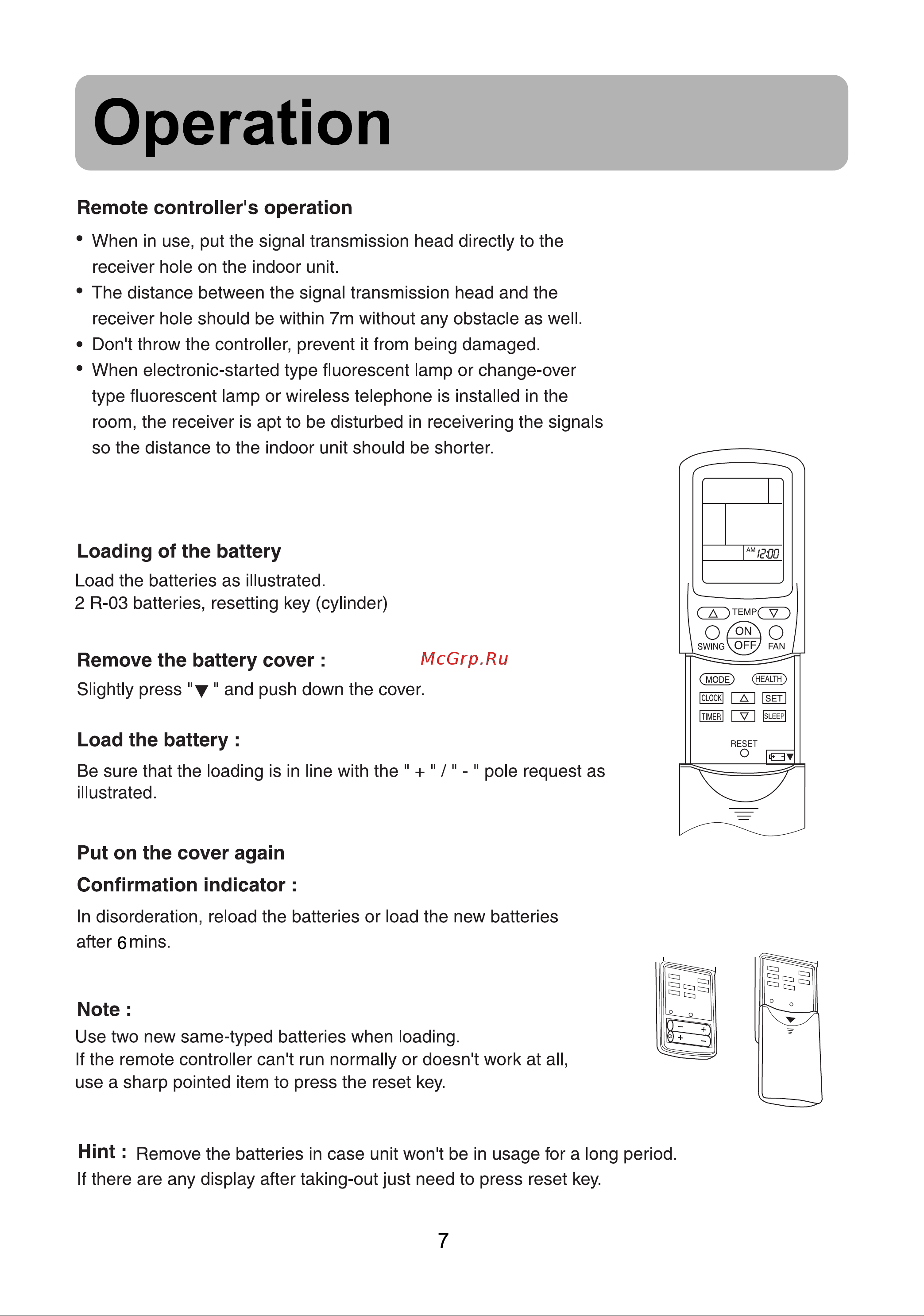

Operation Remote controller s operation When in use put the signal transmission head directly to the receiver hole on the indoor unit The distance between the signal transmission head and the receiver hole should be within 7m without any obstacle as well Don t throw the controller prevent it from being damaged When electronic started type fluorescent lamp or change over type fluorescent lamp or wireless telephone is installed in the room the receiver is apt to be disturbed in receivering the signals so the distance to the indoor unit should be shorter Loading of the battery Load the batteries as illustrated 2 R 03 batteries resetting key cylinder Remove the battery cover Slightly press and push down the cover Load the battery Be sure that the loading is in line with the illustrated pole request as Put on the cover again Confirmation indicator In disorderation reload the batteries or load the new batteries after 6 mins Note Use two new same typed batteries when loading If the remote controller can t run normally or doesn t work at all use a sharp pointed item to press the reset key Hint Remove the batteries in case unit won t be in usage for a long period If there are any display after taking out just need to press reset key 7
