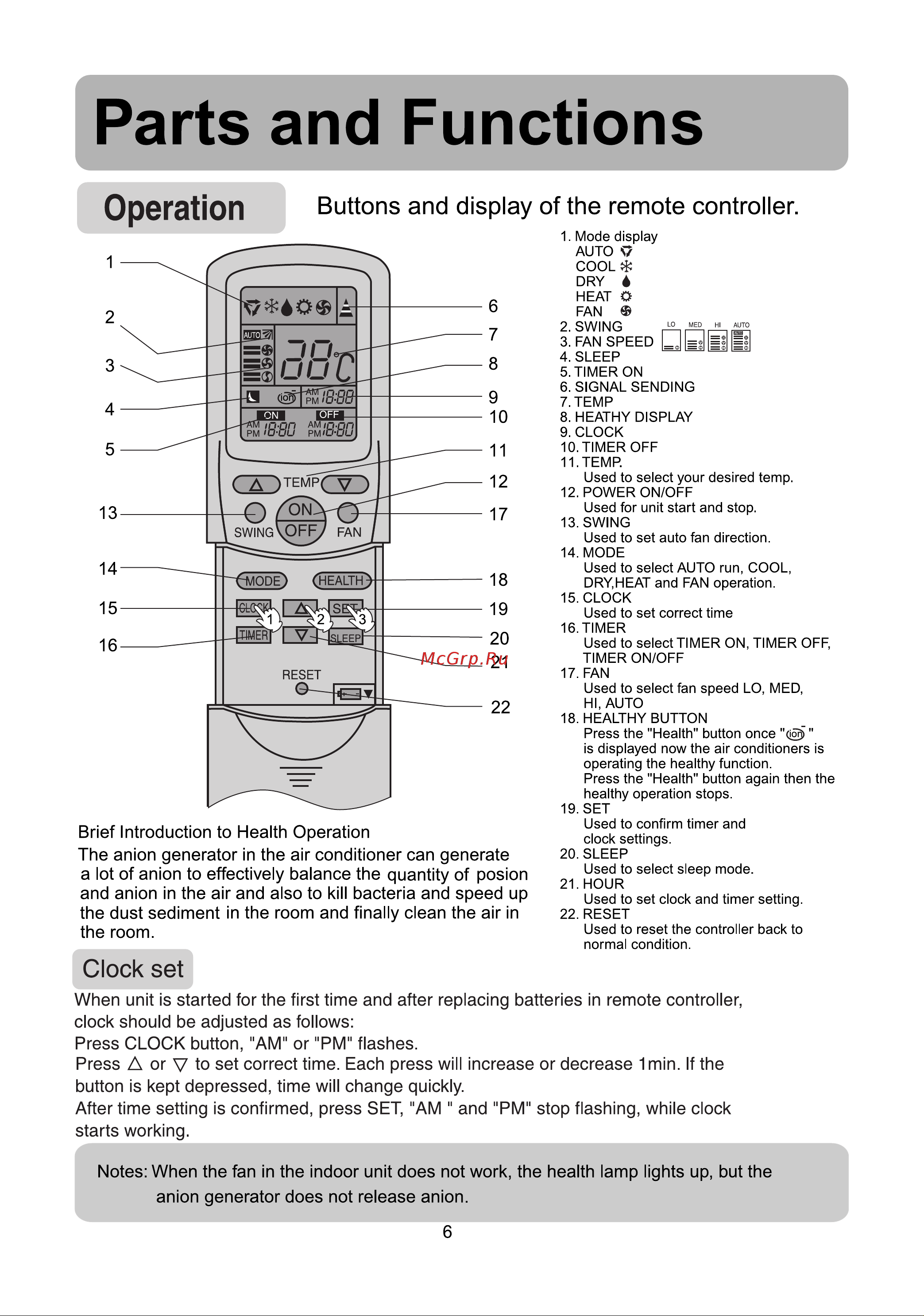

Parts and Functions Buttons and display of the remote controller Operation 6 2 7 3 8 4 9 10 5 11 12 13 17 FAN SWING kOFF 18 IEALTH 15 19 31 8 16 20 21 RESET 22 Brief Introduction to Health Operation The anion generator in the air conditioner can generate a lot of anion to effectively balance the quantity of posion and anion in the air and also to kill bacteria and speed up the dust sediment in the room and finally clean the air in the room 1 Mode display AUTO S7 COOL DRY A HEAT O FAN LO KO 2 SWING æ 3 FAN SPEED QEE 4 SLEEP 5 TIMER ON 6 SIGNAL SENDING 7 TEMP 8 HEATHY DISPLAY 9 CLOCK 10 TIMER OFF 11 TEMP Used to select your desired temp 12 POWER ON OFF Used for unit start and stop 13 SWING Used to set auto fan direction 14 MODE Used to select AUTO run COOL DRY HEAT and FAN operation 15 CLOCK Used to set correct time 16 TIMER Used to select TIMER ON TIMER OFF TIMER ON OFF 17 FAN Used to select fan speed LO MED HI AUTO 18 HEALTHY BUTTON Press the Health button once is displayed now the air conditioners is operating the healthy function Press the Health button again then the healthy operation stops 19 SET Used to confirm timer and clock settings 20 SLEEP Used to select sleep mode 21 HOUR Used to set clock and timer setting 22 RESET Used to reset the controller back to normal condition Clock set When unit is started for the first time and after replacing batteries in remote controller clock should be adjusted as follows Press CLOCK button AM or PM flashes Press A or v to set correct time Each press will increase or decrease 1min If the button is kept depressed time will change quickly After time setting is confirmed press SET AM and PM stop flashing while clock starts working Notes When the fan in the indoor unit does not work the health lamp lights up but the anion generator does not release anion 6
