Small Hints:
Remove the batteries in case the unit won't be in use for a long period.
The remote controller will be self-checked after loading the new batteries by displaying
all the symbols and resume working very soon.
8
Operat
i
on
Health Operation
1. After turning on the air conditioner, set to the desired mode:
2. Set Healthy Operation:
3. Cancel Healthy Operation:
Notes:
Brief Introduction to Health Operation
The remote controller displays the mode selected, the power
light on the indoor unit lights up.
Press the Health button once is displayed and
the power or healthy operation indicator turns from orange
color to green.
Now the air conditioner is operating the healthy function,
meanwhile the anion generator in the indoor unit begins to
release anion to clean the air and eliminate dust.
Press the button Health again to stop the health
display, then the healthy operation stops.
When the fan in the indoor unit does not work, the health
lamp lights up, but the anion generator does not release
anion.
The anion generator in the air conditioner can generate a lot of
anion to effectively balance the quantity of posion and anion in
the air and also to kill bacteria and speed up the dust sediment
in the room and finally clean the air in the room.
POWER
3
1
ion
C
FAN
HEALTH
TIMER
TEMP
ON/OFF
MODE
RESET
SWING
ion
2

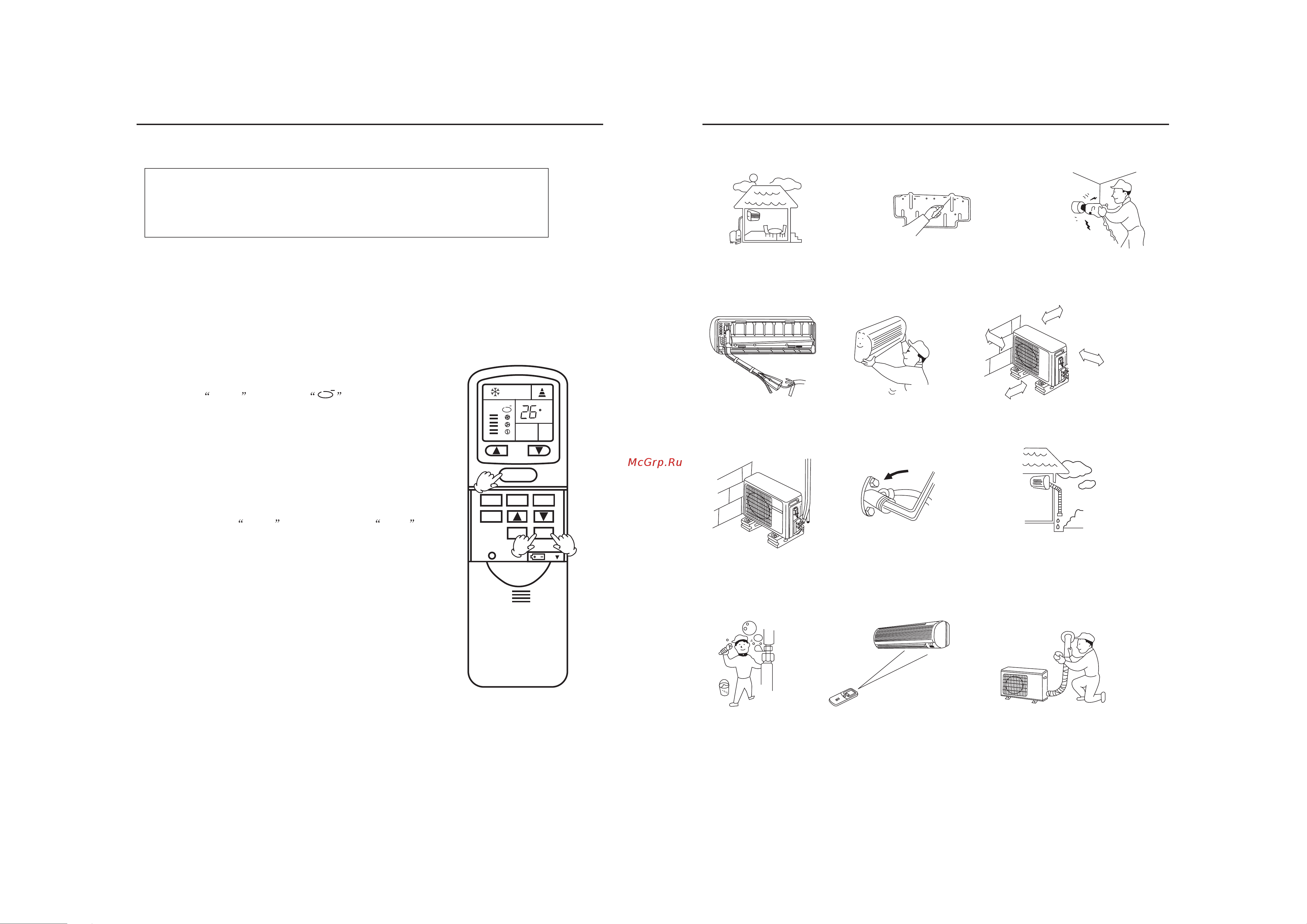

1. Installation Localization 2. Indo r Unit Mounting Plate Localization 3. Drill through Wallo
4. Connect Indoor Unit 5. Install Indo r Unit 6. Install Outdoor Unito
7. Connect Outdoo Unit 8. Drain Out 9. Check Drainager
10. Check Installation 11. Trial Operation 12. Wind up Pipes
The step 4 and step 5 above can be adjusted according to the practical situation.
This procedure is a reference to the installation person and customer, it can be adjusted according
to the practical situation.
2
5
Installat
i
on
