ACCESSORY
ASSEMBLING THE WHEEL KIT (optional)
(The Same Usage for E35, E40, E50, E57)

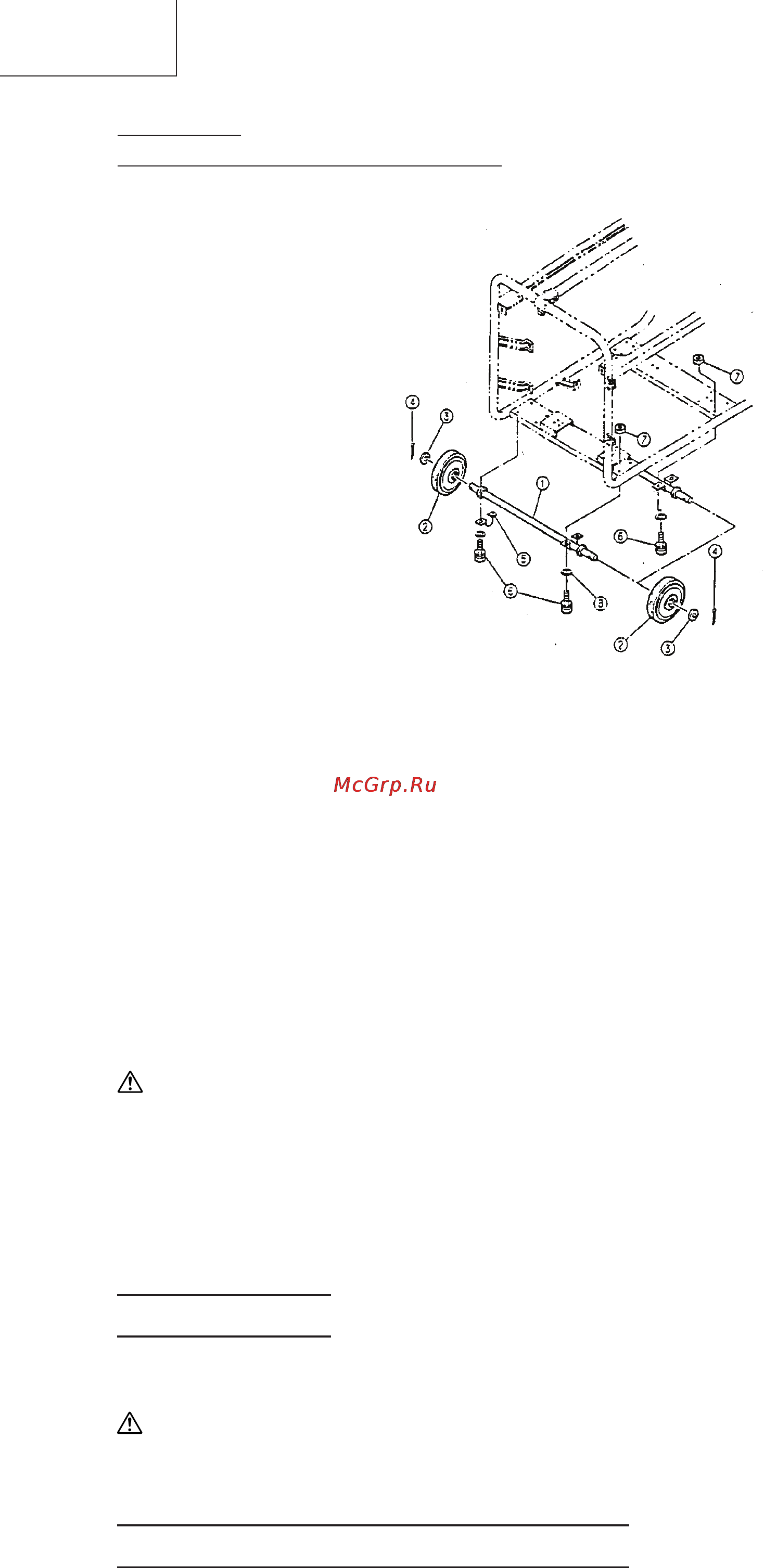

Assembly Procedures
1. Drain the oil by removing the oil drain plug.
2. Drain the gasoline by removing the cup of fuel cock.
3. Attach the wheels 2 to the wheel-shaft 1
4. Insert the split-pin 4 into the hole that is on the wheel-shaft 1, after putting in the washer 3 to the wheel-shaft,
for the prevention of detaching the wheels 2 from the wheel-shaft 1.
5. Prepare 2 sets of the above wheel-shaft assembly.
6. Attach the wheel-shaft assembly to the frame-base, making use of the brackets 5, the bolts 6, washers 8 and
nuts 7.
7. Finally, attach the above 2 wheel-shaft assemblies to the front and rear of the frame-base.
CAUTION: For your safety, don’t fail to fix the wheels with wheel brakes for the prevention of moving.
Don’t operate the generator set at an inclined foundation.
Parts Number: KY90076DA
APPLICATIONS
Power source of electric appliances and tools.
WARNING: HITACHI electronic controlled products should not be used with portable generators.
Irregular generator power could cause these products to fail.
Regarding other manufacturer's products, please contact the manufacturer to see if it is
safe to use the electronic controlled products with portable generators.
PREPARATION BEFORE OPERATION
Before starting the generator, check the oil and fuel levels. Be sure that the air cleaner is functioning. Follow the
guidelines below when adding oil and fuel.
