10
HDMI Connection
About HDMI
HDMI (High Definition Multimedia Interface) supports
both video and audio on a single digital connection for
an easy all- digital output to an HDMI or DI-equipped TV.
Connection to an HDMI TV requires an HDMI cable
while connection to a DVI-equipped TV requires a DVI
adapter besides a HDMI cable.
HDMI has the capability to support standard,
enhanced, or high-definition video plus standard to
multi-channel surround-sound audio, HDMI features
include uncompressed digital video, a bandwidth of up
to 5 gigabytes per second, one connector (instead of
several cables and connector), and communication
between the AV source and AV devices such as DTVs.
HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of
HDMI licensing LLC.

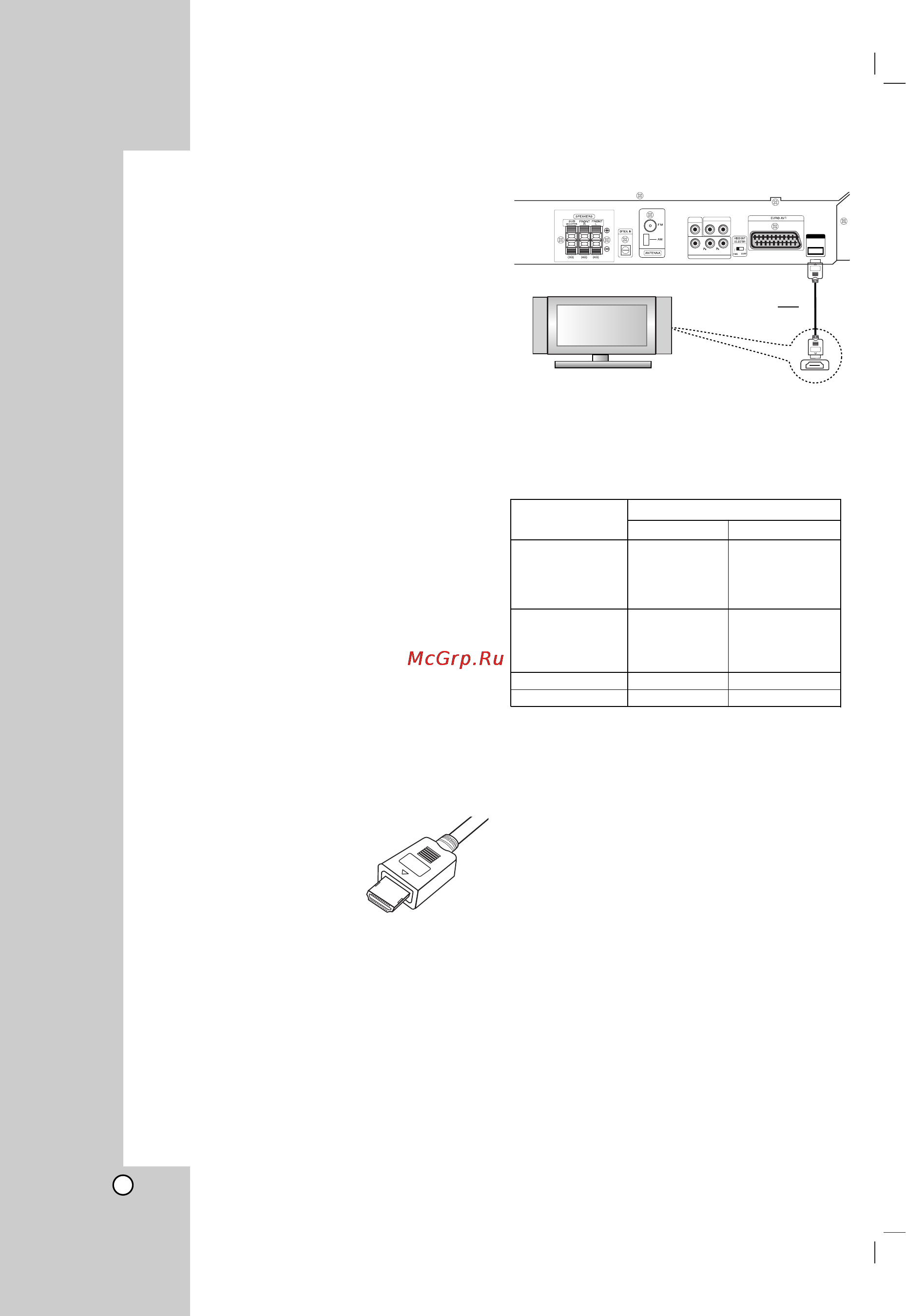

If you have a HDMI TV or monitor, you can connect
it to this DVD/CD Receiver using a HDMI cable.
1. Connect the HDMI OUT jack on the DVD/CD
Receiver to the HDMI jack on a HDMI compatible
TV or monitor (H).
2. Set the TV’s source to HDMI (refer to owner’s
manual for TV).
3. In the stop mode, select HDMI mode by pressing
HDMI. Press RESOL. repeatedly to select the
resolution you wish to change.
Notes:
The arrow on the cable connector body should
face up for correct alignment with the connector on
the DVD/CD Receiver.
If HDMI cable is not connected, the HDMI button
does not operate.
If there is noise or there are lines
on the screen, please check
the HDMI cable.
Not all HDCP-compatible
DVI devices will work with
this DVD/CD Receiver.
If TV does not support HDCP, snow noise appears
on the screen, or picture may be vibrated.
Tip :
When you use HDMI connection, you can change the
resolution (480p or 576p, 720p, 1080i, 1080p) for the
HDMI output by pressing RESOLUTION on the
Remote Control.
Resolution setting
You can change the resolution for the COMPONENT
VIDEO OUT by pressing RESOL. on the Remote
Control. Available resolution settings are as shown
below.
OUTPUT Available Resolution
CONNECTION PAL NTSC
1920 x 1080p 1920 x 1080p
HDMI 1920 x 1080i 1920 x 1080i
VIDEO OUT 1280 x 720p 1280 x 720p
720 x 576p 720 x 480p
1920 x 1080i 1920 x 1080i
COMPONENT 1280 x 720p 1280 x 720p
VIDEO OUT 720 x 576p 720 x 480p
720 x 576i 720 x 480i
MONITOR OUT 720 x 576i 720 x 480i
SCART 720 x 576i -
Notes:
If the picture does not appear on the screen with
the analog video connections, change the
resolution to 480i (or 576i).
For 720p and 1080i resolution on the component
video out, only non-copy protected discs can be
played back. If the disc is copy protected, it will be
displayed at the 576p(PAL) 480p(NTSC) resolution.
1080p, 1080i, 720p, 576p and 480p does not work
with the analog video connections (MONITOR
OUT).
The component (Y/PB/PR) will output to black
picture in the RGB mode.
If you change the resolution, the display MENU
(MP3/JPEG/DivX) size is changed.
If your TV does not accept your resolution setting,
abnormal picture appears on the screen.
Please read owner’s manual for TV, and then set
the resolution that your TV can accept.
Caution:
Changing the resolution when the DVD/CD Receiver
is connected with HDMI connector may result in
malfunctions. To solve the problem, turn off the
DVD/CD Receiver and then turn it on again.
HDMI
HDMI OUTHDMI OUT
OUT PUT
INPUT
L - AUX - R
MONITOR
Y
COMPONENT VIDEO (PROGRESSIVE SCAN)
H
HDMI compatible TV
Rear of DVD/CD Receiver
