LEO 100WQ100-31-18,5/4P [20/22] Application

Содержание

• Www leogroup cn 1
• 封面 1
• Authorized technical center in pump industry 2
• Central south america southeast asia middle east africa oceania etc which play a crucial role 2
• Enterprise engaged in r d design manufacture sales and service of all series pumps and systems 2
• Exclusive distribution agency in over 100 countries 2
• Four manufacturing bases in wengling of zhejiang xiangtan of hunan wuxi of jiangsu and dalian 2
• History to know leo 2
• Hungary belgium thailand indonesia united arab emirates and bangladesh and authorized 2
• In water conservancy water resources electric power construction petrochemical industry mining 2
• Leo group got listed in shenzhen stock exchange with stock code 002131 is a national high tech 2
• Leo has currently two industrial groups respectively for industrial and civilian applications with 2
• Leo is the first listed company in chinese pump industry one of the drafters of pump industry 2
• Machinery industry association as well leo has been identified as china famous brand by 2
• Metallurgy fire fighting hvac heating ventilation and air conditioning agricultural irrigation civil 2
• Of liaoning leo possesses a solid foundation to become a world class pump and system solution 2
• Our products have been sold to over 120 countries and regions such as europe north america 2
• Provider rapidly 2
• Standard and the vice president of drainage and irrigation machinery branch of china agricultural 2
• The state administration of industry and commerce lt is mentionable that leo has the only state 2
• Water supply and drainage etc 2
• We have set up many production and sales subsidiaries in key regional markets such as america 2
• With over 70 years professional technology leo will continue her consistent creativity and development ability in each pump for human s health 2
• 目录 2
• And regions the base has established steady cooperative relationships with world class pump manufacturers 3
• Applications for each field there s a professional manufacturing base with relevant professional sales 3
• Based on market segment leo s pump business is divided into 5 fields namely water conservancy 3
• Boosting garden and field irrigation hvac etc 3
• Company among all industrial pump manufacturers in china 3
• Importers dealers and hypermarkets 3
• Leo group pump zhejiang co ltd a wholly owned subsidiary of leo group co ltd is the core base for 3
• Numerous members one family 3
• Pump are all well known industrial pump manufacturers in their own fields with over 70 years industrial 3
• Pump manufacturing base for domestic and commercial applications 3
• Pump manufacturing base for general industrial pumps 3
• Pump manufacturing base for petrochemical industry 3
• Pump manufacturing base for water conservancy water resources 3
• Pump manufacturing experience and extraordinary comprehensive strength leo has become a leading 3
• Pump pool pump doestic lifting station gasoline engine pump diesel engine pump submersible pump 3
• R d manufacturing sales and service of domestic and commercial pumps for family water supply pipeline 3
• Submersible borehole pump submersible sewage pump stainless steel vertical multistage pump etc 3
• Teams three subsidiary companies wuxi leo xi pump leo group pump hunan and dalian leo 3
• The leading products include peripheral pump jet pump centrifugal pump garden submersible pump fountain 3
• The product range covers 15 series with over 2 000 specifications which are well sold in more than 120 countries 3
• Water resources power station petrochemical industry mining metallurgical industry and civilian 3
• 目录 2 3
• Applications hydraulic performance curves 4
• C features 4
• Capacity q 4
• Dimension package information 4
• Discharge diameter mm 4
• Double end mechanical seal stainless steel welded shaft liquid temperature 0 40 c liquid ph value 4 10 max immersion depth 5 m 4
• Drainage of waste water containing fibrous additives from leather 4
• Drainage of wastewater from the attenuation tank purifying tank and 4
• Enclosed channel impeller 4
• Factory and food processing factory 4
• Flexible installations with hoses pipes or quick coupling systems float switch as standard accessory for single phase 1 kw 4
• Frequency pole number 50 hz 2 4
• High efficiency anti clogging enclosed channel impeller 4
• Identification codes 50 sw e m 8 16 1 l 4
• Insulation class f protection class ipx8 bearing ball type 4
• Materials table 4
• Max flow 4
• Max head 4
• Max solid dia 4
• Mm single phase three phase kw hp 4
• Model discharge mm inch 4
• Model gw kg l 4
• Model l1 l2 l3 l4 h h1 d d1 d2 m single phase three phase 1 3 4
• O e o c ra e 4
• Omitted for three phase motor 4
• Pcs 20 teu i single phase three phase 4
• Power rated flow 4
• Quantity 4
• Rated flow 4
• Rated head 4
• Rated head m 4
• Rated power kw 4
• Sewage management accumulated water septic tank stock farm pumping sewage form hotels restaurants schools and public buildings 4
• Sewage tank in water treatment plant 4
• Single phase motor 4
• Submersible sewage pump 4
• Technical data 4
• Applications 5
• Capacity q 5
• D d1 d2 m single phase three phase 1 3 il 1 5
• Dimension 5
• Drainage of waste water containing fibrous additives from leather 5
• Drainage of wastewater from the attenuation tank purifying tank and 5
• Factory and food processing factory 5
• Flexible installations with hoses pipes or quick coupling systems float switch as standard accessory for single phase 1 kw double end mechanical seal stainless steel welded shaft liquid temperature 0 40 c liquid ph value 4 10 5
• Frequency pole number 50 hz 2 5
• High efficiency anti clogging enclosed channel impeller 5
• Hydraulic performance curves 5
• I model discharge mm inch 5
• I model l1 l2 l3 l4 5
• Identification codes 5
• Insulation class f protection class ipx8 bearing ball type 5
• J model gw kg l 5
• Materials table 5
• Max flow 5
• Max head 5
• Max immersion depth 5 m 5
• Max solid dia 5
• Mm single phase three phase kw hp 5
• Package information 5
• Pcs 20 teu single phase three phase 1 5
• Power rated flow 5
• Quantity 5
• Rated head 5
• Rated power kw 5
• Sewage management accumulated water septic tank stock farm pumping sewage form hotels restaurants schools and public buildings 5
• Sewage tank in water treatment plant 5
• Submersible sewage pump 5
• Technical data 5
• Applications 6
• Capacity q 6
• Dimension 6
• Drainage of waste water containing fibrous additives from leather 6
• Drainage of wastewater from the attenuation tank purifying tank and 6
• Factory and food processing factory 6
• Flexible installations with hoses pipes or quick coupling systems double end mechanical seal stainless steel welded shaft liquid temperature 0 40 c liquid ph value 4 10 6
• Frequency pole number 50 hz 2 insulation class f protection class ipx8 bearing ball type 6
• High efficiency anti clogging enclosed channel impeller 6
• Hydraulic performance curves 6
• Identification codes 80 sw e 40 9 2 l 6
• Materials table 6
• Max flow 6
• Max head 6
• Max immersion depth 5 m 6
• Max solid dia 6
• Mm kw hp 6
• Model discharge mm inch 6
• Model gw kg 6
• Model l1 l2 l3 l4 h h1 d d1 d2 m 6
• Package information 6
• Pcs 20teu 6
• Power rated flow 6
• Quantity 6
• Rated head 6
• Sewage management accumulated water septic tank stock farm pumping sewage form hotels restaurants schools and public buildings 6
• Sewage tank in water treatment plant 6
• Submersible sewage pump 6
• Technical data 6
• And food processing factory 7
• Applications 7
• Capacity q 7
• Dimension 7
• Discharge diameter mm 7
• Double end mechanical seal stainless steel welded shaft 7
• Drainage of waste water containing fibrous additives from leather factory 7
• Drainage of wastewater from the attenuation tank purifying tank and 7
• Fiber substance 7
• Flexible installations with hoses pipes or quick coupling systems float switch as standard accessory for single phase 1 kw 7
• Frequency pole number 50 hz 2 insulation class f protection class ipx8 bearing ball type 7
• Hydraulic performance curves 7
• I features 7
• I model discharge mm inch 7
• Identification codes 50 sw u m 9 6 0 5 l 7
• Liquid temperature 0 40 c liquid ph value 4 10 max immersion depth 5 m 7
• Materials table 7
• Max flow 7
• Max head 7
• Max solid dia 7
• Mm single phase three phase kw hp 7
• Model gw kg l 7
• Model l1 l2 l3 l4 h h1 d d1 d2 m single phase three phase 7
• Omitted for three phase motor 7
• Package information 7
• Pcs 20 teu single phase three phase 1 7
• Power rated flow 7
• Quantity 7
• Rated flow 7
• Rated head 7
• Rated head m 7
• Rated power kw 7
• Semi open vortex impeller 7
• Semi open vortex impeller suitable for liquid containing impurities and long 7
• Sewage management accumulated water septic tank stock farm pumping sewage form hotels restaurants schools and public buildings 7
• Sewage tank in water treatment plant 7
• Single phase motor 7
• Submersible sewage pump 7
• Technical data 7
• Applications 8
• Capacity q 8
• Dimension package information 8
• Hydraulic performance curves 8
• Identification codes 65 sw u m 24 8 1 l 8
• Materials table 8
• Submersible sewage pump 8
• Technical data 8
• Applications 9
• Capacity q 9
• Dimension 9
• Hydraulic performance curves 9
• Identification codes 80 sw um 30 4 1 l 9
• Materials table 9
• Package information 9
• Submersible sewage pump 9
• Technical data 9
• Applications 10
• Capacity q 10
• Dimension 10
• Drainage of wastewater from individual residences apartment buildings 10
• Frequency pole number 50 hz 2 insulation class f protection class ipx8 bearing ball type 10
• H1 d d1 d2 m 10
• Hydraulic performance curves 10
• Identification codes 10
• L1 l2 l3 l4 10
• Materials table 10
• Max flow 10
• Max head 10
• Max solid dia 10
• Mm single phase three phase kw hp 10
• Model discharge mm inch 10
• Model gw kg l 10
• Package information 10
• Pcs 20 teu 10
• Power rated flow 10
• Quantity 10
• Rated head 10
• Recreational developments models 10
• Schools federal state and local parks wastewater drainage to transfer various wastewater and sewage 10
• Semi open vortex impeller reliable grinding system flexible installations with hoses pipes or quick coupling systems float switch as standard accessory for single phase 1 kw double end mechanical seal stainless steel welded shaft liquid temperature 0 40 c liquid ph value 4 10 max immersion depth 5 m 10
• Single phase three phase 10
• Single phase three phase 1 10
• Submersible sewage pump 10
• Technical data 10
• Transferring wastewater of commercial buildings industrial plants 10
• Used in pressure sewage system 10
• Wastewater sampling small hospitals 10
• Applications 11
• Capacity q 11
• Dimension 11
• Drainage of wastewater from individual residences apartment buildings 11
• Frequency pole number 50 hz 2 insulation class f protection class ipx8 bearing ball type 11
• Hydraulic performance curves 11
• Identification codes 11
• Kg mm mm mm pcs 20 teu 11
• Materials table 11
• Max flow 11
• Max head 11
• Max solid dia 11
• Mm kw hp 11
• Model discharge mm inch 11
• Model gw l w h quantity 11
• Model l1 l2 l3 l4 h h1 d d1 d2 m 11
• Package information 11
• Power rated flow 11
• Rated head 11
• Recreational developments models 11
• Schools federal state and local parks wastewater drainage to transfer various wastewater and sewage 11
• Semi open vortex impeller reliable grinding system flexible installations with hoses pipes or quick coupling systems double end mechanical seal stainless steel welded shaft liquid temperature 0 40 c liquid ph value 4 10 max immersion depth 5 m 11
• Submersible sewage pump 11
• Technical data 11
• Transferring wastewater of commercial buildings industrial plants 11
• Used in pressure sewage system 11
• Wastewater sampling small hospitals 11
• Applications 12
• Hydraulic performance curves 12
• Identification codes 12
• Materials table 12
• Submersible sewage pump 12
• Sw110 10 5 l 4 12
• Technical data 12
• Hydraulic performance curves dimension 13
• Model 0d 0a1 0b1 0c1 n 0d1 13
• Submersible sewage pump 13
• W1 w2 h3 13
• Accessories 14
• Dimension 14
• Flange elbow dimension 14
• Guide rail system 14
• Hose coupling 14
• Identification codes 14
• Includes 14
• Leo product style 14
• Package information carton wooden case optional 14
• Pipe diameter 14
• Pump outlet 14
• Sw 50 50 14
• Application 15
• Float switch is available on request 15
• Hose coupling as standard flange elbow is available on request 15
• Identification codes 65 wq d 15 10 1 f 15
• Materials table 15
• Submersible sewage pump 15
• Technical data 15
• Hydraulic performance curves dimension 16
• Submersible sewage pump 16
• Dimension 17
• Guide rail system 17
• Includes 17
• Model 0d 0a1 0b1 0c1 n 0d1 h w1 w2 h3 n o p q l 17
• Submersible sewage pump 17
• Application 18
• Capacity q 18
• Dimension 18
• Hydraulic performance curves 18
• Identification codes 18
• Kbz 2 1 18
• Materials table 18
• Package information 18
• Submersible dewatering pump 18
• Technical data 18
• 0 1 1 2 2 3 19
• 20 40 60 80 100 120 140 160 180 200 19
• 5 10 15 20 25 30 35 40 45 50 55 us qpm 19
• Application 19
• Capacity q 19
• Dimension 19
• H l min mm 19
• Hydraulic performance curves 19
• Identification codes 19
• Kbz 4 7 19
• Materials table 19
• Mm kw hp m 19
• Model discharge power max head max flow max solid dia 19
• Package information 19
• Submersible dewatering pump 19
• Technical data 19
• Application 20
• Dimension 20
• H l min mm 20
• Hydraulic performance curves 20
• Identification codes 20
• Materials table 20
• Mm kw hp m 20
• Model discharge power max head max flow max solid dia 20
• Package information 20
• Submersible slurry pump 20
• Technical data 20
• Accessories 21
• Control box 21
• Features 21
• Identification codes 21
• Instructions 21
• Leo d 2 1 z 21
• Operating conditions 21
• Pump range pump range 22

Похожие устройства

• LEO 150WQ150-24-18,5 Инструкция по эксплуатации
• LEO 150WQ150-24-18,5 Сертификат
• LEO 150WQ150-24-18,5 Каталог
• LEO 200WQ300-15-18,5/4P Инструкция по эксплуатации
• LEO 200WQ300-15-18,5/4P Сертификат
• LEO 200WQ300-15-18,5/4P Каталог
• LEO 100WQ100-36-22/4P Инструкция по эксплуатации
• LEO 100WQ100-36-22/4P Сертификат
• LEO 100WQ100-36-22/4P Каталог
• LEO 150WQ150-28-22/4P Инструкция по эксплуатации
• LEO 150WQ150-28-22/4P Сертификат
• LEO 150WQ150-28-22/4P Каталог
• LEO 200WQ300-18-22/4P Инструкция по эксплуатации
• LEO 200WQ300-18-22/4P Сертификат
• LEO 200WQ300-18-22/4P Каталог
• LEO 250WQ500-11-22/4P Инструкция по эксплуатации
• LEO 250WQ500-11-22/4P Сертификат
• LEO 250WQ500-11-22/4P Каталог
• LEO 150WQ150-34-30 Инструкция по эксплуатации
• LEO 150WQ150-34-30 Сертификат

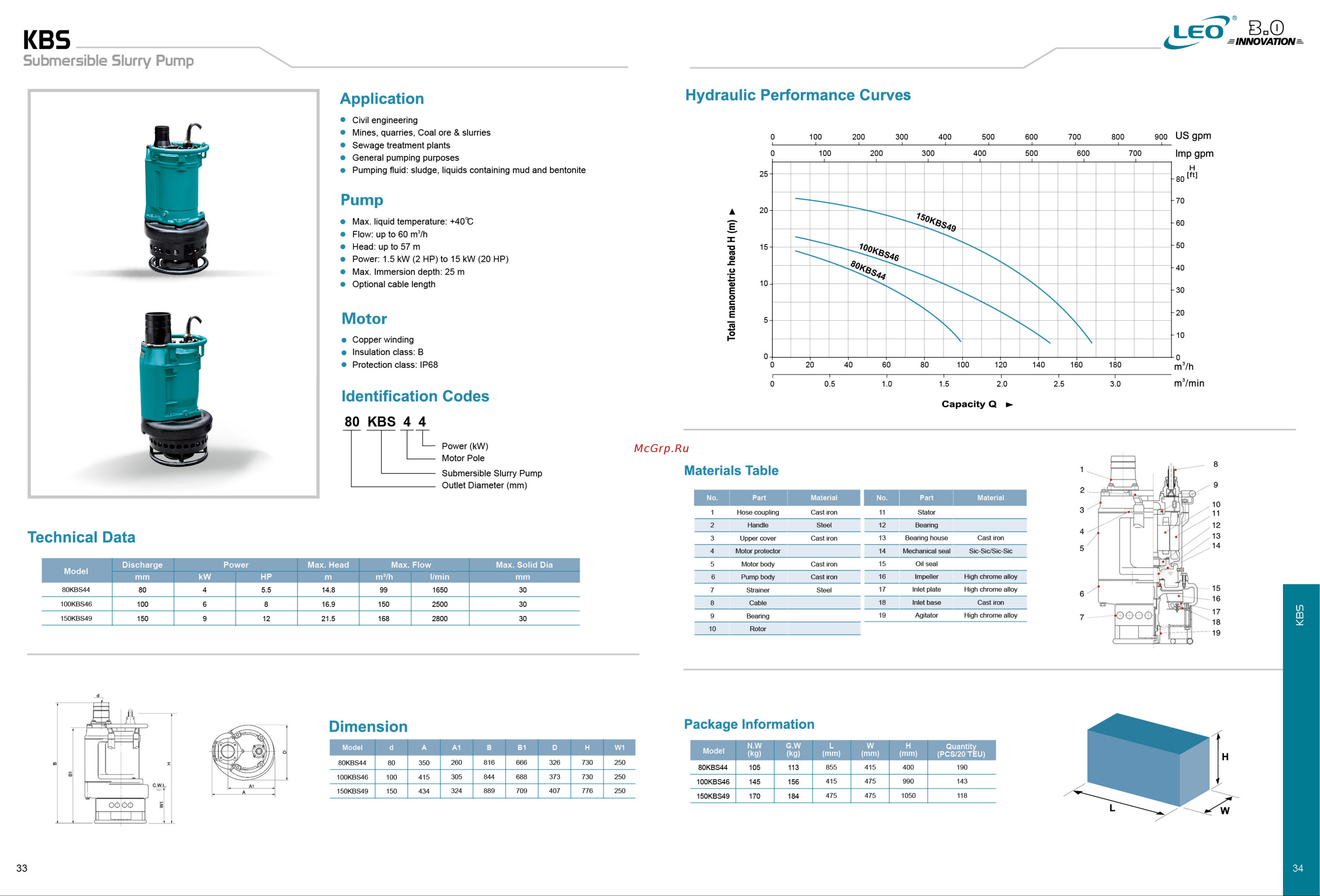

KBS Submersible Slurry Pump Hydraulic Performance Curves Application Civil engineering Mines quarries Coal ore slurries Sewage treatment plants General pumping purposes Pumping fluid sludge liquids containing mud and bentonite Pump Max liquid temperature 40 3 Flow up to 60 m3 h Head up to 57 m Power 1 5 kW 2 HP to 15 kW 20 HP Max Immersion depth 25 m Optional cable length Motor Copper winding Insulation class B Protection class IP68 Identification Codes 80 KBS 4 I Power kW Motor Pole Materials Table Submersible Slurry Pump Outlet Diameter mm Model Discharge mm 80KBS44 80 100KBS46 150KBS49 100 150 Power Cast iron 11 Part Material Stator 2 Handle Steel 12 Bearing 3 Upper cover Cast iron 13 Bearing house Cast iron 4 Motor protector 14 Mechanical seal Sic Sic Sic Sic 5 Motor body Cast iron 15 Oil seal 6 Pump body Cast iron 16 Impeller High chrome alloy Steel 17 Inlet plate High chrome alloy kW Max Head m m3 h l min Max Solid Dia mm 4 5 5 14 8 99 1650 30 7 Strainer 30 8 Cable 18 Inlet base Cast iron 30 9 Bearing 19 Agitator High chrome alloy 10 Rotor 9 8 12 16 9 150 2500 168 21 5 2800 Package Information Dimension 33 Material Hose coupling HP 6 Max Flow Part 1 KBS Technical Data No No Model d A A1 B B1 D H W1 80KBS44 80 350 260 816 666 326 730 250 100KBS46 100 415 305 844 688 373 730 250 150KBS49 150 434 324 889 709 407 776 250 Model N W kg G W kg L mm W mm H mm Quantity PCS 20TEU 80KBS44 105 113 855 415 400 190 475 990 143 475 1050 118 100KBS46 145 156 415 150KBS49 170 184 475 34
