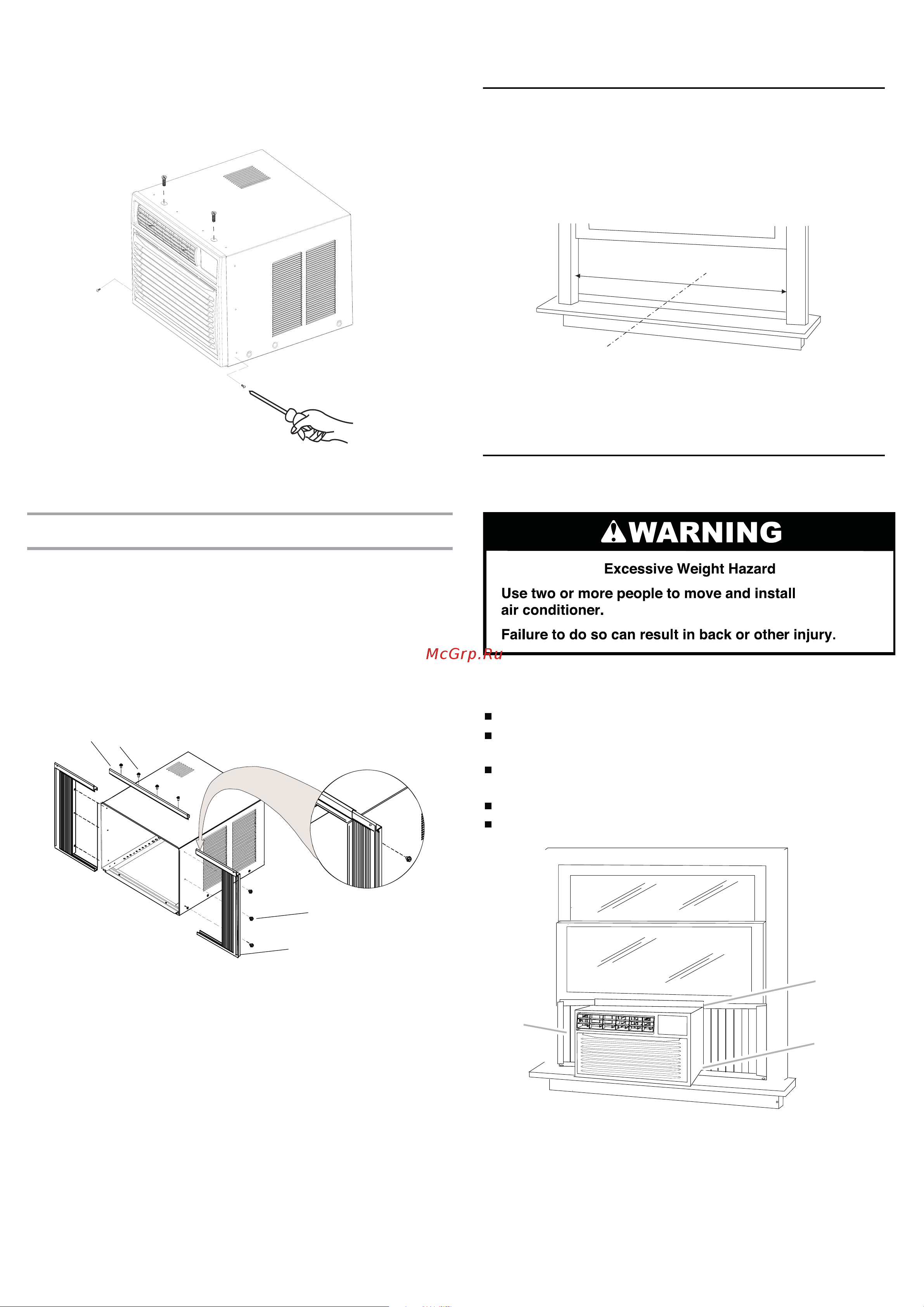

Haier ESA424J [6/44] Position air conditioner

NOTE: Cover putty knife blade with masking tape to guard

against damage of the unit ﬁnish.

CAUTION:Never expose plastic front or grille to extreme

temperatures.

NOTE: Attach curtains to the air conditioner before placing the air

conditioner in window.

1. Install top channel with four 13/32” screws.

2. Slide left-hand curtain assembly into left end of top and bottom

channel s. Repeat for right-hand curtain assembly.

3. Fasten curtain retainer strips to the sides of the outer case with

six 13/32” screws..

NOTES:

Handle the air conditioner gently.

Be sure your air conditioner does not fall out of the opening

during installation or removal.

The place where the power cord exits the air conditioner

should be no more than 4 ft (122 cm) from a grounded outlet.

Do not block the louvers in the front panel.

Do not block the louvers on the outside of the air conditioner.

NOTE: Your model may differ from the one shown.

A. Side curtain against window channel

B. Window sash behind top channel

C. Bottom channel in behind windowsill

Prepare Window for Installation

1. Measure the width of the window opening.

2. Mark the center line on the inside windowsill.

Position Air Conditioner

A. Top channel

B. 13/32” screws

C. 13/32” screws

D. Side curtains

A. Width of window opening

B. Center line

Assemble Curtain/Top channel
