Outdoor Unit
Loading of the battery
1
2
3
4

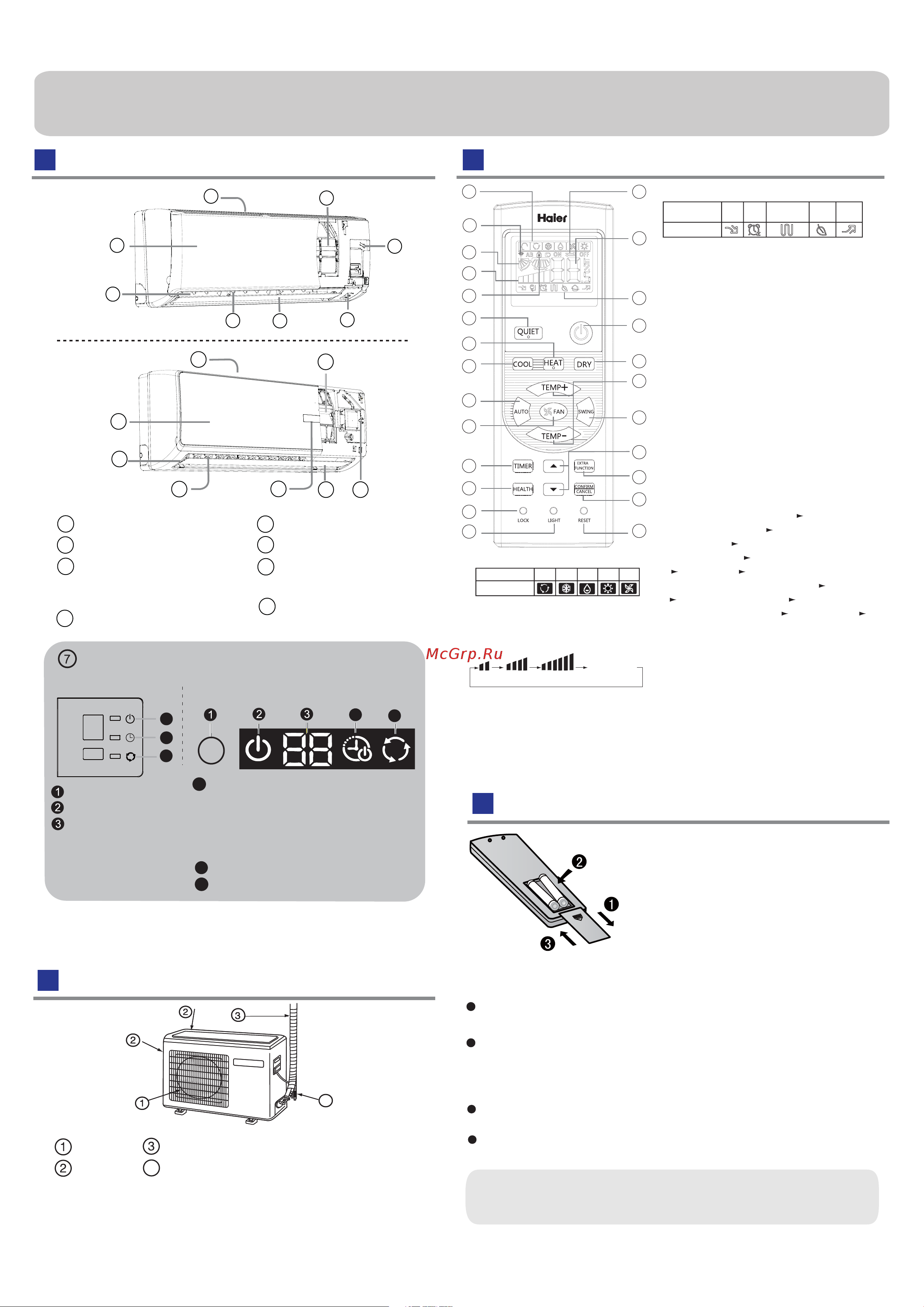

Parts and Functions
Indoor Unit
OUTLET
INLET
CONNECTING PIPING AND ELECTRICAL WIRING
DRAIN HOSE
Remote controller
Remove the battery cover;
Load the batteries as illustrated.
2 R-03 batteries, resetting key
(cylinder);
Be sure that the loading
is in line with th
e" + "/"-";
Load the battery,then put on the cover again.
The distance between the signal transmission head and the rece-
iver hole should be within 7m without any obstacle as well.
When electronic-started type fluorescent lamp or change- over
wireless telephone is installed in the
ver is apt to be disturbed in receiving
the signals,
so the distance to the indoor unit should be shorter.
type fluorescent lamp or
room, the recei
Note:
Full display or unclear display during operation indicates the
ries have been used up.
Please change batteries.
If the remote controller can't run normally during operation, please
reload several minutes later.
batte
remove the batteries and
Please be subject to the actual produce purchased the
above picture is just from your reference
4
Hint:
Remove the batteries in case won't be in use for a long period. If
there is any display after taking-out, just press reset key.
Please be subject to the actual produce purchased the
above picture is just from your reference
1. Mode display
2. Signal sending display
4. FAN SPEED display
5. LOCK display
6. TIMER OFF display
TIMER ON display
LO MED HI
7.TEMP display
16. LOCK button
Used to lock buttons and LCD display.
25. RESET button
When the remote controller
appears abnormal, use a sharp
pointed article to press this button
to reset the remote
22. HOUR button
Operation mode
AUTO FANCOOL DRY
Remote controller
HEAT
1
2
3
4
5
9
10
11
12
13
14
15
16
17
22
23
24
25
19
20
21
8
18
7
6
Control the lightening and extinguishing
of the indoor LED display board.
3. SWING display
8
.
9. QUIET button
10. HEAT button
11. COOL button
12. AUTO button
13. FAN SPEED button
14. TIMER button
15. HEALTH button
17. LIGHT button
18. POWER ON/OFF button
19. DRY button
20. TEMP button
21. SWING button
23. EXTRA FUNCTION button
24.CANCEL/CONFIRM button
AUTO
Function: Setting and cancel to the
timer and other additional functions.
Display
circulated
Operation mode
Remote controller
QUITE
POWER
SLEEP
Supplemented
electrical
heating
HEALTH
Additional functions display
Healthy function is not available for some units.
Function: Air sending--- Healthy
airflow position1--- Healthy airflow
position 2 --- Restore the original
flap position --- Right & left air airflow
--- A-B yard---10 and heating symbol
displayed simultaneously--- Sleeping
--- Electrical heating--- Refresh air
(
reserved function) --- Power ---
Fahrenheit/Celsius mode conversion
Air Purifying Filter(inside)
Inlet
1
Inlet grille
2
Outlet
4
(adjust left and right air flow)
Vertical blade
6
Display board
Horizontal flap
(adjust up and down air flow.
Don't adjust it manually)
Emergency
Switch
7
8
3
5
1
2
4
6
5
7
3
1
EK3
8
1
2
3
4
5
8
6
7
EK1 display board
EK3 display board
Display board
When receiving the remote control
signal,display the set temperature
and in the rest time the room
temperature is displayed and this
room temperature is only for reference.
Signal receiver hole
ON/OFF display
Ambient temp.display
TIMER ON/OFF display
TIMER ON-OFF display
SLEEP display
Note to the power failure resume:
Press the sleep button ten times in five seconds and enter function
after hearing four sounds.And press the sleep button ten times
within five seconds and leave this function after hearing two sounds.
EK1
COOL\HEAT\DRY\AUTO display
4
5
4
5
6
RUNNING display
2
4
6
