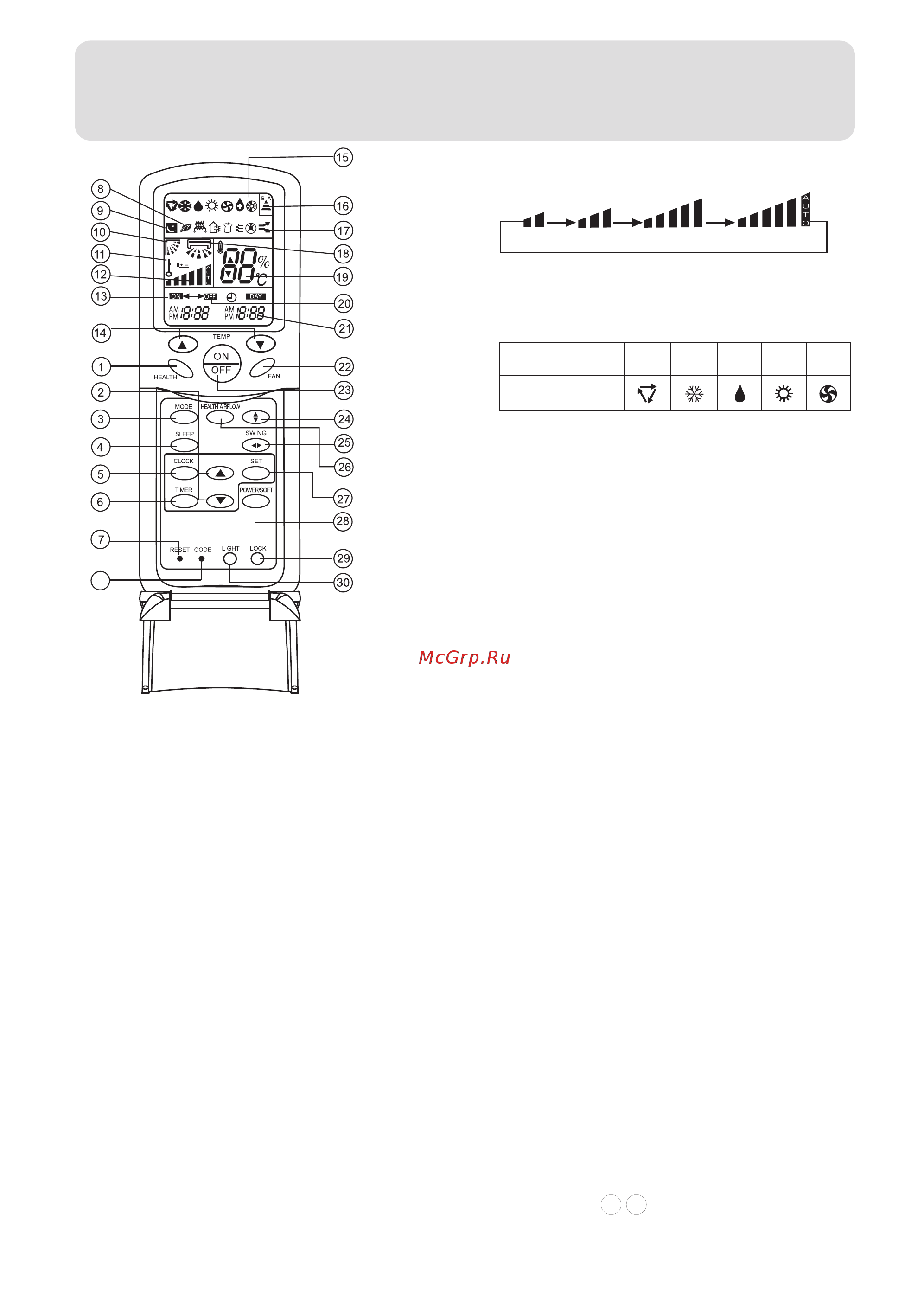

Haier HSU-09RS03/R2 [7/27] Parts and functions
![Haier HSU-09RS03/R2 [7/27] Parts and functions](/views2/1819815/page7/bg7.png)
16. SINGAL SENDING display
17. POWER/SOFT display
18. Left/right air flow display
19. TEMP display
Remote controller: to display the TEMP. setting.
20. TIMER OFF display
21. CLOCK display
22. FAN button
Used to select fan speed: LOW,MED, HI, AUTO.
23. ON/OFF button
Used for unit start and stop.
24. SWING UP/DOWN button
Used to select up or down air sending direction.
25. SWING LEFT/RIGHT button
Used to select left or right air flow.
26. HEALTH AIRFLOW button
Used to set the health airflow mode.
27. SET button
Used to confirm timer and clock settings.
28. POWER/SOFT button
29. LOCK
Used to lock buttons and LCD display. If
pressed, the other buttons will be disabled
and the lock condition display appears.
Press it once again, lock will be canceled
and lock condition display disappears.
30. LIGHT button
Colorful display bar of the controlling indoor
machine is on and extinguished.
31. CODE
Used to select CODE A or B with a press,A or
B will be displayed on LCD.
Please select A without special explanation.
1. HEALTH button
Used to set healthy operation.
2. HOUR button
Used to set clock and timer setting.
3. MODE button
Used to select operation mode. AUTO,
COOL,DRY, FAN,HEAT.
4. SLEEP button
Used to select sleep mode.
5. CLOCK button
Used to set correct time.
6. TIMER button
Used to select TIMER ON,
TIMER OFF, TIMER ON-OFF.
7. RESET
When the remote controller appears
abnormal, use a sharp pointed article
to press this button to reset the
remote controller normal.
8. HEALTH display
9. SLEEP display
10. SWING UP/DOWN display
11. LOCK display
12. FAN SPEED display
13. TIMER ON display
14. TEMP button
Used to select your desired temperature.
15. Operation mode display
Operation mode AUTO HEAT FANCOOL DRY
Remote controller
NOTE: (1)The following functions and related displays are not available:
(2) Cooling only unit do not have functions and displays related with heating.
Parts and Functions
31
30
6
31
LOW HI
MED AUTO
