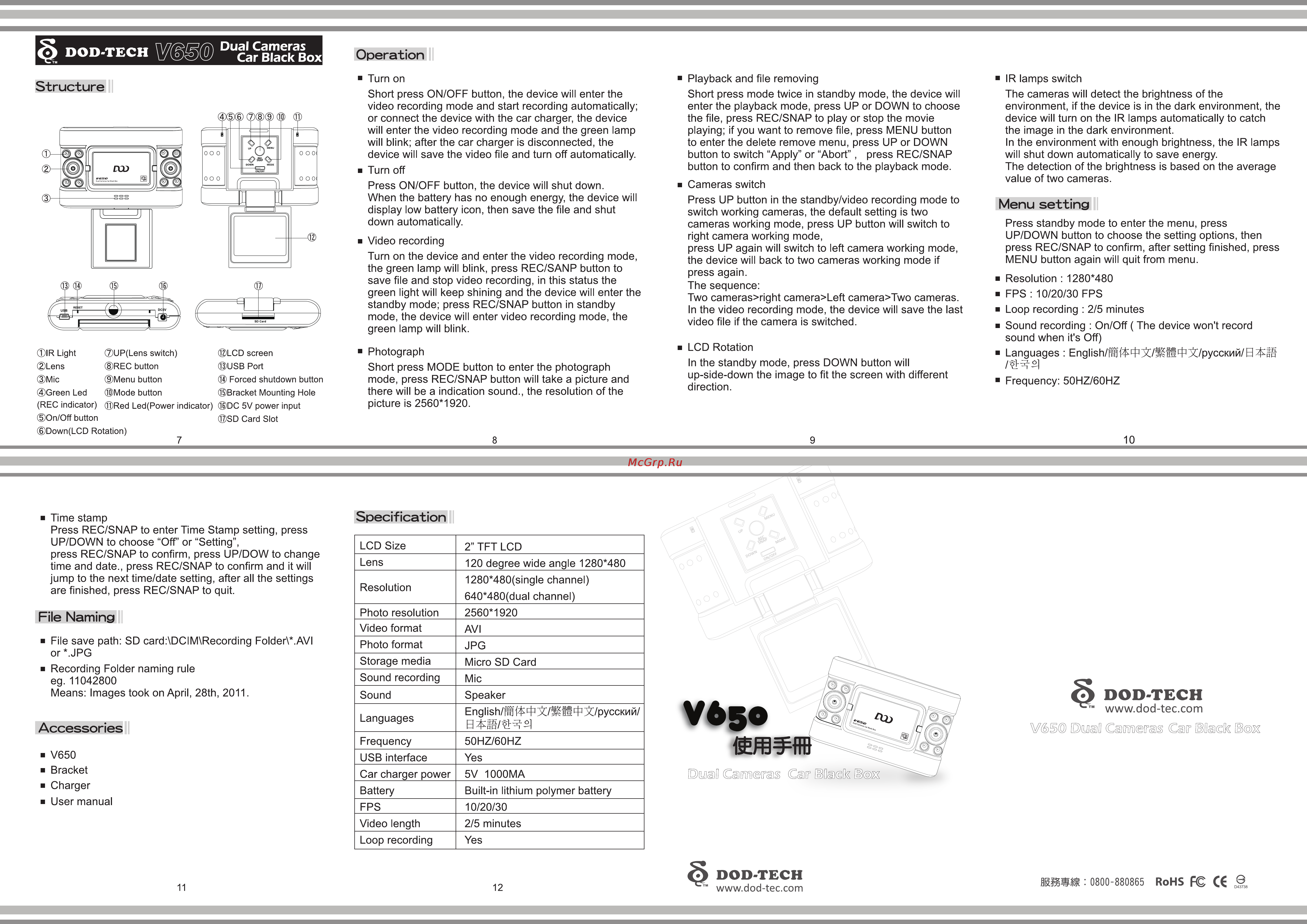

Dual Cameras Car Black Box Q DOD TECH Operation Turn on Short press ON OFF button the device will enter the video recording mode and start recording automatically or connect the device with the car charger the device will enter the video recording mode and the green lamp will blink after the car charger is disconnected the device will save the video file and turn off automatically Turn off Press ON OFF button the device will shut down When the battery has no enough energy the device will display low battery icon then save the file and shut down automatically Structure Video recording Turn on the device and enter the video recording mode the green lamp will blink press REC SANP button to save file and stop video recording in this status the green light will keep shining and the device will enter the standby mode press REC SNAP button in standby mode the device will enter video recording mode the green lamp will blink IR Light UP Lens switch LCD screen Lens REC button USB Port Mic Menu button Forced shutdown button Green Led Mode button Bracket Mounting Hole REC indicator Red Led Power indicator DC 5V power input On Off button SD Card Slot Down LCD Rotation File Naming File save path SD card DCIM Recording FolderV AVI or JPG Recording Folder naming rule eg 11042800 Means Images took on April 28th 2011 LCD Rotation In the standby mode press DOWN button will up side down the image to fit the screen with different direction 8 9 V650 Bracket Charger User manual LCD Size 2 TFT LCD Lens 120 degree wide angle 1280 480 Resolution 1280 480 single channel 640 480 dual channel Photo resolution Video format Photo format Menu setting Press standby mode to enter the menu press UP DOWN button to choose the setting options then press REC SNAP to confirm after setting finished press MENU button again will quit from menu Resolution 1280 480 FPS 10 20 30 FPS Loop recording 2 5 minutes Sound recording On Off The device won t record sound when it s Off Languages English ft ftft Hifftft pyccKHii HCt Frequency 50HZ 60HZ 10 Storage media Sound recording 2560 1920 AVI JPG Micro SD Card Frequency Mic Speaker English ft CC Mif CC pyccKHii H ftiWft 50HZ 60HZ USB interface Car charger power Battery Yes 5V 1000MA Built in lithium polymer battery FPS 10 20 30 Video length Loop recording 2 5 minutes Yes Sound 8 DOD TECH www dod tec com VCC Ooe 8 DOD TECH 11 IR lamps switch The cameras will detect the brightness of the environment if the device is in the dark environment the device will turn on the IR lamps automatically to catch the image in the dark environment In the environment with enough brightness the IR lamps will shut down automatically to save energy The detection of the brightness is based on the average value of two cameras Specification Languages Accessories Cameras switch Press UP button in the standby video recording mode to switch working cameras the default setting is two cameras working mode press UP button will switch to right camera working mode press UP again will switch to left camera working mode the device will back to two cameras working mode if press again The sequence Two cameras right camera Left camera Two cameras In the video recording mode the device will save the last video file if the camera is switched Photograph Short press MODE button to enter the photograph mode press REC SNAP button will take a picture and there will be a indication sound the resolution of the picture is 2560 1920 7 Time stamp Press REC SNAP to enter Time Stamp setting press UP DOWN to choose Off or Setting press REC SNAP to confirm press UP DOW to change time and date press REC SNAP to confirm and it will jump to the next time date setting after all the settings are finished press REC SNAP to quit Playback and file removing Short press mode twice in standby mode the device will enter the playback mode press UP or DOWN to choose the file press REC SNAP to play or stop the movie playing if you want to remove file press MENU button to enter the delete remove menu press UP or DOWN button to switch Apply or Abort press REC SNAP button to confirm and then back to the playback mode 12 www dod tec com Car Bflarfe B r 0800 880865 RoHS FC Ci
