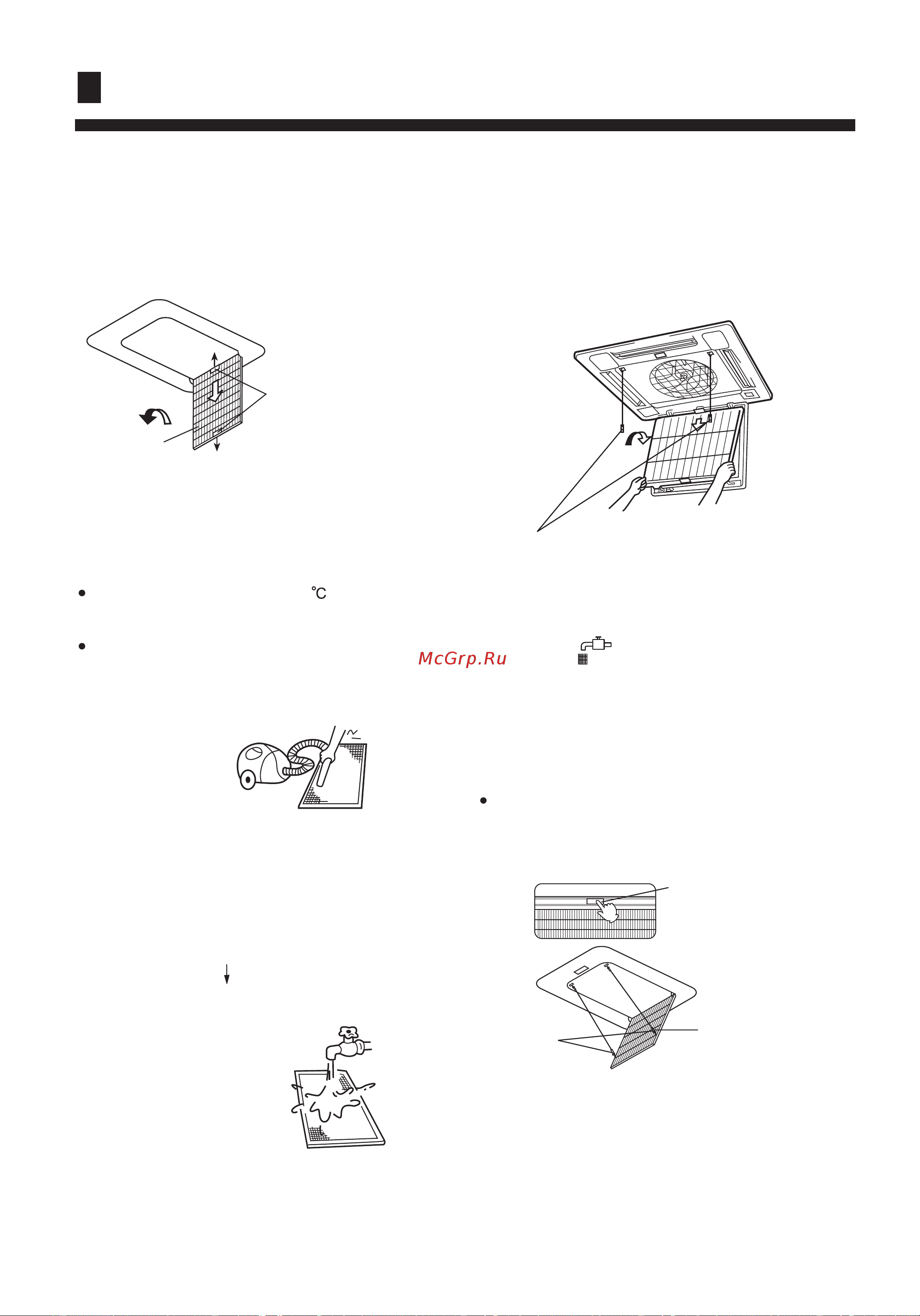

MAINTENANCE
17
3. Dismantle air filter
CAUTION!
Don't wash with water over 50 ,to prevent
discoloring or deforming.
Don't dry over fire. Filter maybe burn.
4. Clean
6. Close inlet grill
7. Press the filter signal return key on the
controller.
[ Clean air filter ]
(A) Use vacuum suction or (B) wash with water
to remove dust.
(A) Remove dust with vacuum filter.
(B) Wash with water.
With too much dust, use soft brush and neutral
detergent.
Swing off the water, and then place in cool place.
5. Install air filter
(1) Put filter into protruding parts at the top of
the inlet grill.
(2) Connect the two pothooks with inlet grill
See 2
[Clean inlet grill]
1. Open inlet grill
2. Take off air-filter
See "clean air filter"
See 1.
Connet the two pothooks with inlet grill
PUSH
Press the elliptical knob
the inlet grill will
automatically drop
Open two
pothooks
Pothook
Press the elliptical "PUSH" knob, the inlet
grill will automatically drop. (the inlet grill
is catched with two pothooks)
Drag the knob of
the grill back lift
the filter and take
down.
Air filter
