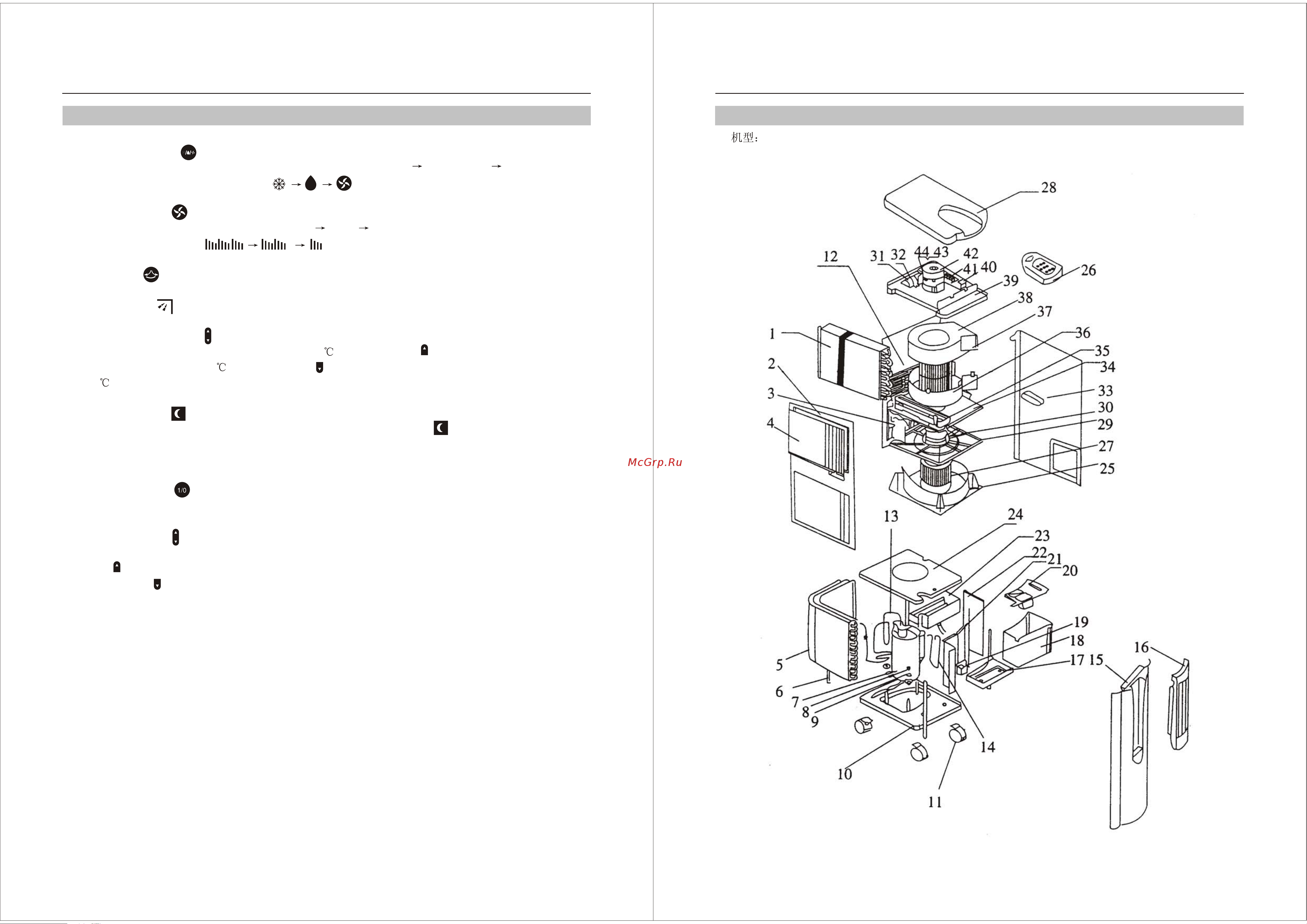

FUNCTION KNOCK-DOWN DRAWZIN AND ITST OF COMPONENT

1.Running Mode Key

press the key to choose from three running node:cooling mode:cooling dehumidifying Fan.The

LCD window displays correspondingly:

2.Fan Seletion Key

Press the key to choose from three fan speed:high middle low.The LCD windo

displays correspondingly:

3.Sweep key:

Press the key to enable automatic side-to-side sweeping of the indoor air.The LCD

window displays ;press the key again to fix the indoor air at present direction.

4.Temperarure Setting key

Press the key to set the temperarure between 10-30 .Each press of the part will

increase the remperarure for 1 each pressg of the part will decrease the temperarure

for 1 .The temperature will be displayed in the LCD window.

5.Sleep Setting key

Press the key to set or cancel Sleep Mode.When the LCD window displays the air

conditioner is nuder Sleep Mode.Press again to cancel the Sleep Mode,and the signal

will disappear on the LCD indow.

6.Power Switch key

Power Switch on/off the power of the air conditioner.

7.Time Setting key:

Press the key to set or cancel the Time Mode,or set rime berween1-24hours.Each press

of the part will add one hour. which will be displayed on the LCD window, each

pressing of the part will reduce one hour, If it shows 1 hour.Press once to cancel the

timing.

8.Water Full indicator of:

When the water rank is filled with water, the indicator will flash,and alarm iwth veep.The

compressor stops working.The air conditioner enrers fan mode.Please take our the water

tank. Pour the condensed water, then replace it. The air conditioner runs as per the mode

vefore stopping of the compressor(the compressor can only start after 3 minutes of

time-delay protection).

9.The run indicator of the compressor:

In cooling or dehumidifying mode, the indicator will be on in the running of the compressor.

HM-07C03, HM-07C3/R1,HM-09CA03
