Haier HM-07C03/R1 [8/15] Method of consecutive drainage

Содержание

• Contents 1
• Hm 07c03 am052acnba 1
• Hm 09ca03 hm 05cb03 r1 1
• Mobile air conditioner 1
• Operation manual 1
• Outline 2
• Outline 3
• Description of the components 4
• Description of the components 5
• Description of the components 6
• Application of refrigerating and dehumidifying 7
• Dehumidifying 7
• Fan running 7
• L cooling 7
• Placing requirements 7
• Drainage 8
• Method of consecutive drainage 8
• Remarks 8
• S automatic louver function 8
• Sleep function 8
• Timing function 8
• 1 filter bar 2 active carbon screen use the active carbon to absorb and dissolve the smoke smell and odor 9
• Air purifying function 9
• Remarks 9
• The machine has active carbon screen at the air filter bar which can get rid of the smoke smell and odor and filter the dust in the air 9
• Maintenance 10
• Preservation 11
• Check on troubles by self 12
• Please check the following points before applying for repair or service if the 12
• Trouble is not solved please contact the sellers 12
• Points of attention 13
• Installation of the accessories 14
• Operating principle 14
• Contents 15
• Hm 07c03 15
• Hm 07c03 r1 15
• Hm 09ca03 15
• Mobile air conditioner 15
• Operation manual 15

Похожие устройства

• Haier HSM-08C03 Сервис мануал
• Haier AM052ACNBA Инструкция по эксплуатации
• Haier HM-05CB03/R1 Инструкция по эксплуатации
• Haier HSU-09H03/R2(DB) Инструкция по эксплуатации
• Haier HSU-12H03/R2(DB) Инструкция по эксплуатации
• Haier AB142ACNBC Инструкция по эксплуатации
• Haier AU142AANBC Инструкция по эксплуатации
• Haier HBU-14CM03/R1 Инструкция по эксплуатации
• Haier H2SM-14HA03/R1 Инструкция по эксплуатации
• Haier H2SM-18HA03/R1 Инструкция по эксплуатации
• Haier AC142ACNAC Инструкция по эксплуатации
• Haier AC182ACNAC Инструкция по эксплуатации
• Haier AC242ACNAC Инструкция по эксплуатации
• Haier AC28NACNAC Инструкция по эксплуатации
• Haier AC36NACNAC Инструкция по эксплуатации
• Haier AC42NACNAC Инструкция по эксплуатации
• Haier AC142ACBAC Инструкция по эксплуатации
• Haier AC182ACBAC Инструкция по эксплуатации
• Haier AC242ACBAC Инструкция по эксплуатации
• Haier AC282ACBAC Инструкция по эксплуатации

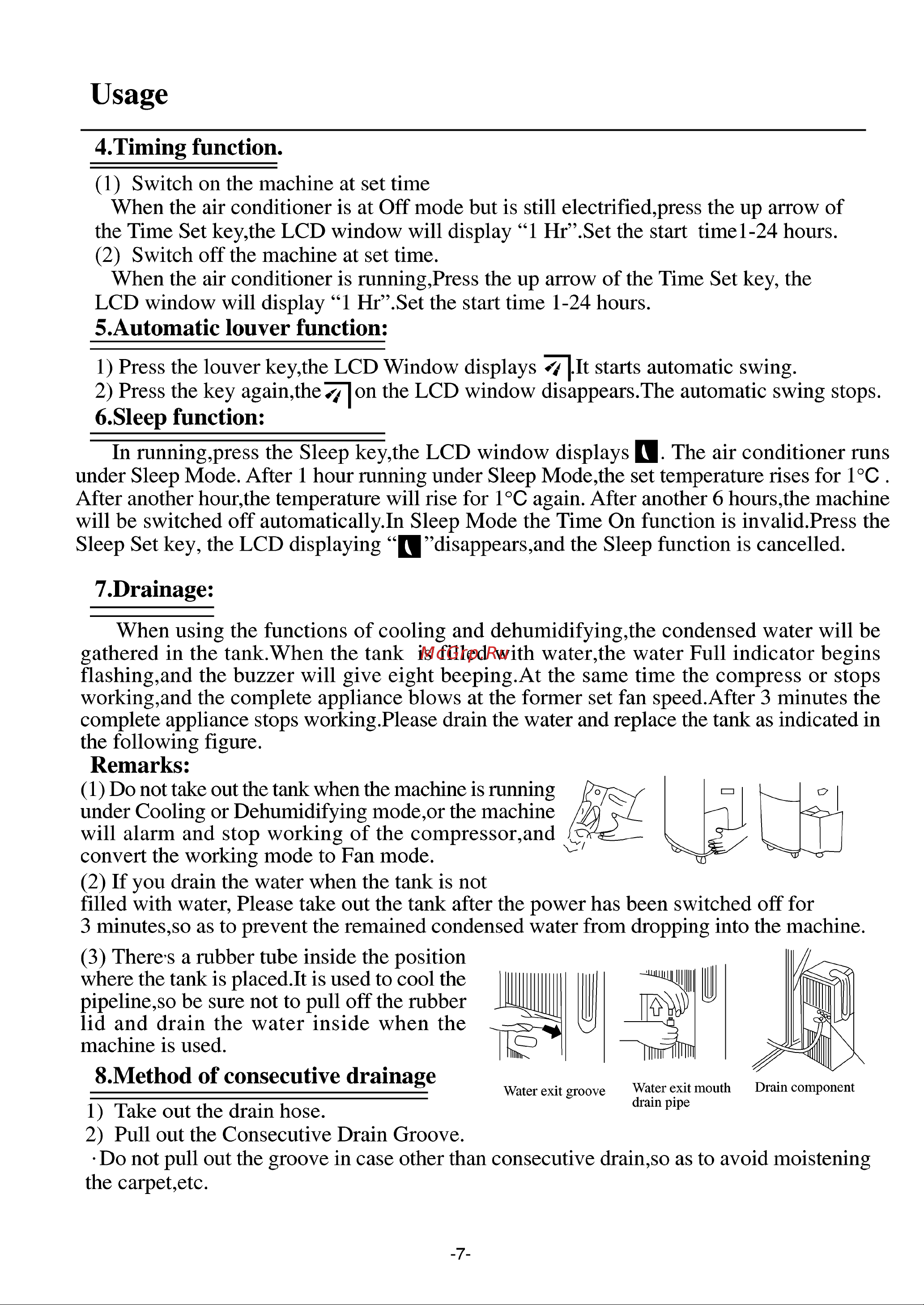

Usage 4 Timing function 1 Switch on the machine at set time When the air conditioner is at Off mode but is still electrified press the up arrow of the Time Set key the LCD window will display 1 Hr Set the start timel 24 hours 2 Switch off the machine at set time When the air conditioner is running Press the up arrow of the Time Set key the LCD window will display 1 Hr Set the start time 1 24 hours S Automatic louver function 1 Press the louver key the LCD Window displays It starts automatic swing 2 Press the key again the on the LCD window disappears The automatic swing stops 6 Sleep function In running press the Sleep key the LCD window displays KT The air conditioner runs under Sleep Mode After 1 hour running under Sleep Mode the set temperature rises for 1 C After another hour the temperature will rise for 1 C again After another 6 hours the machine will be switched off automatically In Sleep Mode the Time On function is invalid Press the Sleep Set key the LCD displaying KT disappears and the Sleep function is cancelled 7 Drainage When using the functions of cooling and dehumidifying the condensed water will be gathered in the tank When the tank is filled with water the water Full indicator begins flashing and the buzzer will give eight beeping At the same time the compress or stops working and the complete appliance blows at the former set fan speed After 3 minutes the complete appliance stops working Please drain the water and replace the tank as indicated in the following figure Remarks 1 Do not take out the tank when the machine is running under Cooling or Dehumidifying mode or the machine X will alarm and stop working of the compressor and _______________ convert the working mode to Fan mode 2 If you drain the water when the tank is not filled with water Please take out the tank after the power has been switched off for 3 minutes so as to prevent the remained condensed water from dropping into the machine 3 There s a rubber tube inside the position where the tank is placed lt is used to cool the pipeline so be sure not to pull off the rubber lid and drain the water inside when the machine is used 8 Method of consecutive drainage Water exit groove Water exit mouth Drain component drain pipe 1 Take out the drain hose 2 Pull out the Consecutive Drain Groove Do not pull out the groove in case other than consecutive drain so as to avoid moistening the carpet etc 7
