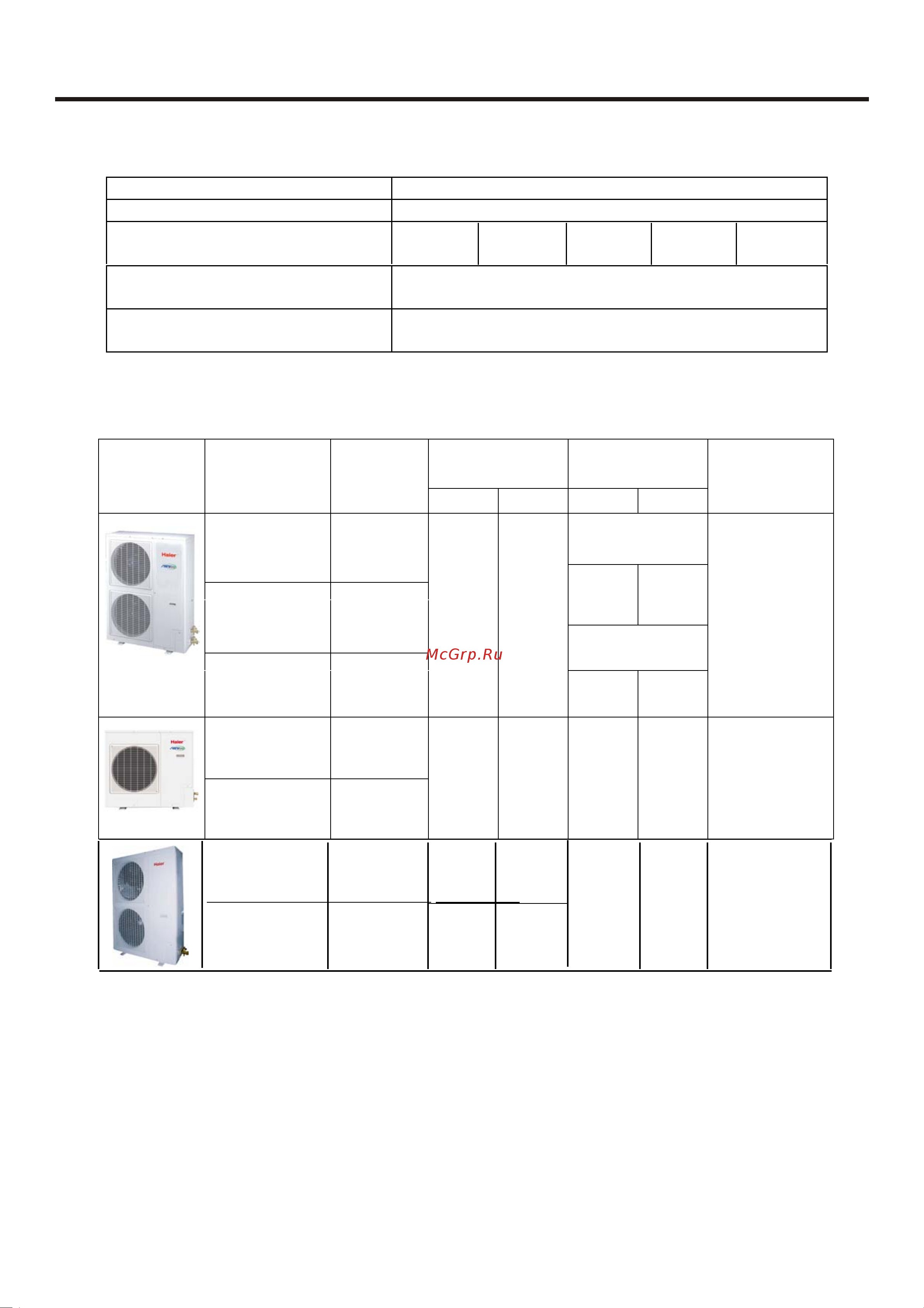

Equivalent power of outdoor unit
Model of outdoor unit
Total amount of indoor units can be
connected with
Types of indoor units can be
connected with
Capacity of indoor units can be
connected with
3HP
AU242FHAHA AU242FHBHA
3 sets 3 sets
3 sets
9000~27000BTU/h
2 sets 1 sets
See next page table Indoor units
3. Models of indoor and outdoor units
Outdoor units
Capacity
(BTU/h)
Connect capacity
(HP)
Appearance Model
Refrigerant
Cooling Heating Min Max
Max. indoor
units can be
connected
Single system
AU422FIAHA R22
1.0 3.0
AU422FIAIA
R22
Two systems
(5HP)
AU422FIBIA
R407C
41000 48000
2.0 6.0
6
AU242FHAHA R22
(3HP)
AU242FHBHA R407C
24000 29000 1.0 3.0 3
AU482FIAHA R22 48000 56000
AU48NFIAHA R22 48000 56000
1.0 6.0
8
***
