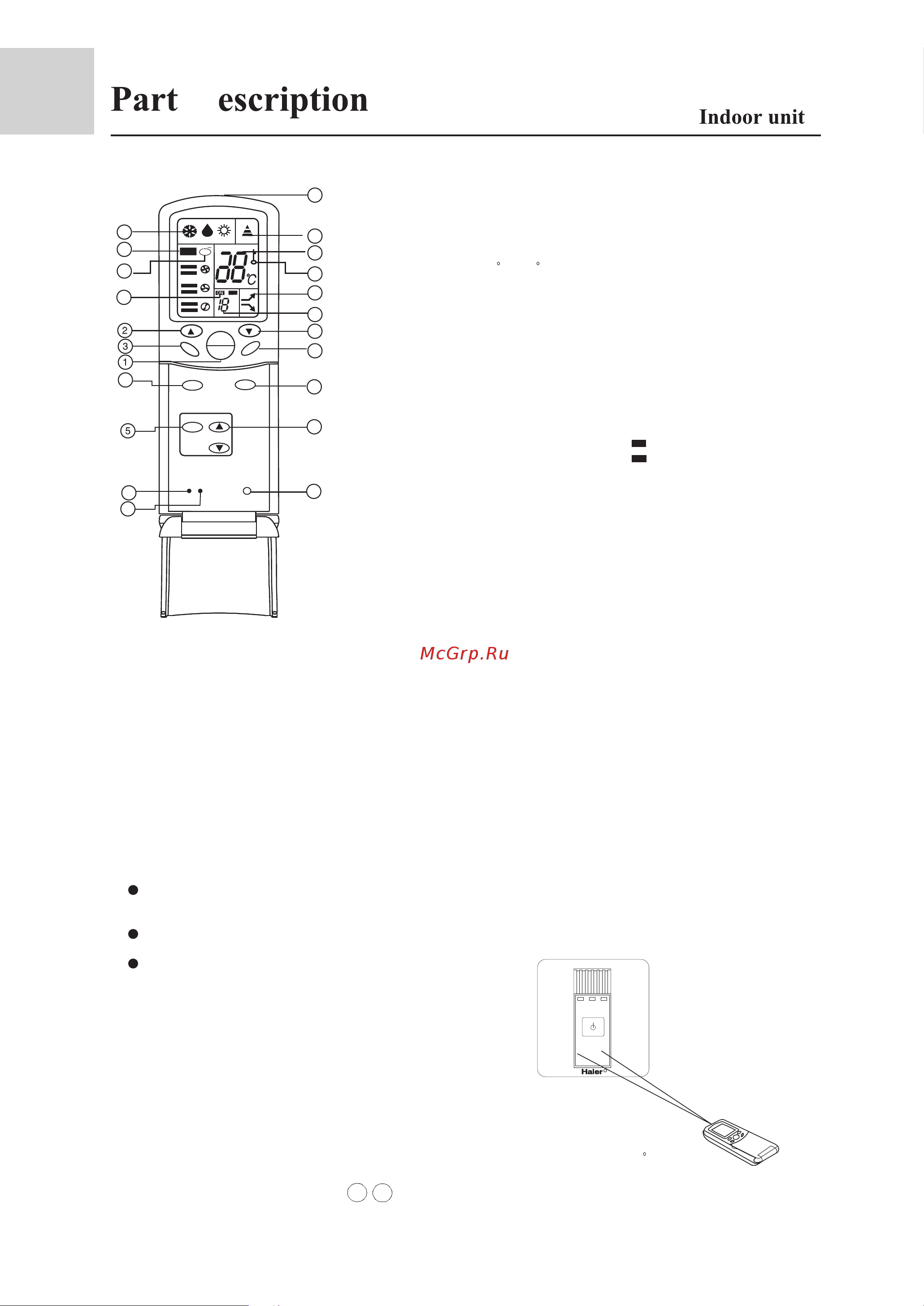

Haier AE142FCAKA [8/37] Remote lcd display contents and key name and each key function introduction
![Haier AE072FCAKA [8/37] Remote lcd display contents and key name and each key function introduction](/views2/1821687/page8/bg8.png)
7
TEMP
HEALTH
FAN
MODE
SWING
TIMER
ON
OFF
LOCK
RESET
Make sure that the remote controller is used within 7 meters from receiver window
of the wire controller and there are no obstructions in between.
The remote controller or wire controller should be handled with care.
When operating the remote controller in an area
where electronically controlled lights are
installed or wireless handsets are used, move
closer to the indoor unit as the function of the
remote controller might be affected by signals
from this equipment.
1.ON/OFF button
Used to turn on/off unit
2.Temperature Setting button
Used to set temperature,
temperature range: 16 C~30 C
4.Operation mode button
Used to set working mode:
Cooling, Dehumidifying,
Heating
5.Timer button
Used to set the
mode of timer
When the remote
controller appears
abnormal condition,
use a sharp-pointed
article to press this
button to make the
wire controller
resume normal
6.Reset button
7.Fan speed button
Used to set fan speed
8.Swing button
Used to set Auto Swing or
Fixed air sending direction
9.Time Adjusting button
11.Working mode display
12.Fan speed display
14.Timer ON/OFF display
18.Super/Soft operation display
Remote LCD display contents and key name and each key function introduction
3.Health
Used to control the
generating oxygen function
and negative ion-function
10.Lock button
Press on time lock all the
key sand press another time
concel the lock.
Used to display the fan
speed. After setting
"AUTO" function,air speed
can auto change according
to the temp. difference
between the room temp. and
setting temp.
20.Signal launch head
Use to send signal to the
indoor unit receive window.
19.Timing time display
Display timing open time
or timing close time
17.Lock display
Display the key have been
locked.
16.Temperature display
Display the setting temp.
value.
15.Signal display
Sending out signal to the
remote receiver.
13.Health running display
Used to display healthy
running.
R
Display Timing mode.
"Blank" No Timing
" " Timing off
" " Timing on
CODE
21.Code
Select remote control receive
code(H-MRV Remote cnotrol
type use A code)
OFF
ON
OFF
H
AUTO
ion
6
4
2
7
8
9
10
12
13
14
15
16
17
18
19
11
20
Note:
1.After change the battery, working condition resume as follows:
Working mode:cooling Temp. 26 C
Timming mode: normal Air speed: Auto
2.The units used in this manual no 8 18 functions. The health key can only control the
negative generator.
D
21
B A
