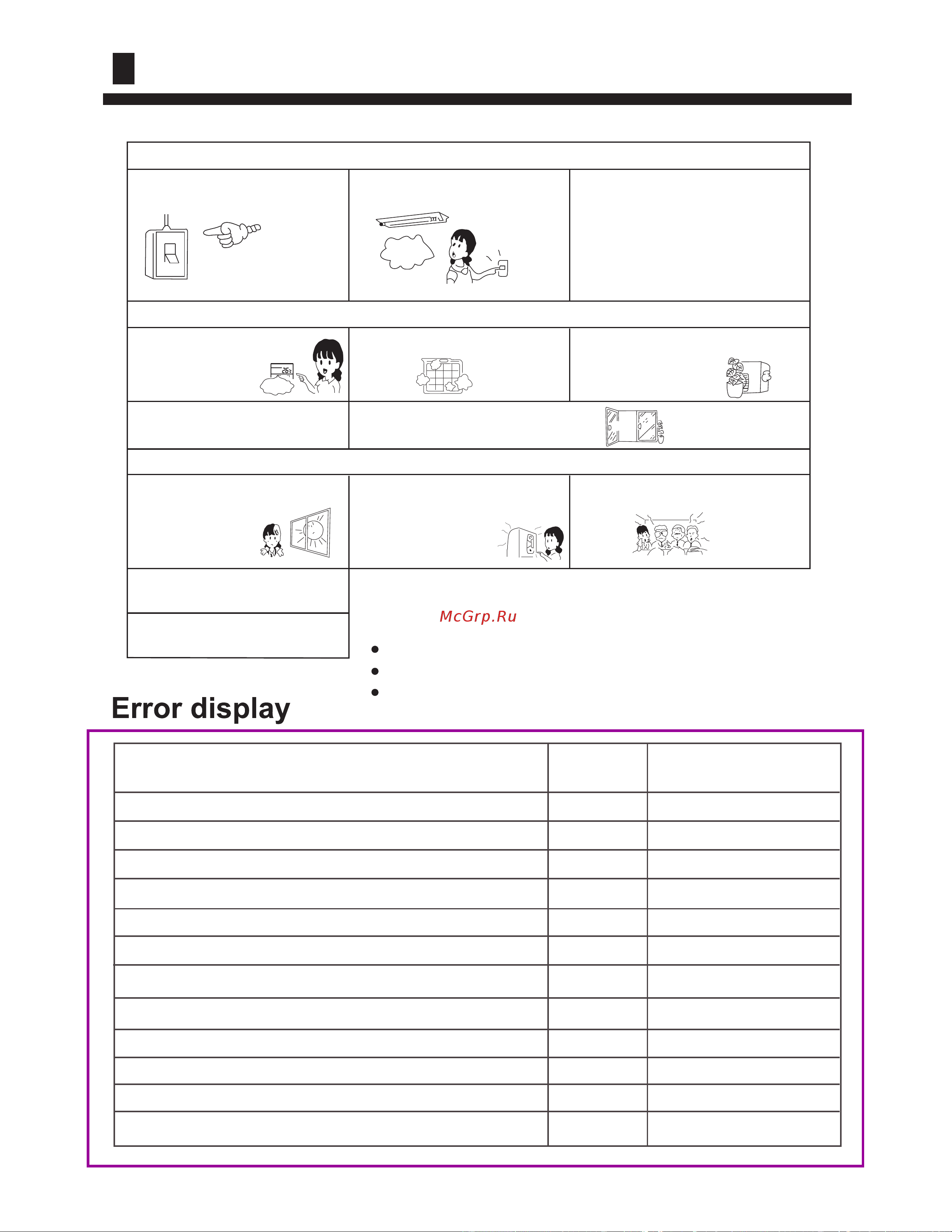

Haier AC28NACBEA [11/26] Trouble shooting
![Haier AC42NACBEA [11/26] Trouble shooting](/views2/1821765/page11/bgb.png)
9
Before ask for services, please first check your unit against the following.
Air conditioner won't start.
Poor cooling or heating
Is power supply switch
turned on?
Power supply switch
is not set at ON.
Is city power supply normal? Is leakage current breaker
activated?
This is very dangerous, please
disconnect power supply
immediately and contact your
dealer.
Are operation control
adjusted correctly
as specified?
Is air filter too dirty?
Are there any obstacles in inlet
or outlet grill?
Are horizontal louvers at up
position (in heating mode)?
Any doors or windows left
open?
Is there any direct sunlight
in the room?
If there are unexpected heat
sources in the room?
Too many people in the room?
Poor cooling
Is air conditioner in standby
condition in heating mode?
Cold air blows out
(in heating mode)
If your unit still can't work properly after above mentioned
checks, or following problems occur, please stop it immediately
and contact your dealer.
Fuses or circuit breakers often blow out.
Water comes out in cooling/dry operation.
Operation is abnormal or sound is heard.
Trouble Shooting
Failure description
Room temp. sensor abnormal
Indoor coil temp. sensor abnormal
Outdoor coil temp. sensor abnormal
Over-current malfunction
Communication malfunction between indoor and wired controller
Communication malfunction between indoor and outdoor abnormal
Coil gas pipe temp. Sensor abnormal
Code on wired Flash times of indoor
controller receiver board
01 Power LED flashes 1 time
02 Power LED flashes 2 times
4A Power LED flashes 3 times
49 Power LED flashes 4 times
48 Power LED flashes 5 times
53 Power LED flashes 6 times
07 Power LED flashes 8 times
06 Power LED flashes 9 times
03 Power LED flashes 12 times
Outdoor temp. sensor abnormal
High / Low pressure abnormal
Temperature protection malfunction
0D Power LED flashes 13 times
Drainage system malfunction
08 Power LED flashes 10 times
Alarm of exterior annunciator
0B Power LED flashes 11 times
Proper
temp
Power
failure?
*
