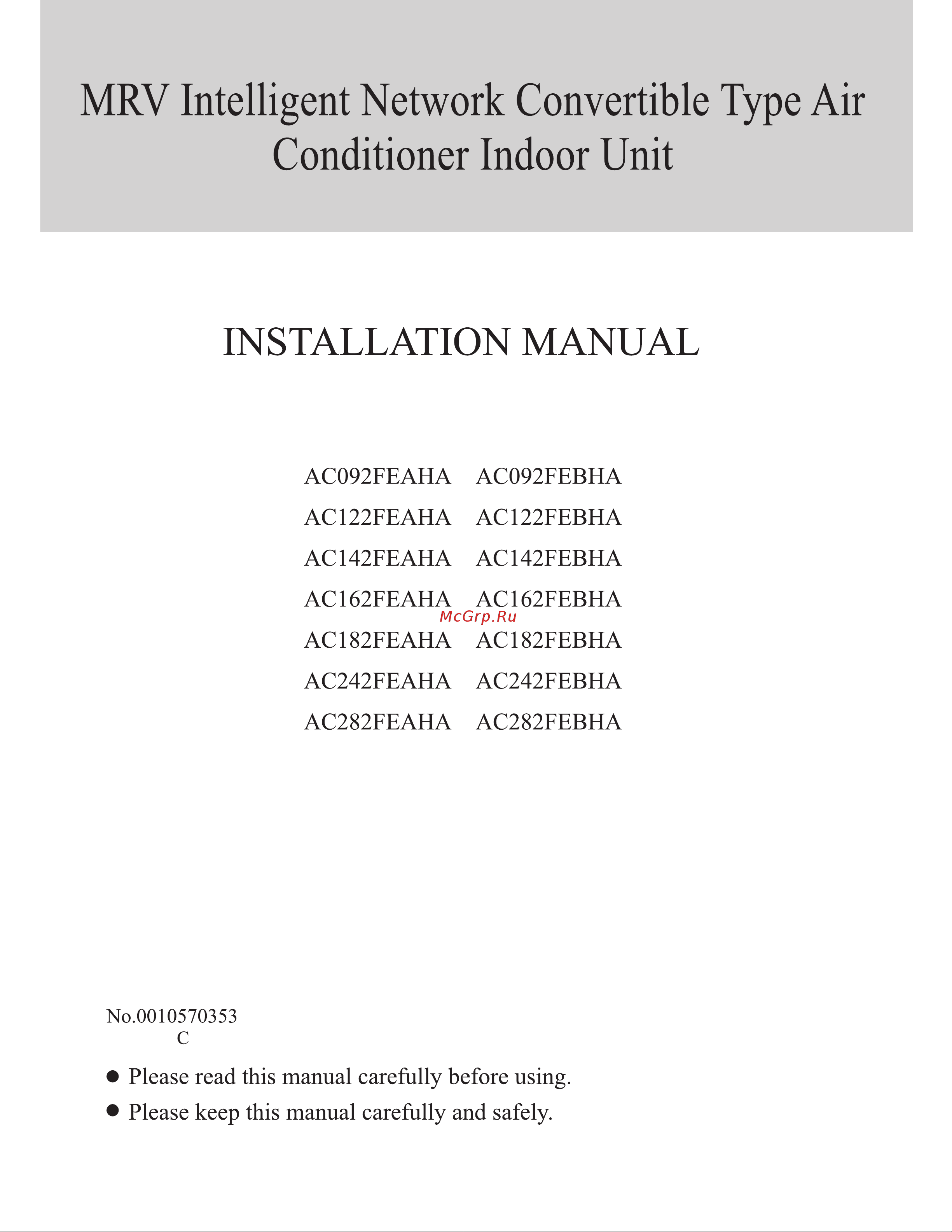

Haier AC092FEAHA Инструкция по монтажу онлайн
Содержание
- Safety precautions 2
- Notice 3
- Selection of installation place 3
- Installation in under ceiling 4
- Installation of air conditioner 4
- Installation of suspending bolts 4
- Prior to installation 4
- Directly use angle iron to set supporting angle iron use inlet hinge joint inlet plug or inlet bolt 5
- Fasten hexagon bolt and fix the air conditioner 5
- Insert hexagon bolt into carved fillet 5
- Install beam wood on the girder and set suspending bolts 5
- Installation of air conditioner 5
- Installation of air conditionert 5
- Installation of attached hexagon bolt 5
- Installation position of suspending bolts 5
- Installation status of supporting frame 5
- Internal suspension ac092 122 142 162feaha ac092 122 142 162febha 5
- Internal suspension ac182 242 282feaha ac182 242 282febha 5
- Please refer to positions of suspending bolts printed on installation paste board of ac092 122 142 162feaha ac092 122 142 162febha type 5
- Steel structure old concrete building 5
- Wood building new concrete building 5
- Installation of floor console 6
- Refrigerant distribution tube 7
- Requirentents 8
- Undulation 8
- Electric wiring 9
- Remote controller wire 9
- Code switch aw02 on base board of indoor unit has the function of setting centralized control address group number group number can be set by changing ì on offî status in ì 1 6î code positions code switch sw02 and its dialing codes are shown as following diagram 10
- One set of remote controller can control a group of 16 indoor unit at the most refer to electrical wiring layout items for wiring layout between indoor unit arrange wires between remote controller and indoor unit according to the following sequence 1 set number setting switch sw01 on pc board of each indoor unit with number 1 as ì 1î number 2 as ì 2î ö ö the machine directly connecting remote controller must be set as number 1î number 1 is the host while others are subsidiaries 2 connect terminals a b c of the remote controller with that of number 1 indoor unit respectively according to same numbers 3 connect terminals b c of number 1 indoor unit with that of number 2 respectively according to same numbers 4 connect terminals b c of number 2 indoor unit with that of number 3 respectively according to same numbers 5 by analogy of the above stop until connecting to terminals b c of number 16 at the maximum 6 disassemble short connection wire to cn12 terminal on control base board of numb 10
- Operation control 10
- Relation between combination of ì on offî status in ì 1 6î code positions and group number are shown as in right table when ì 7î position of sw02 is in ì offî status group number can be set either by dialing codes on sw02 or with circuit controller while ì 7î position of sw02 is in ì onî status group number can only be set either by dialing codes on sw02 10
- Requirement 10
- Setting of group number of indoor subassemblies 10
- Solution of group control 10
- Wires of remote controller between indoor unit should be power cord more than 1mm with length less than 500 m total length from remote controller to number 16 machine 10
- Settings of heating temperature compensation usage of switch sw03 11
- Usage of emergency switch usage of switch sw04 11
- Disorders in trial run 12
- Notice 12
- Requirement 12
- Trial run 12
