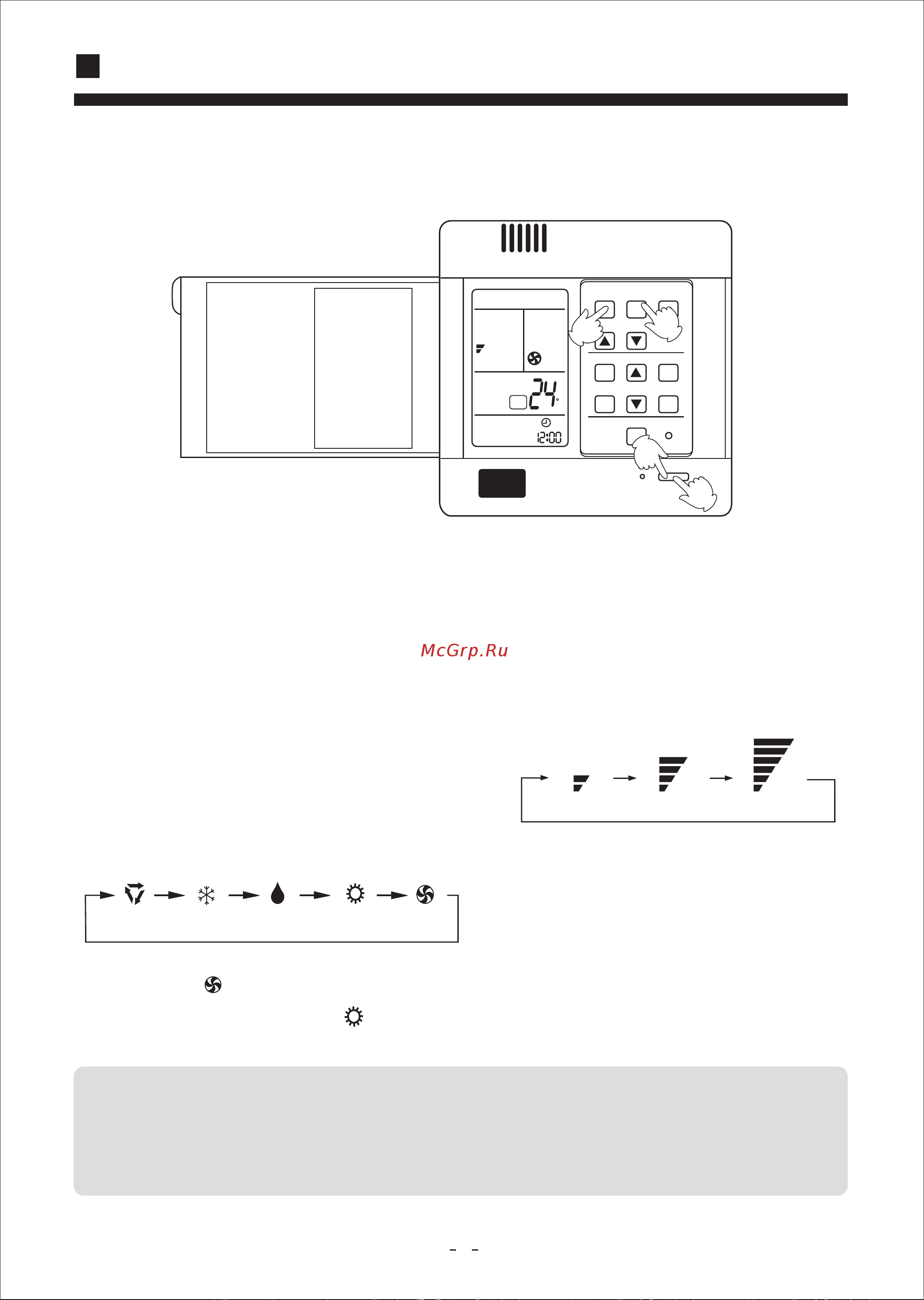

Haier AU182ARNAC [10/32] Operation
![Haier AU182ARNAC [10/32] Operation](/views2/1822394/page10/bga.png)
MODE
FAN SWING
TEMP
CLOCK SET
TIMER SLEEP
RESET
FILTER RESET
ON/OFF
1
4
3
2
AM
ROOM
OPERATION
9
Fan operation
Enjoy yourself by just a gentle press.
(1) Unit start
(2) Select operation mode
(3) Fan
Press ON/OFF button, unit starts.
Previous operation status appears on display.
(Not Timer setting)
Power indicator lights up.
Press MODE button. For each press, operation
mode changes as follows:
Unit will run in selected mode.
stop display at " " FAN.
Press FAN button. For each press, fan speed
changes as follows:
Unit will run at selected fan speed.
Wire controller can memorize settings in each operation mode. To run it next time just select
the operation mode and it will start with the previous setting.
No reselecting is needed.(TIMER ON/OFF needs reselecting)
In FAN mode, temp. can't be set.
Hints
For cooling only type no " HEAT " function.
AUTO COOL DRY FAN
The air conditioner has the function of POWER
FAILURE RESUME.
HEAT
LOW
MID HIGH
C
(4) Unit stop
Press ON/OFF button.
Only time and room temp remains on LCD.
All indicators go out.
Vertical flap closed automatically.
