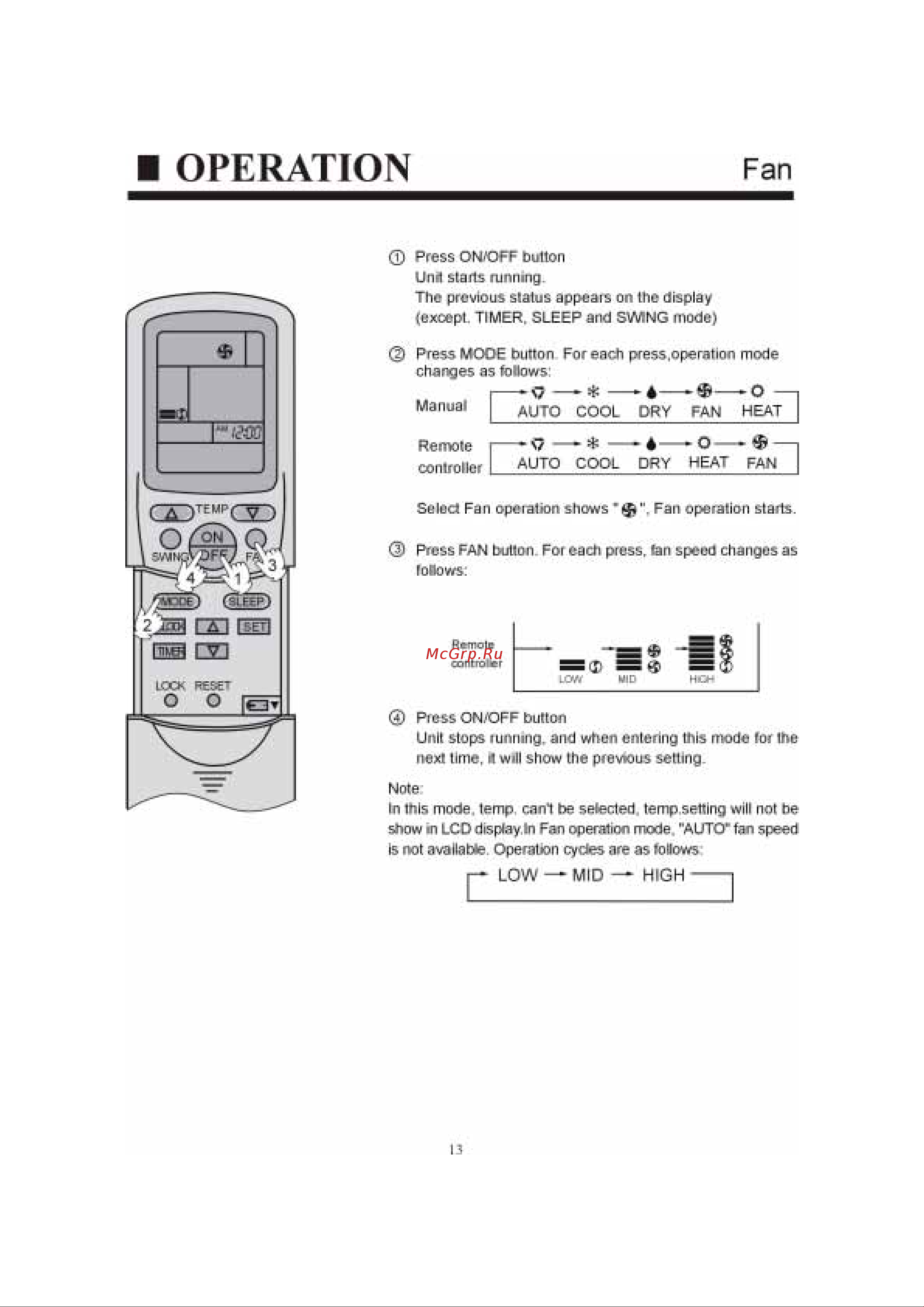

OPERATION Fan Q Press ONOFF Dutton Unit starts running The previous status appeals on the display except TIMER SLEEP and SWING mode Press MODE button For each press operation mode changes as follows Manual AUT0 COOL DRY FAN HEAT Remote 7 4 0 controller AUTO COOL DRY HEAT FAN Select Fan opeiation shows Fan operation starts Press FAN button For each press fen speed changes as foBows Remote contrôler Press ON OFF button Unit stops running and when entering this mode for the next lime fl will show the previous setting Note In this mode temp can be selected temp setting will not be show in LCD dispay ln Fan operation mode AUTO fan speed Is not available Operation cydes are as follows r LOW MID HIGH I
