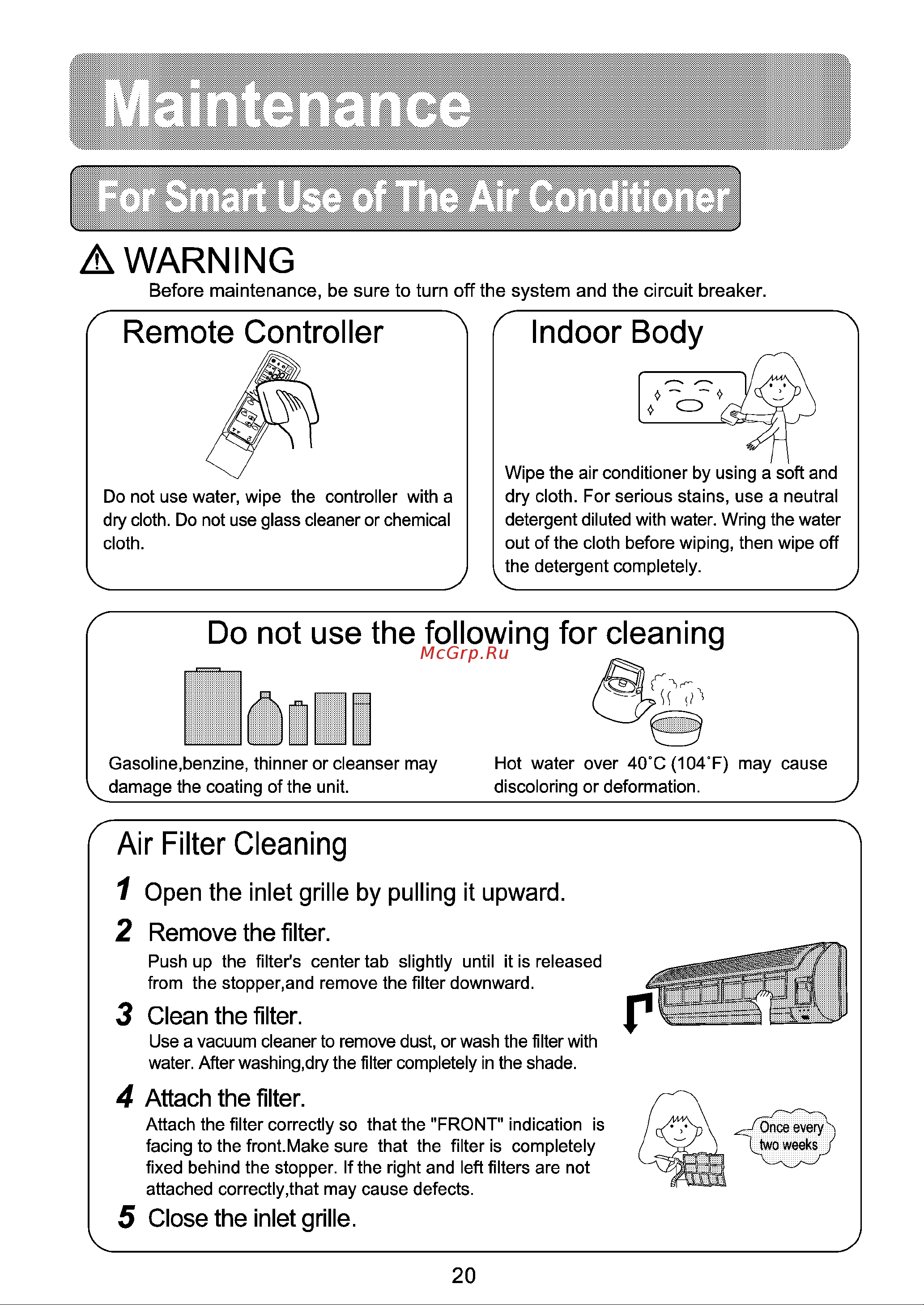

WARNING Before maintenance be sure to turn off the system and the circuit breaker Remote Controller Indoor Body Wipe the air conditioner by using a soft and dry cloth For serious stains use a neutral detergent diluted with water Wring the water out of the cloth before wiping then wipe off the detergent completely Do not use water wipe the controller with a dry cloth Do not use glass cleaner or chemical cloth Do not use the following for cleaning Hot water over 40 C 104 F may cause discoloring or deformation Gasoline benzine thinner or cleanser may damage the coating of the unit Air Filter Cleaning 7 Open the inlet grille by pulling it upward 2 Remove the filter Pushup the filter s center tab slightly until it is released from the stopper and remove the filter downward 3 Clean the filter Use a vacuum cleaner to remove dust or wash the filter with water After washing dry the filter completely in the shade 4 Attach the filter Attach the filter correctly so that the FRONT indication is facing to the front Make sure that the filter is completely fixed behind the stopper If the right and left filters are not attached correctly that may cause defects 5 Close the inlet grille 20 Once every two weeks
