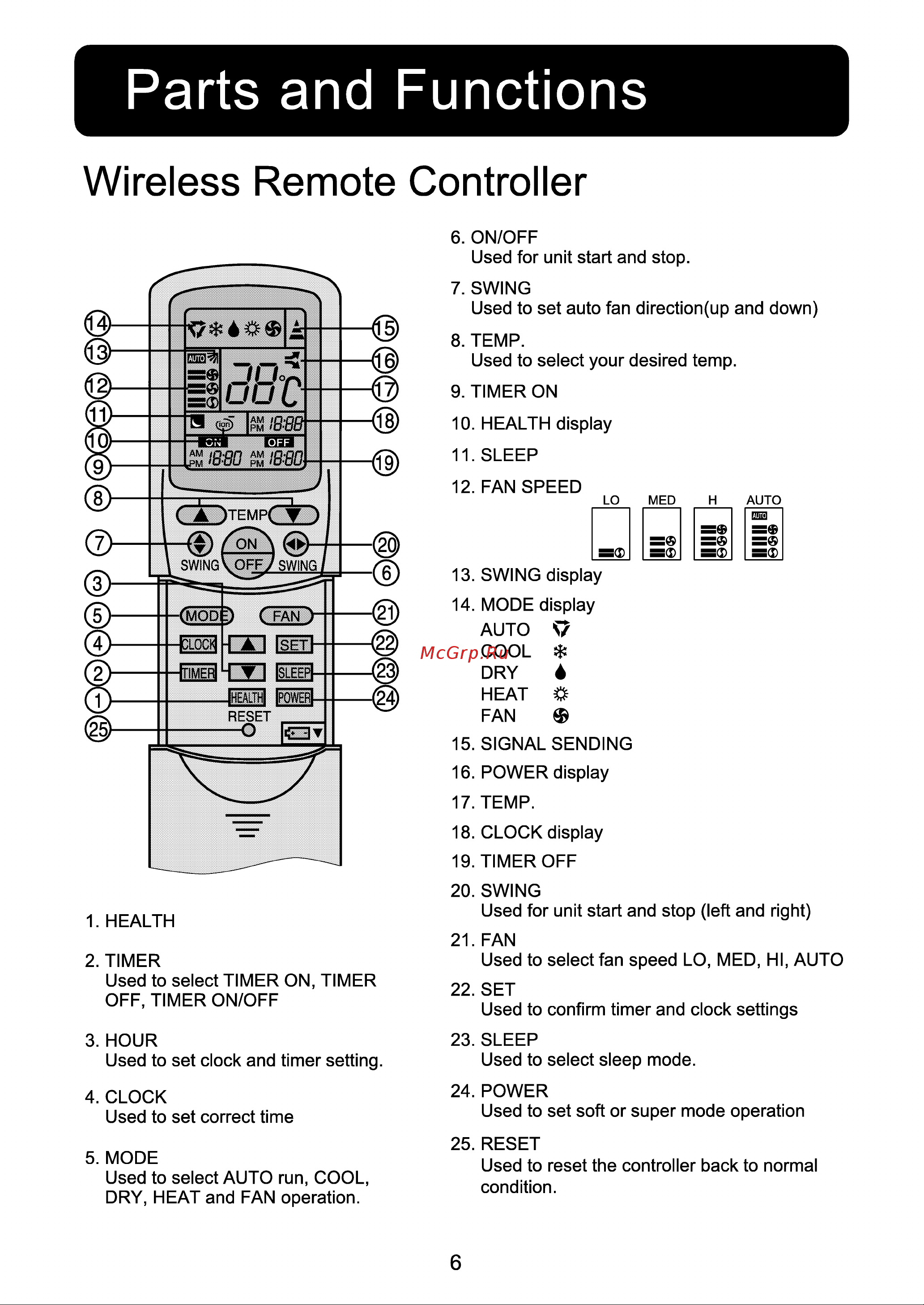

Parts and Functions Wireless Remote Controller 6 ON OFF Used for unit start and stop 7 SWING Used to set auto fan directlon up and down 8 TEMP Used to select your desired temp 9 TIMER ON 10 HEALTH display 11 SLEEP 12 FAN SPEED LO MED AUTO rïïïïil æ 13 SWING display 14 MODE display AUTO V COOL DRY 4 HEAT FAN 15 SIGNAL SENDING 16 POWER display 17 TEMP 18 CLOCK display 19 TIMER OFF 1 HEALTH 2 TIMER Used to select TIMER ON TIMER OFF TIMER ON OFF 20 SWING Used for unit start and stop left and right 21 FAN Used to select fan speed LO MED HI AUTO 22 SET Used to confirm timer and clock settings 3 HOUR Used to set clock and timer setting 23 SLEEP Used to select sleep mode 4 CLOCK Used to set correct time 24 POWER Used to set soft or super mode operation 5 MODE Used to select AUTO run COOL DRY HEAT and FAN operation 25 RESET Used to reset the controller back to normal condition 6
