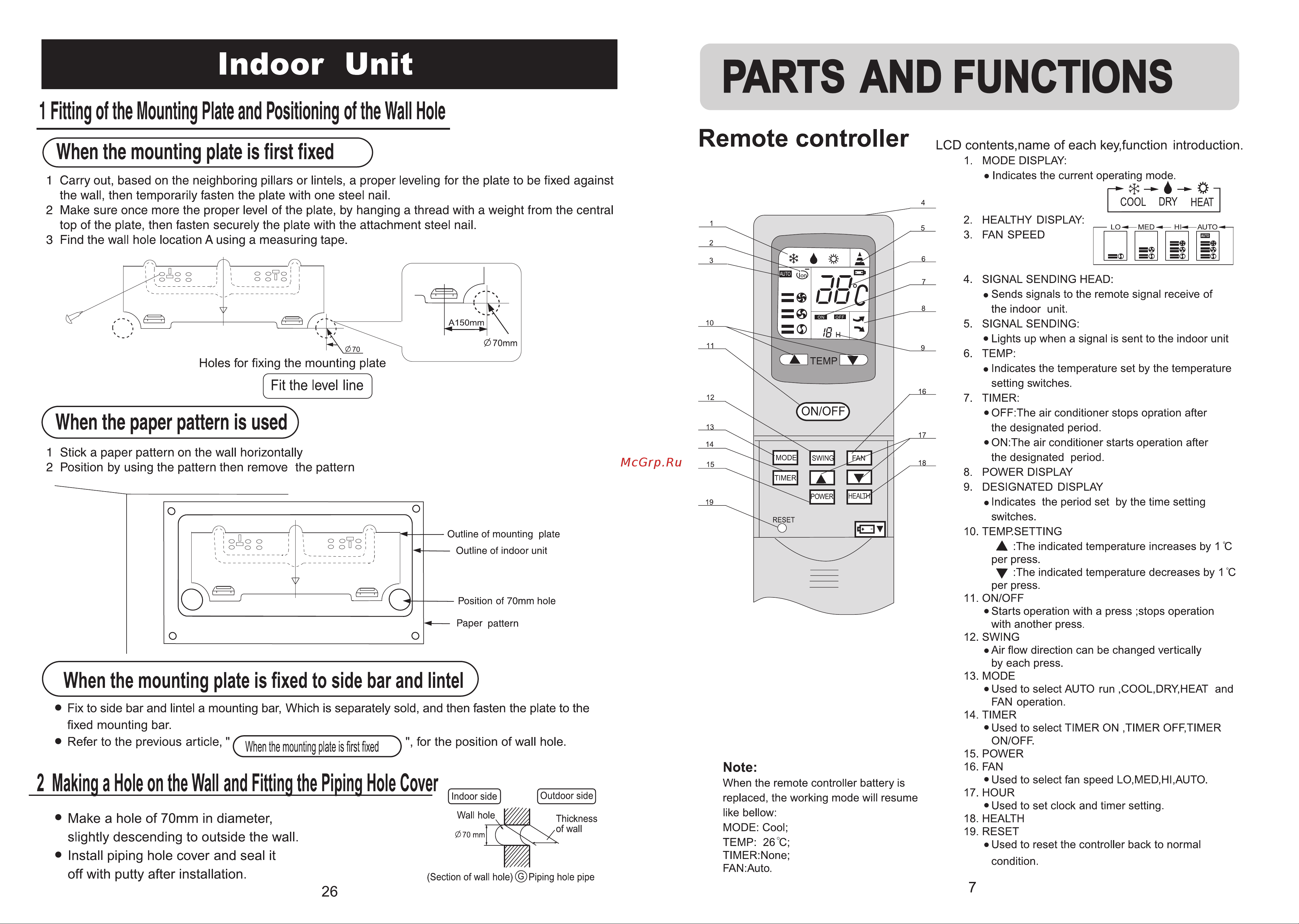

Indoor Unit PARTS AND FUNCTIONS 1 Fitting of the Mounting Plate and Positioning of the Wall Hole Remote controller When the mounting plate is first fixed LCD contents name of each key function introduction 1 MODE DISPLAY Indicates the current operating mode 1 Carry out based on the neighboring pillars or lintels a proper leveling for the plate to be fixed against the wall then temporarily fasten the plate with one steel nail 2 Make sure once more the proper level of the plate by hanging a thread with a weight from the central top of the plate then fasten securely the plate with the attachment steel nail 3 Find the wall hole location A using a measuring tape COOL DRY HEAT 2 HEALTHY DISPLAY 3 FAN SPEED 4 SIGNAL SENDING HEAD Sends signals to the remote signal receive of the indoor unit 5 SIGNAL SENDING Lights up when a signal is sent to the indoor unit 6 TEMP Indicates the temperature set by the temperature setting switches 7 TIMER OFF The air conditioner stops opration after When the paper pattern is used the designated period ON The air conditioner starts operation after 1 Stick a paper pattern on the wall horizontally 2 Position by using the pattern then remove the pattern the designated period 8 POWER DISPLAY 9 DESIGNATED DISPLAY Indicates the period set by the time setting switches 10 TEMP SETTING When the mounting plate is fixed to side bar and lintel Fix to side bar and lintel a mounting bar Which is separately sold and then fasten the plate to the fixed mounting bar Refer to the previous article when the mounting plate is first fixed for the P sition of wa hole 2 Making a Hole on the Wall and Fitting the Piping Hole Cover Note When the remote controller battery is indoor side Outdoor side replaced the working mode will resume like bellow Make a hole of 70mm in diameter MODE Cool slightly descending to outside the wall Install piping hole cover and seal it off with putty after installation TEMP 26 C TIMER None FAN Auto The indicated temperature increases by 1 C per press The indicated temperature decreases by 1 C per press 11 ON OFF Starts operation with a press stops operation with another press 12 SWING Air flow direction can be changed vertically by each press 13 MODE Used to select AUTO run COOL DRY HEAT and FAN operation 14 TIMER Used to select TIMER ON TIMER OFF TIMER ON OFF 15 POWER 16 FAN Used to select fan speed LO MED HI AUTO 17 HOUR Used to set clock and timer setting 18 HEALTH 19 RESET Used to reset the controller back to normal condition Section of wall hole Piping hole pipe 26 7
