Haier AU182AFMFA [6/14] Installation of outdoor unit

Содержание

• Installation instructions 1
• Outdoor unit 1
• Room air conditioner 1
• Name of parts 2
• Carefully read the following information in order to operate the airconditioner correctly 3
• Safety cautions 3
• Warning 3
• Earthing 4
• Earthing wire should not be con nected to the gas pipe water pipe lightning rod or phone line in correct earthing may cause shock 4
• If conditioner is installed in a small room be sure to take every measure in order to prevent suffocation accident even in case of refrigerant leakage 4
• Incorrect installation may cause water leak electrical shock and fire hazard 4
• Incorrect installation may cause water leaking electrical shock and fire hazard 4
• Incorrect pipe use may cause water leaking 4
• It easily cause electrical shock without circuit breaker 4
• May not use wire or any other materials replacing fuse other wise may cause faults or fire accidents 4
• Otherwise will be shocked 4
• Safety cautions 4
• The falling of goods and people may cause accidents 4
• Warning 4
• Accessories 5
• Installation procedure 5
• Selection of the place of installation 5
• Installation of outdoor unit 6
• Installation procedure 6
• 1 outline piping 8
• Installation of outdoor unit 8
• Installation procedure 8
• Refrigerant piping 8
• 2 piping size 9
• 3 limitations for one way piping length and vertical height difference 9
• 4 piping connection 9
• Installation procedure 9
• Refrigerant piping 9
• Air discharging method 10
• Check if the pressure drops 10
• Installation procedure 10
• Charging amount of refrigerant 11
• Installation procedure 11
• Piping and indoor unit vacuumizing 11
• Refrigerant piping 11
• 1 selection of size of power supply and interconnecting wires 12
• 2 wiring connection 12
• A warning 12
• Au182afaea au182afmea au182afafa au182afmfa 12
• Au282ahafa 12
• Danger of bodily injury or death 12
• Electric wiring 12
• Electric wiring work should be conducted only by authorized personnel do not connect more than three wires to the terminal block always use round 12
• Installation procedure 12
• Make wiring to supply power to the outdoor unit so that the power for the indoor unit is supplied by terminals 12
• Precautions for electric wiring 12
• Turn off electric power at circuit breaker or power source before making any electric connections ground connections must be completed before making line voltage connections 12
• Type crimped terminal lugs with insulated grip on the ends of the wires 12
• Use copper conductor only select wire sizes and circuit protection from table below this table shows 20 m length wires with less than 2 voltage drop 12
• Installation procedure 13
• A caution 14
• Electric wiring 14
• Installation procedure 14
• Run the unit continuously for about 30 minutes and check the following 14
• Suction pressure at check joint of service valve for gas pipe discharge pressure at check joint on the compressor discharge pipe temperature difference between return air and supply air for indoor unit 14
• Test run 14
• This unit will be started instantly without on operation when electric power is supplied be sure to execute off operation before electric power is disconnected for servicing 14
• Trouble display 14

Похожие устройства

• Haier AU282AHAFA Инструкция по эксплуатации
• Haier AP182AKAAA Инструкция по эксплуатации
• Haier AP182AZAAA Инструкция по эксплуатации
• AnyTone AT-310M Инструкция по эксплуатации
• AOR AR-3000A Инструкция по эксплуатации
• Baofeng BF-T3 Инструкция по эксплуатации
• Baofeng KS-315 Инструкция по эксплуатации
• Baofeng Mini 1 Инструкция по эксплуатации
• Baofeng UV-5R 3800 Инструкция по эксплуатации
• BFDX BF-RT7500 Инструкция по эксплуатации
• CB TTI ТСВ-775 Инструкция по эксплуатации
• Codan NGT SRx Инструкция по эксплуатации
• Comet CAA-500 Mark II Инструкция по эксплуатации
• FlightLine FL-M1000E Инструкция по эксплуатации
• Yaesu FT-4Xr Инструкция по эксплуатации
• Yaesu FT-4Xe Инструкция по эксплуатации
• Yaesu FT-897 Инструкция по эксплуатации
• Yaesu FTM-300DR Инструкция по эксплуатации
• Yaesu FTM-300DE Инструкция по эксплуатации
• Yaesu FTM-6000R Инструкция по эксплуатации

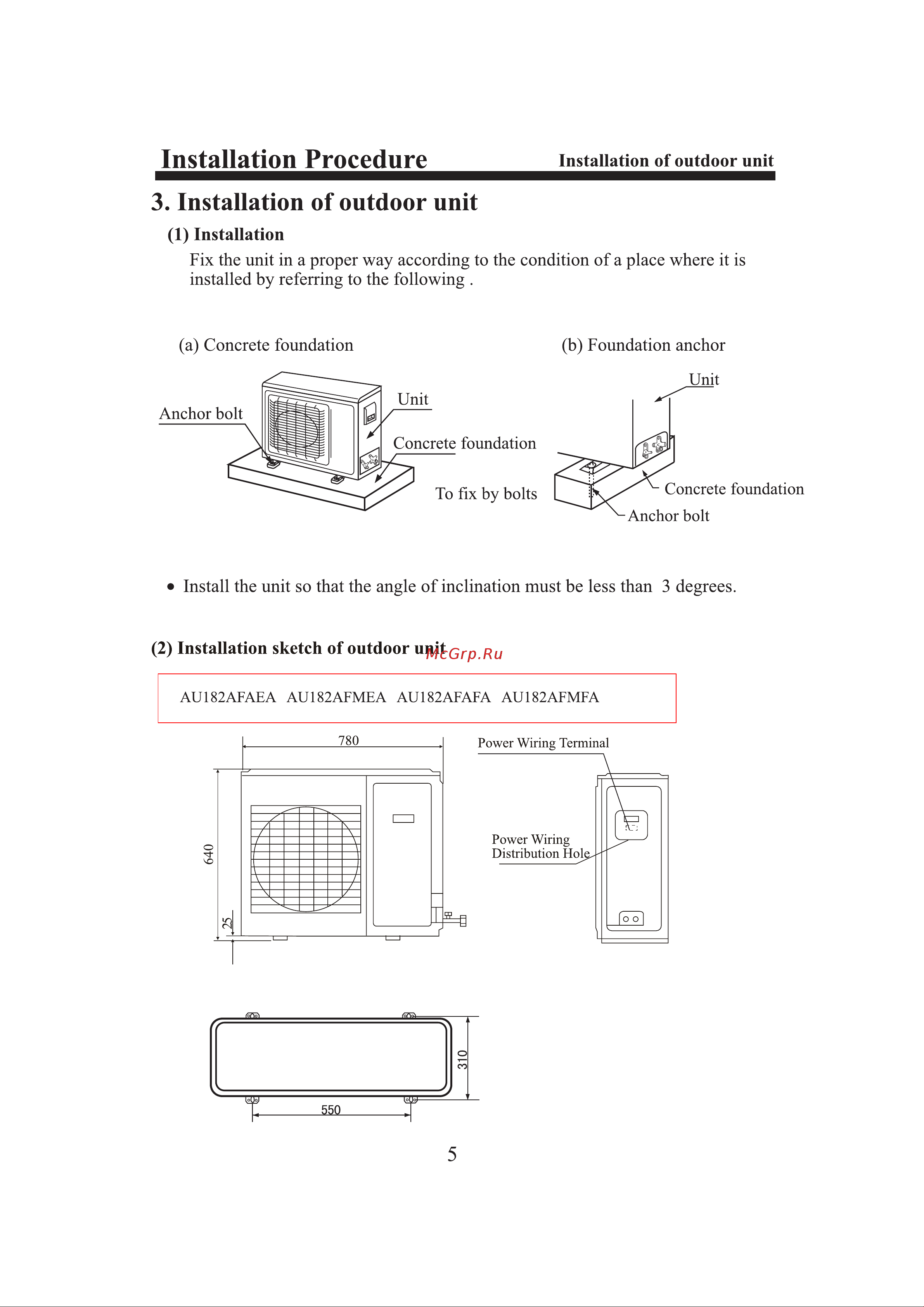

Installation Procedure Installation of outdoor unit 3 Installation of outdoor unit 1 Installation Fix the unit in a proper way according to the condition of a place where it is installed by referring to the following b Foundation anchor a Concrete foundation Install the unit so that the angle of inclination must be less than 3 degrees 2 Installation sketch of outdoor unit AU182AFAEA AU182AFMEA AU182AFAFA AU182AFMFA 780 Power Wiring Terminal Power Wiring Distribution I lo w 5
