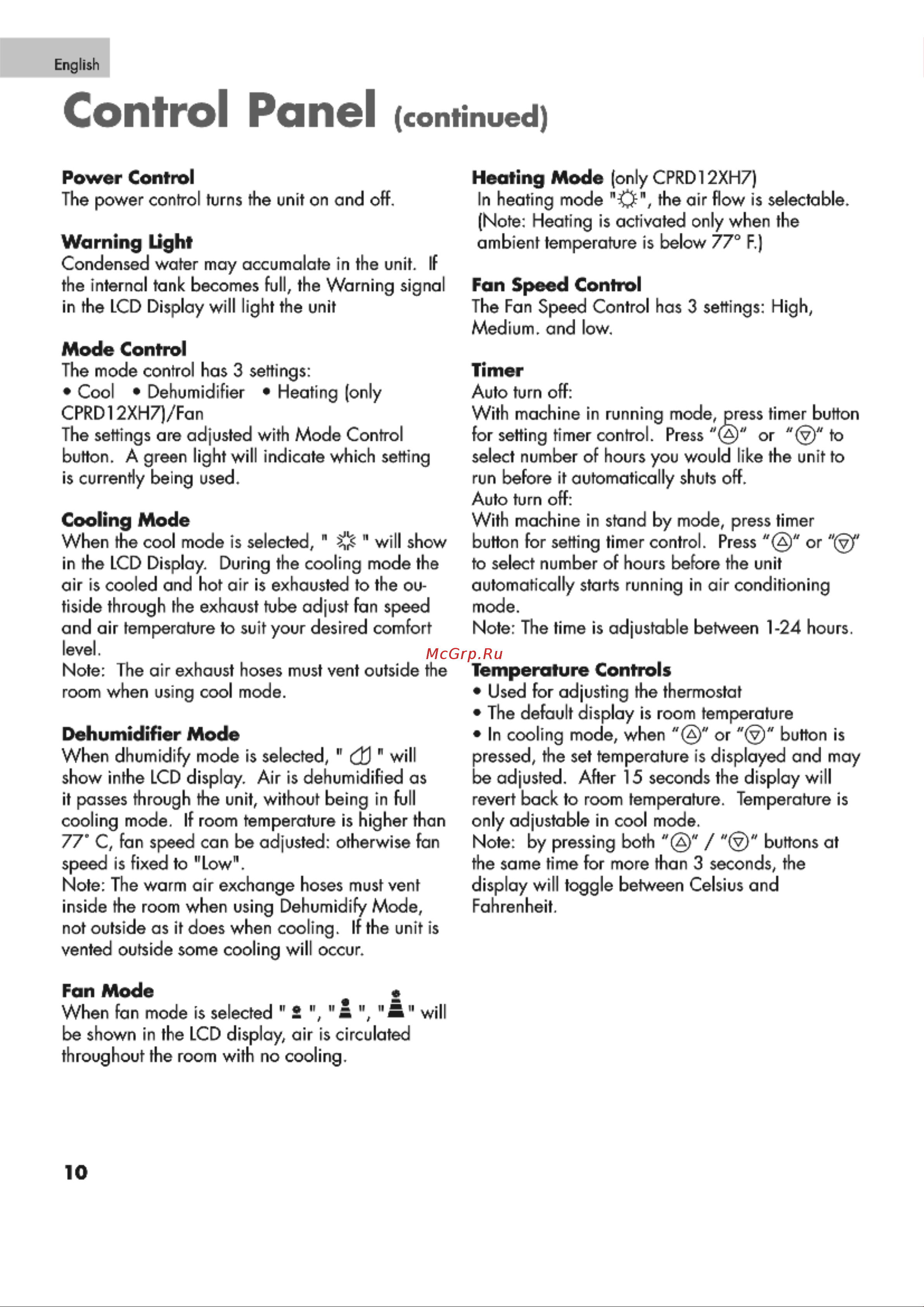

English Control Panel continued Power Control The power control turns the unit on and off Warning Light Condensed water may accumalafe in the unit If the internal tank becomes full the Warning signal in the LCD Display will light the unit Mode Control The mode control has 3 settings Cool Dehumidifier Heating only CPRD12XH7 Fan The settings are adjusted with Mode Control button A green light will indicate which setting is currently being used Cooling Mode When the cool mode is selected will show in the LCD Display During the cooling mode the air is cooled and hot air is exhausted to the outiside through the exhaust tube adjust fan speed and air temperature to suit your desired comfort level Note The air exhaust hoses must vent outside the room when using cool mode Dehumidifier Mode When dhumidify mode is selected 11 will show inthe LCD display Air is dehumidified as it passes through the unit without being in full cooling mode If room temperature is higher than 77 C fan speed can be adjusted otherwise fan speed is fixed to Low Note The warm air exchange hoses must vent inside the room when using Dehumidify Mode not outside as it does when cooling If the unit is vented outside some cooling will occur Fan Mode When fan mode is selected 2 1 will be shown in the LCD display air is circulated throughout the room with no cooling 10 Heating Mode only CPRD12XH7 In heating mode O the air flow is selectable Note Heating is activated only when the ambient temperature is below 77 F Fan Speed Control The Fan Speed Control has 3 settings High Medium and low Timer Auto turn off With machine in running mode press timer button for setting timer control Press or to select number of hours you would like the unit to run before it automatically shuts off Auto turn off With machine in stand by mode press timer button for setting timer control Press or to select number of hours before the unit automatically starts running in air conditioning mode Note The time is adjustable between 1 24 hours Temperature Controls Used for adjusting the thermostat The default display is room temperature In cooling mode when or button is pressed the set temperature is displayed and may be adjusted After 15 seconds the display will revert back to room temperature Temperature is only adjustable in cool mode Note by pressing both 2 buttons at the same time for more than 3 seconds the display will toggle between Celsius and Fahrenheit
