21

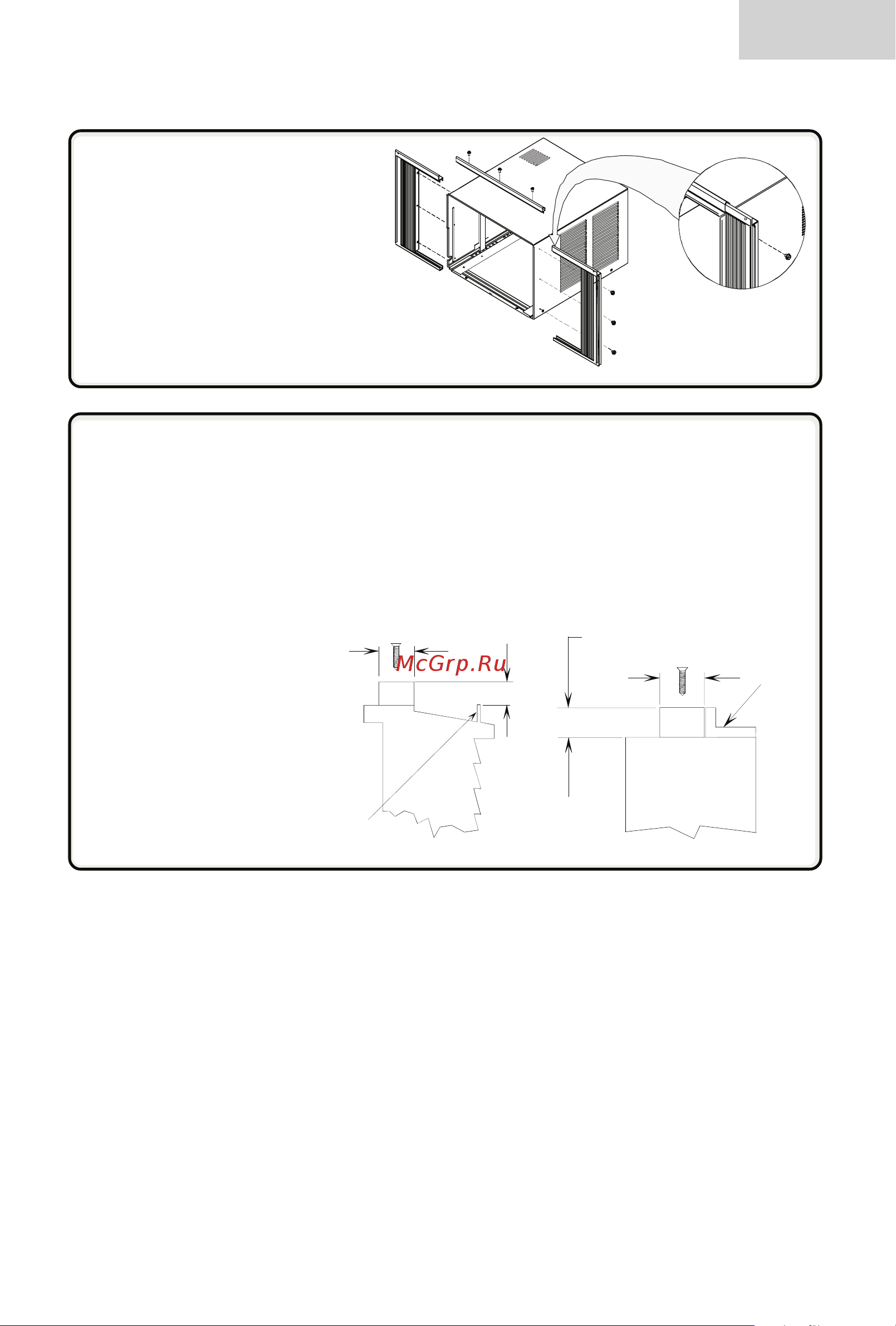

ASSEMBLE
CURTAINS/TOP
RAIL
2
PREPARE
WINDOW FOR
INSTALLATION
Inspectwindow track, sash,and sill
for it sability to support the weight of
air conditioner.
Measure width between window
moldings to ensureInstant Mount
will fit window frame. Instant Mount
models are designedfor windows
wide (the detail seepage 18)
Instant Mount kit supplied with unit
is designedfor mounting in most
double-hung windows without
storm windows. Forinstallation in
window frame with stormwindow ,
modify sill by adding wood strip
s
to
3
Mobile home window installation
Add wood strip (at least 1 1/2" wide)
along entire width of window sill.
Thicknessof wood strip should match
height of front lip on window frame.
Fastenwood strip to sill with a
minimum of three countersunkwood
screws(not supplied with kit). This
provides a smooth surface for
mountingair conditioner.
Storm window installation
If stormwindow frame does not allow
adequateclearancebelow sill (1/2"
required), remove stormwindow
frame or create clearance by adding a
wood strip (at least 1 1/2" wide) along
entire width of sill. Fastenwood strip
to sill with at least three countersunk
wood screws(not supplied with kit).
Thisprovides a smooth surface for
mountingair conditioner.
SI LL
W ood
Str i p
1/2"
Min imum
O
U
T
D
O
O
R
St orm Wi ndo w
Fram e
1 1/2"
Min imum
I
N
D
O
O
R
1 1/ 2"
Minimum
W ood
St rip
I
N
D
O
O
R
O
U
T
D
O
O
R
Window
Frame
Mus t be a mini mum
of 1/2" to cl ear
botto m rail on unit
(not included)
Slide lef t-hand curtain assembly
into lef t end of top and bottom
rails. Repeatfor right-hand curtain
assembly. Fastencurtain retainer
strips to sidesof outer casewith
six13/32" screws.
Install top rail with three 13/32"screws.
stormwindow frame.interferenceof
Thisraises unit and eliminates
inner and outer sills.
