Haier HSU-24C13 [5/15] Parts and functions
![Haier HSU-24C13 [5/15] Parts and functions](/views2/1825591/page5/bg5.png)
Air Conditioner
Edition:2006/01/09
HSU-09C13
HSU-12C13
HSU-18C13

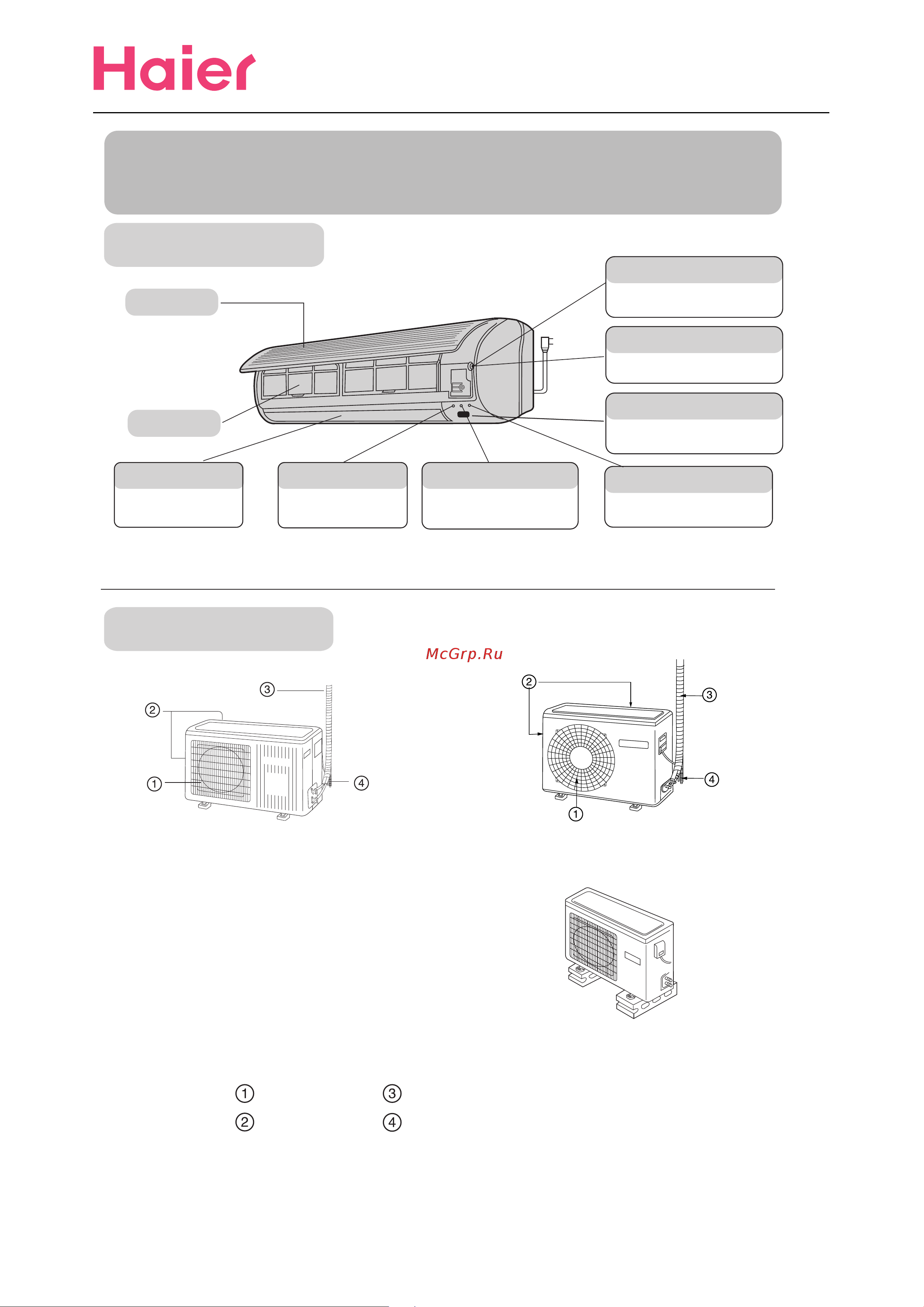

Parts and Functions
Remote signal receiver
Operation mode indicator
Timer mode indicator
Power indicator
Vertical flap
Air filter
Inlet grille
Emergency switch(manual)
Test running switch(manual)
Use remote controller to
adjust up and down air flow.
(Don't adjust it manually.)
Lights up when unit starts. Lights up when Timer operation
is selected.
Lights up during compressor
running.
A beeping sound is generated when
received.
a signal from remote controller is
Used when remote controller is lost or
defective. Unit will run temporarily.
Used only for test running in cooling
Don't use it in normal operation.
when room temp. is below 16
o
C.
HSU-22C13
HSU-24C13
Indoor Unit
Outdoor Unit
CONNECTING PIPING AND ELECTRICAL WIRING
DRAIN HOSE
OUTLET
INLET
Actual inlet grille may vary from the one shown in the manual according to the product purchased.
12
