The enclosed accessories of the conditioner are:

The air-conditioner is better installed in shadow or in a place with short

period of sunshine. In case the air-conditioner is installed at the point

exposed directly to the sunshine, it should be protected from the direct

sunlight as possible in order to avoid the long time of direct sunlight

otherwise its performance will be lowered. (As illustrated in Fig. 1).

2. For the convenience of operation, it is recommended that air-conditioner

installed at least at the height of 760-1300 mm above the floor and no obstacles

before it for a free airflo

The shutters at both sides and the top of air-conditioner should be

protruded outdoors free from being blocked by wall, windo

w, etc.

The back of air-conditioner should be kept over 500mm from the

obstacles (for example, wall, etc.) (As illustrated in Fig. 2).

To have an efficient drainage, the back part of the air-conditioner should

be inclined downward by 5-10mm (As illustrated in Fig. 3).

Selection of the installation position

Installation Guide

Name

Figure

Quantity

Outlet pipe fitting

Sealed gasket

Screw

Manual

cover

support

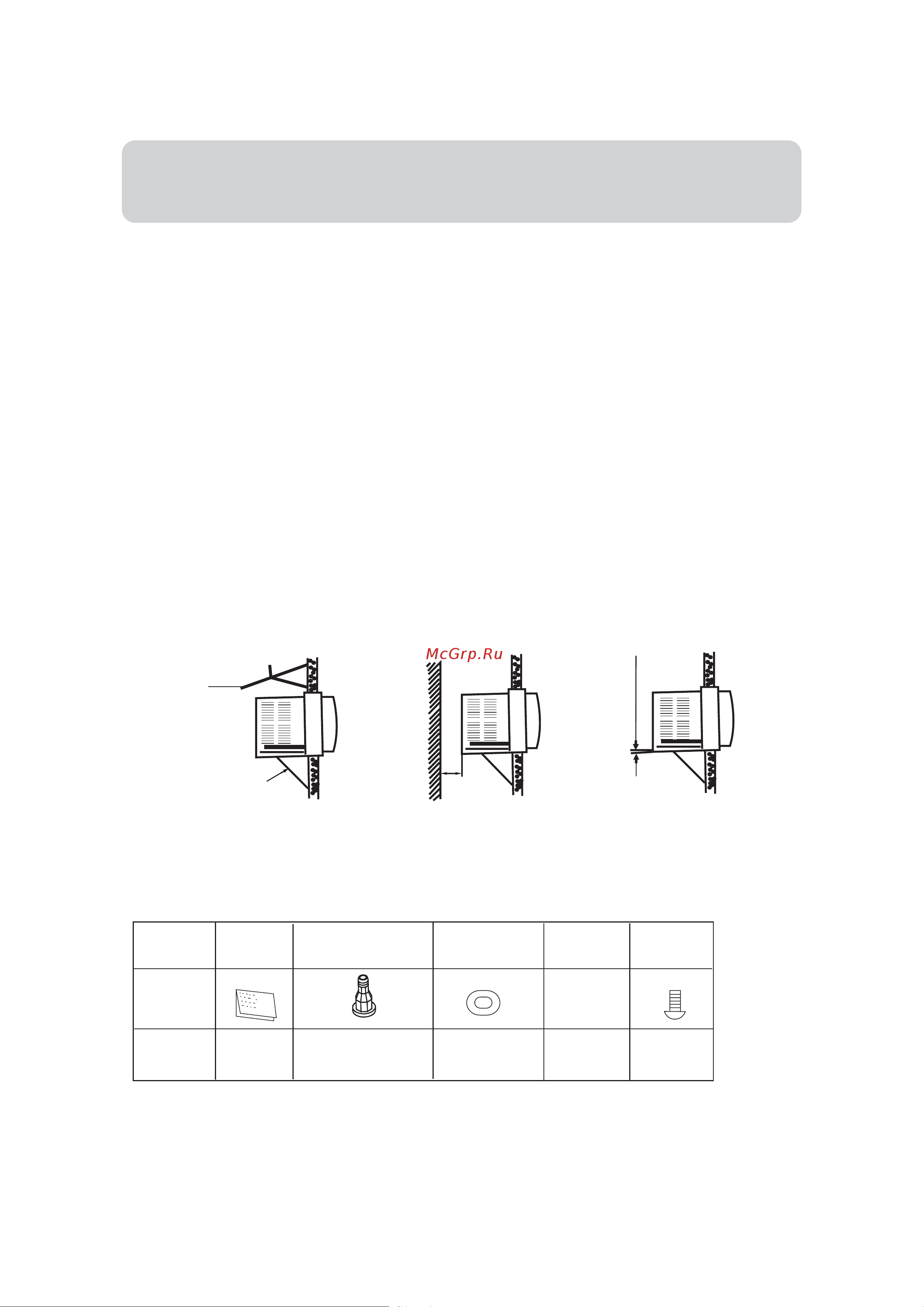

fig.1

>500mm

01-

fig.2 fig.3
