INSTALL THE AIR CONDITIONER

IN THE WINDOW

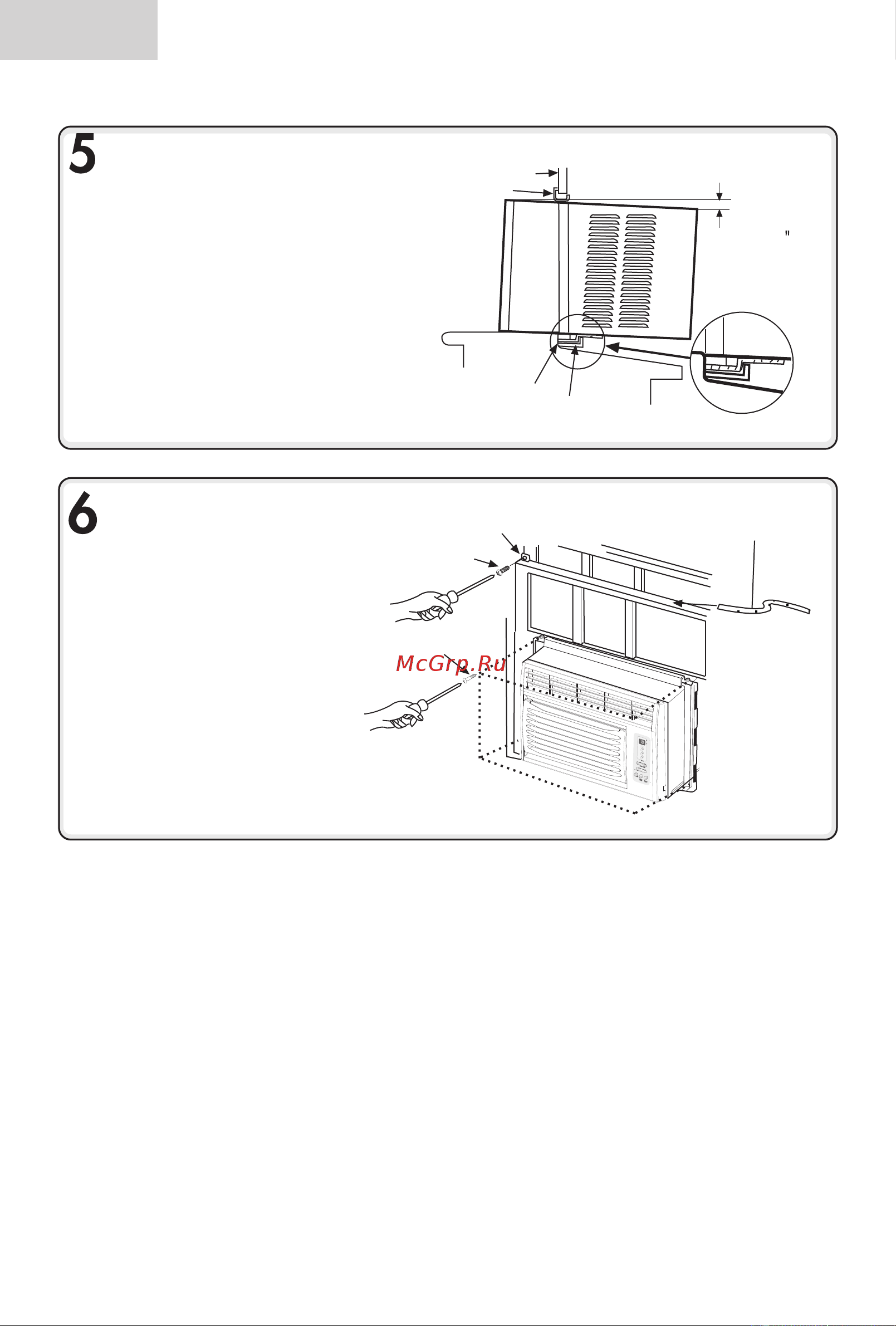

Carefully lift the air conditioner and slide it into the open

window. Make sure the bottom guide of the air conditioner

drops into the notches of the basepan angle.

While steadying the air conditioner ,carefully bring the

window sash down behind the upper guide of the air

conditioner.

WINDOW FRAME

UPPER GUIDE

BOTTOM GUIDE

BASEPAN ANGLE

ABOUT 1/4

INSTALL THE SEAL GASKET

AND SASH LOCK

Extend the side curtains to fill the

window opening using 4 wood screws

31/32" to secure them.

Cut the seal gasket to the window

width. Stuff the sash seal between the

glass and the window to prevent air

and insects from getting into the room.

Fasten the basepan angle, using a

short screw13/32".

BASEPAN ANGLE

WINDOW SEAL GASKET

SHORT SCREW13/32"

WOOD SCREW31/32"
