Haier WP-18CK03 [4/18] Parts and functions
![Haier WP-18CK03 [4/18] Parts and functions](/views2/1826003/page4/bg4.png)
2

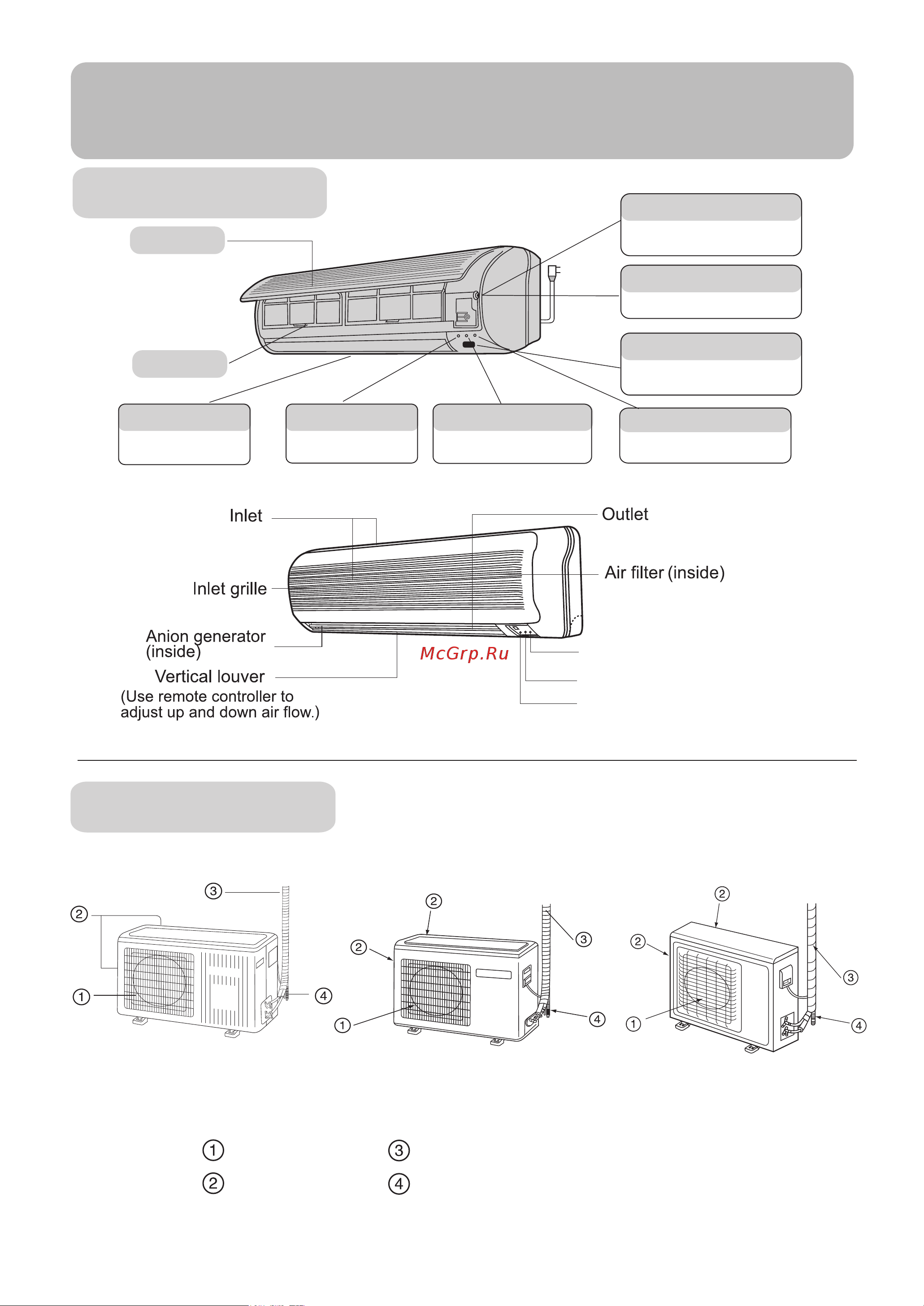

Parts and Functions
Indoor Unit
Inlet grille
Air filter
Vertical flap
Power indicator
Timer mode indicator
Operation mode indicator
Remote signal receiver
Emergency switch(manual)
Test running switch(manual)
Use remote controller to
adjust up and down air flow.
(Don't adjust it manually.)
Lights up when unit starts.
Lights up when Timer operation
is selected.
Lights up during compressor
running.
A beeping sound is generated when
a signal from remote controller is
received.
Used when remote controller is lost or
defective. Unit will run temporarily.
Used only for test running in cooling
when room temp. is below 16
o
C.
Don't use it in normal operation.
WP-09LD03
WP-12LD03
WP-18CK03
OUTLET
INLET
CONNECTING PIPING AND ELECTRICAL WIRING
DRAIN HOSE
Outdoor Unit
For model: WP-09LD03 WP-12LD03 WP-18CK03
For model: WP-24CD03
Running Indicator
Timer Mode Indicator
Power Indicator
WP-24CD03
