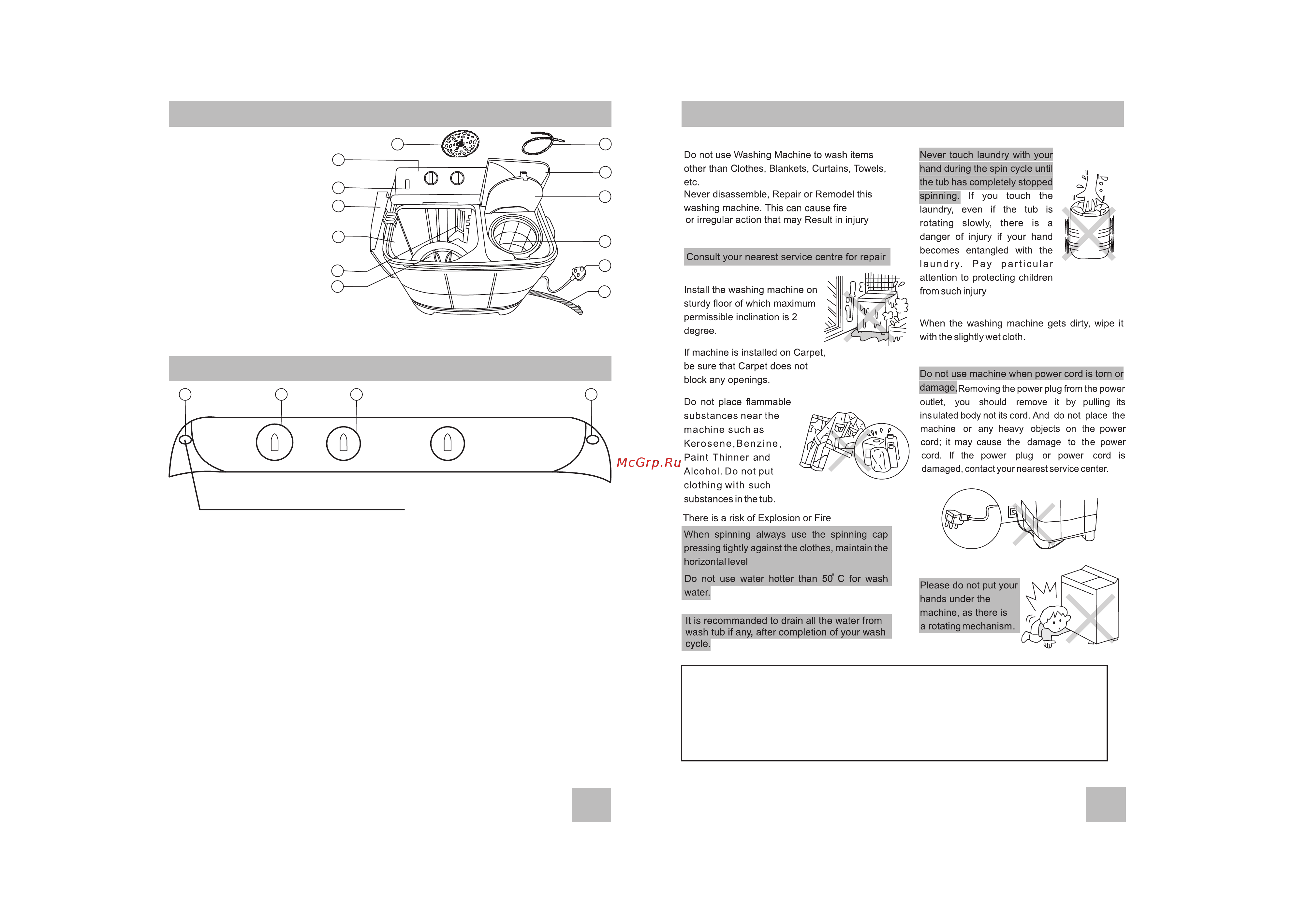

1. Control Panel of Machine
2. Inlet Hose Connector
3. Wash Tub Lid
4. Wash Tub
5. Overflow Filter
6. Quadra Pulsator
7. Spinner Lid
8. Inner Lid
9. Spinner Tub
10. Power cord
11. Drain Hose
12. Spinning Cap
13. Inlet Hose
Note : Please do not match this figure with your machine as it may be different from your model.
These are schematic diagram only.
4
NOTE :
“This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety. Children should be supervised to ensure that they do not play
with the appliance.”
Description of Parts
Description of Control Panel
Safety Precautions
1. Water Inlet : This is used to direct water supply to wash tub for washing
or spin tub for spin shower.
2. Wash Timer : This timer is used for WASH operations.
A) Wash :- You can select any Wash time up to 15min.
by setting the time knob between 0~15 min.
B) Wash/Rinse :- You can select any Wash/Rinse time upto 15 min.
If you want Wash/Rinse time for shorter duration turn the knob upto 10 min.
position and then turn it back to desired position.
3. Wash-Drain : Set the knob to ‘NORMAL’, ‘HEAVY’ according to kinds and
Selector quantity of the laundry.
- ‘HEAVY’, ‘NORMAL’ for wash program.
- Select DRAIN for draining the water from the wash tub.
4. Spin Timer : This timer is used to select your desired length of time to spin laundry by
using 5 minutes timer. (if you want to set the timer to 2 min. or less, turn the
selector up to the 5 min. position, and then turn it back to the desired
position.
Note : Wash Cycle do not operate when knob is at "DRAIN" position.
Note : Do not rotate the knobs more then prescribed limits. This may damage the timers.
1 2 3 1
WATER INLET MOUTH FOR WASHING / SPIN RINSE
0
NORMAL
HEAVY
DRAIN
9
12
15
6
3
0
3
4
5
2
1
WASH TIMER WATER-DRAIN SELECTOR SPIN TIMER
1
12
2
3
4
5
6
7
8
10
9
11
13
