Multiwash 340 P
Взрывсхема Страница: 9

Truvox Multiwash 340 P [9/16] Pump housing

Truvox Multiwash 340 P [9/16] Pump housing

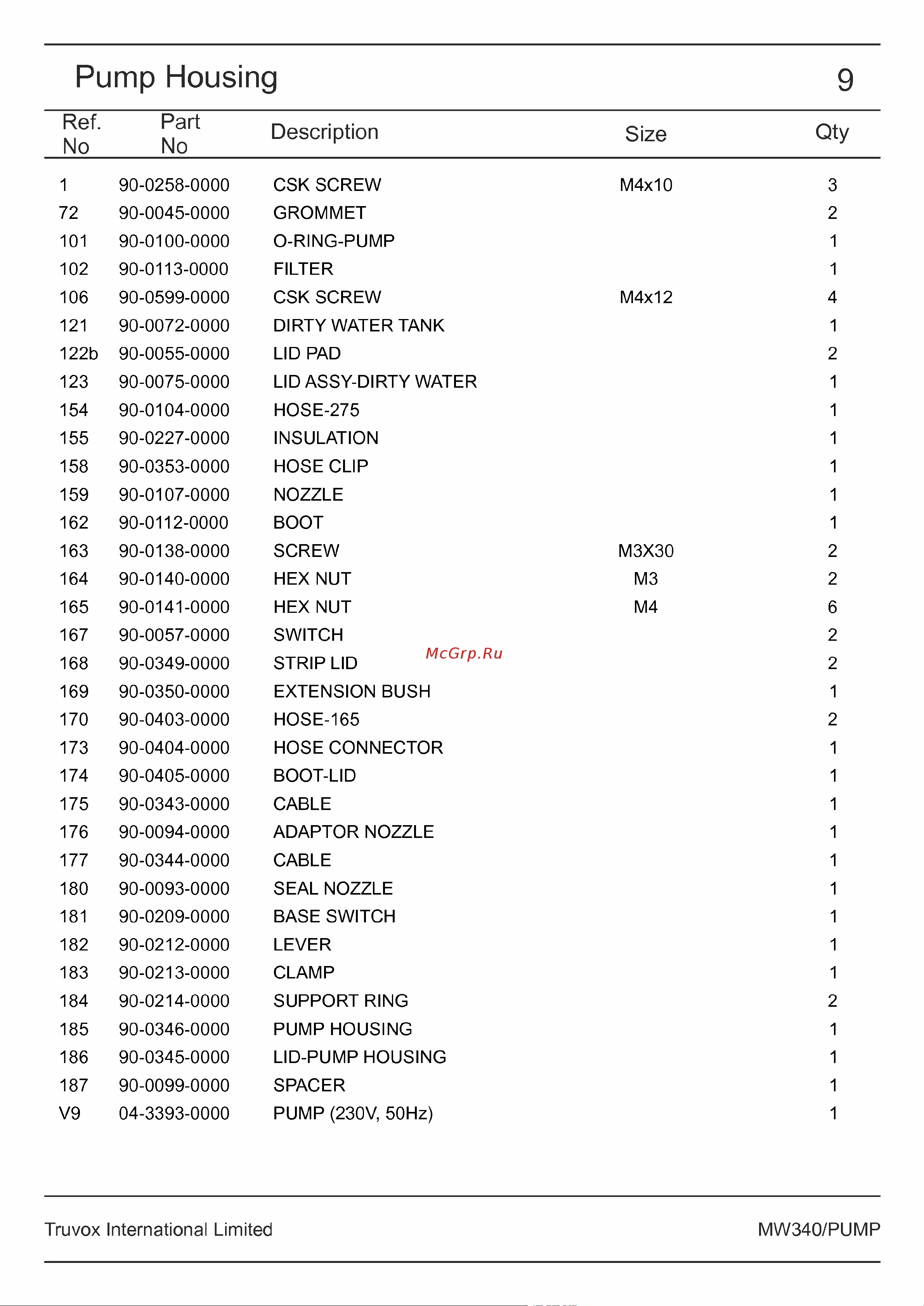

Pump Housing

9

Ref.

Part

Description

Size

Qty

No

No

1 90-0258-0000 CSKSCREW M4x10

3

72 90-0045-0000 GROMMET 2

101 90-0100-0000 O-RING-PUMP 1

102 90-0113-0000 FILTER 1

106 90-0599-0000 CSKSCREW M4x12 4

121 90-0072-0000 DIRTY WATER TANK 1

122b 90-0055-0000 LID PAD 2

123 90-0075-0000 LID ASSY-DIRTY WATER 1

154 90-0104-0000 HOSE-275 1

155 90-0227 -0000 INSULATION 1

158 90-0353-0000 HOSE CLIP 1

159 90-0107 -0000 NOZZLE 1

162 90-0112-0000 BOOT 1

163 90-0138-0000 SCREW M3X30 2

164 90-0140-0000 HEX NUT M3 2

165 90-0141-0000 HEX NUT M4

6

167 90-0057 -0000 SWITCH 2

168 90-0349-0000 STRIP LID 2

169 90-0350-0000 EXTENSION BUSH 1

170 90-0403-0000 HOSE-165 2

173 90-0404-0000 HOSE CONNECTOR 1

174 90-0405-0000 BOOT-LID 1

175 90-0343-0000 CABLE 1

176 90-0094-0000 ADAPTOR NOZZLE 1

177 90-0344-0000 CABLE 1

180 90-0093-0000 SEAL NOZZLE 1

181 90-0209-0000 BASE SWITCH 1

182 90-0212-0000 LEVER 1

183 90-0213-0000 CLAMP 1

184 90-0214-0000 SUPPORT RING 2

185 90-0346-0000 PUMP HOUSING 1

186 90-0345-0000 LID-PUMP HOUSING 1

187 90-0099-0000 SPACER 1

V9 04-3393-0000 PUMP (230V, 50Hz) 1
