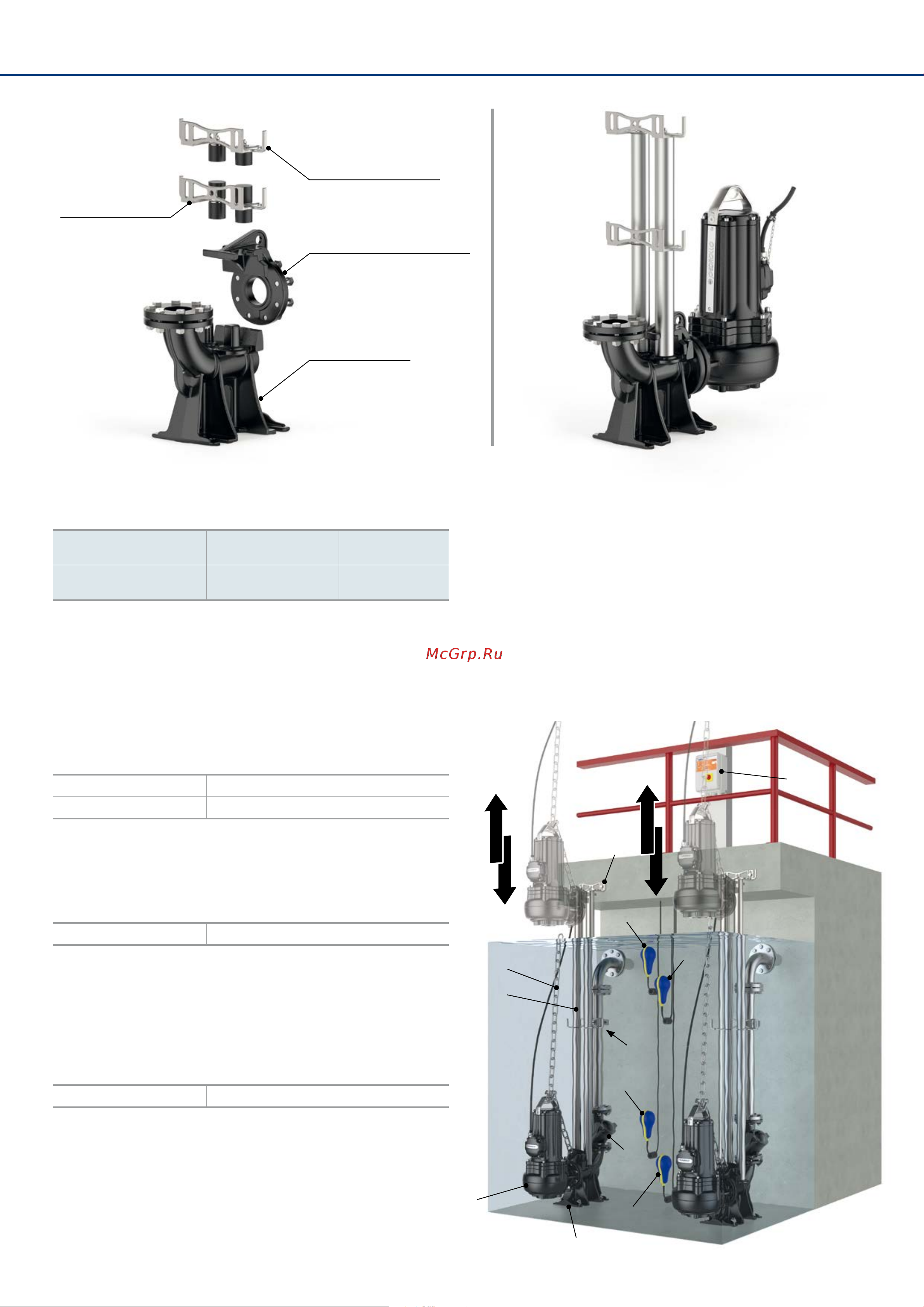

BASE PEDESTAL KIT VXC4 – MC4
VERTICAL DELIVERY VERSION
WITH 2" GUIDE TUBES
For VXC4 Cod. ASSPVXC4V DN 4”
For MC4 Cod. ASSPMC4V DN 3”
Kit consisting of:
– footing connection complete with counterange
– slide guide with screws and seals
–support for the guide tubes
STANDARD INSTALLATION
1. Pump
2. Footing connection
3. Guide tubes
4. Support for the guide
tubes
5. Intermediate support for
the guide tubes
6. Lifting chain
7. Control box
8. Stop oat switch
9. Starting oat switch
10. Starting oat switch
auxiliary pump
11. Alarm oat switch
12. Non-return valve
Support for the guide tubes
Footing connection
(To be ordered separately
separately)
Intermediate support
(Also to be ordered separately)
Slide guide
INTERMEDIATE SUPPORT (Can be ordered separately)
Cod. 859SV349INTFA For guide tubes Ø 2"
GUIDE TUBES (AISI 304 stainless steel)
Cod. 54SARTG006 Ø 2”
In order to ensure stability, insert the intermediate support
every three metres of guide tube (recommended)
Maximum length of the tube plank: 6 metres
SLIDE GUIDE (Also to be ordered separately)
For VXC4 Cod. ASSFL100
For MC4 Cod. ASSFL080
Complete with screws and seals
50 Hz | BASE PEDESTAL KIT VXC4 – MC4
