Pedrollo TOP MULTI 2-EVO [3/4] Top multi evo

TOP MULTI-EVO

1 14

8 BEARINGS 6202 ZZ - C3 / 6201 ZZ

9 CAPACITOR

Capacitance

(220-230 V or 240 V) (110 V)

12.5 μF 450 VL 25 μF - 250 VL

10 ELECTRIC MOTOR

TOP MULTI-EVO: single-phase 220-230 V - 50 Hz

with thermal overload protector incorporated into the winding.

– Insulation: class F

– Protection: IP X8

POWER CABLE

“H07 RN-F” with Schuko plug

Standard length 10 met

res

12 FLOAT SWITCH

13 HOSE CONNECTOR WITH RING NUT

Ø 35 mm hose connection

PIPE COUPLING

Threaded 1¼” in compliance with ISO 228/1, complete with

ap-check valve

(Included in the equipment)

14 ANTI-VIBRATION SUPPORTS

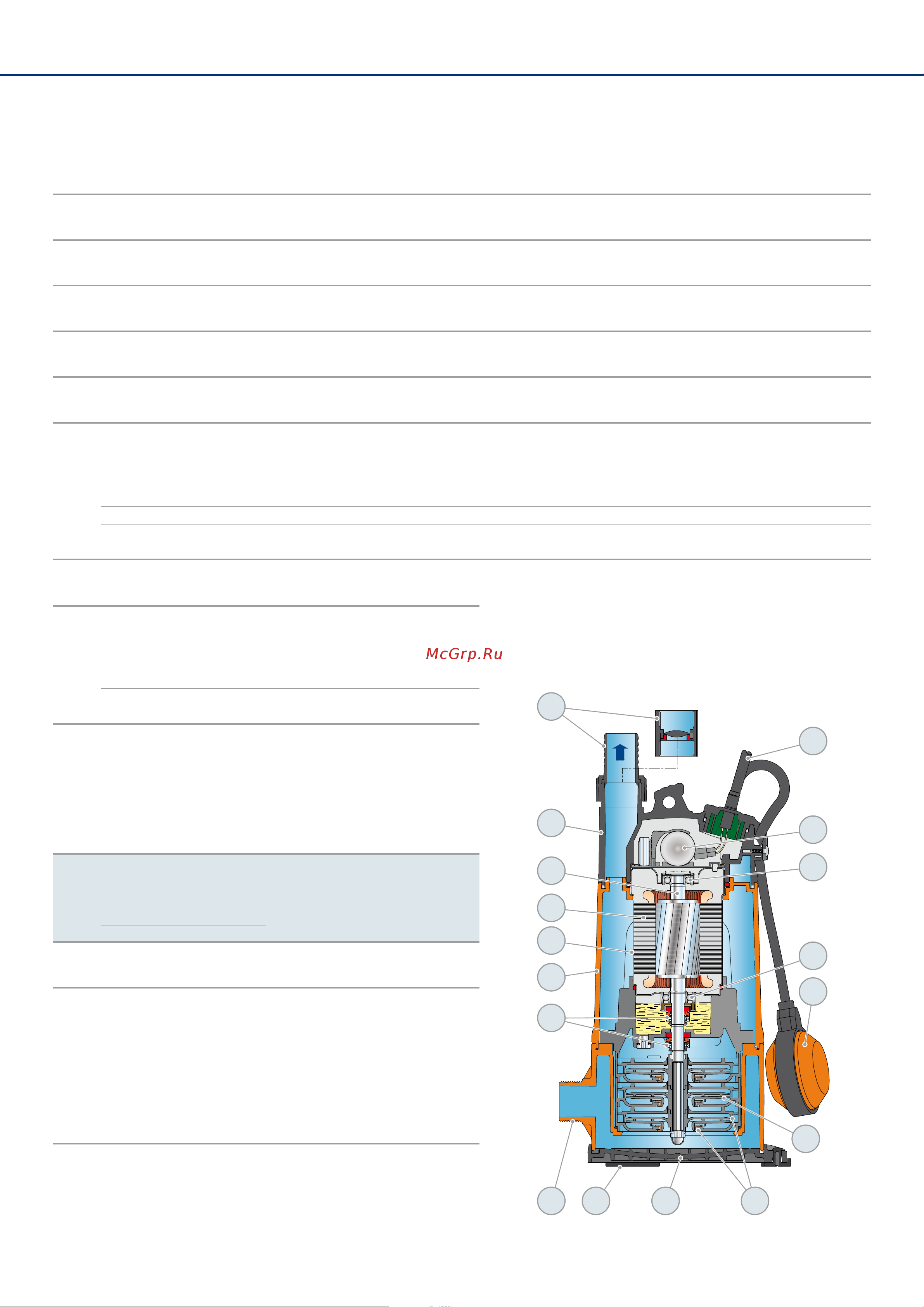

POS. COMPONENT CONSTRUCTION CHARACTERISTICS

1 DELIVERY BODY

AND SUCTION BODY

Glass bre reinforced technopolymer complete with threaded delivery port in compliance with ISO 228/1

2 PUMP BODY AND BASE Glass bre reinforced technopolymer

3 MOTOR SLEEVE Stainless steel AISI 304

4 IMPELLERS Noryl FE1520PW

5 DIFFUSERS Noryl complete with anti-wear ring

6 MOTOR SHAFT Stainless steel EN 10088-3 - 1.4104

7 TWO MECHANICAL SEALS SEPARATED BY AN OIL CHAMBER

Seal Shaft Position Materials

Model Diameter Stationary ring Rotational ring Elastomer

STA-13R Ø 13 mm Motor side Ceramic Graphite NBR

STA-12R SG Ø 12 mm Pump side Silicon carbide Graphite NBR
