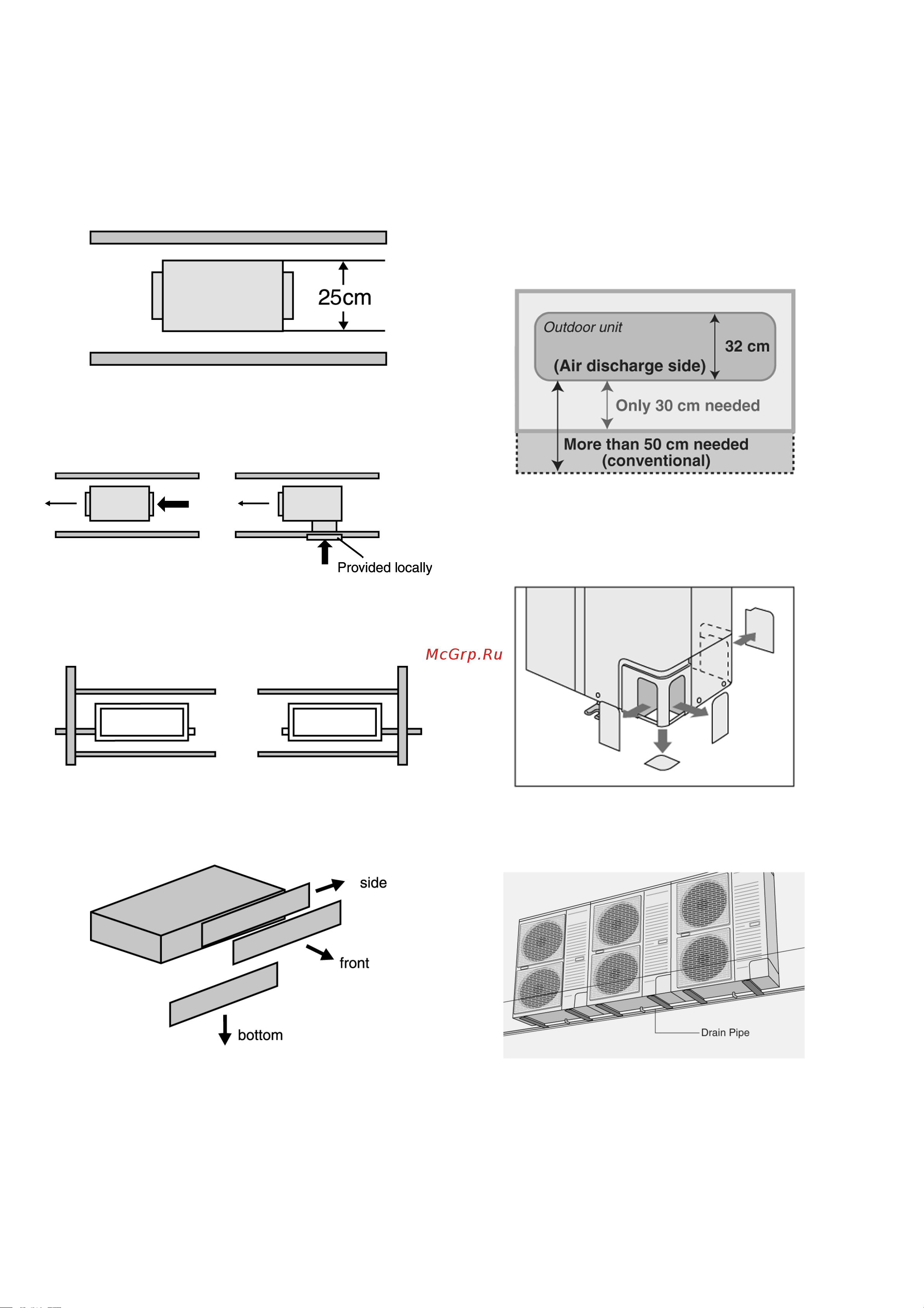

2.1. Hide-away type
2.1.1. Compact design
• The height has been reduced to 25 cm, the equipment can
be installed in limited spaces.
2.1.2. Versatile installation
• The indoor unit is designed in order that air will also enter
from below, for easier installation under different conditions.
• The equipment has two drain outlets on the right and left
side for adoption to the installation conditions in the
building.
2.1.3. Easy maintenance
• Equipped with a filter as standard. The filter can be
removed in three directions for easier maintenance.
2.2. Outdoor unit
2.2.1. Flexible installation in smaller
spaces
• Space-saving outdoor unit with the improvement of the
outdoor unit fan makes it possible to install the outdoor unit
into a smaller space where the conventional model cannot
be installed.
• Long pipe design with a maximum piping length of 50m.
• Additional charging of refrigerant are not required for 30m
of pipe length.
• Flexible 4-way piping.
• Centralized drain method gather multiple outdoor units’
drain pipes into a single drain pipe to make installation
easier and also improve appearance.
• Side-by-side continuous installation is possible even for
outdoor units with different capacities.
2 FEATURES
4
