Panasonic CS-F34DD3E5 [110/148] Cs f28dd3e5 cu b28dbe8

13.4.1.3. CS-F28DD3E5 CU-B28DBE8

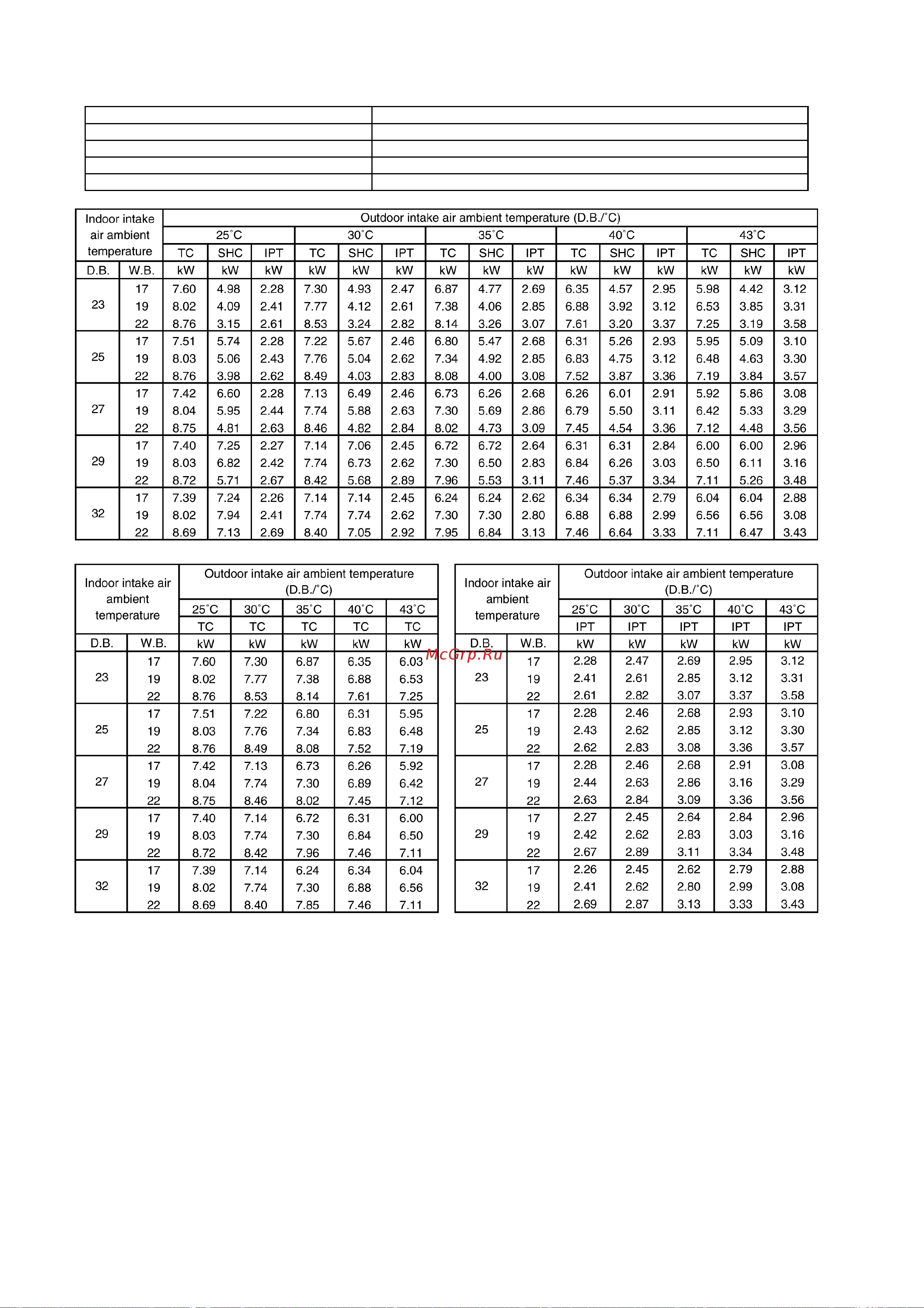

Model Cooling capacities are based on conditions

CS-F28DD3E5 CU-B28DBE8 3 phase, 50Hz, 400V

Cooling capacity Indoor temp. 27°C D.B. 19°C W.B.

7.3 kW Outdoor temp. 35°C D.B.

Standard air volume 22 m

/min

TC : Cooling Capacity

SHC : Sensible Heat Capacity

IPT : Cooling Power Consumption

110
